Description
Operatory System
|
Part number
|
Description
|
|---|---|
|
A9150012 |

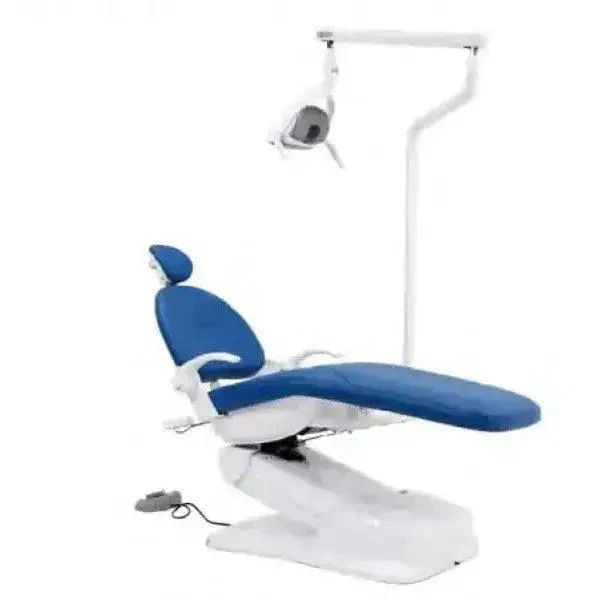

AJ15 Ortho Chair |
Standard Features
AJ15 hydraulic chair with 3 programmable positions,
Double articulating headrest,
Swing up/down aluminium armrest,
Narrow backrest, upgraded fiber leather,
Cast iron chair frame,
Steel backrest stand,
Steel base plate,
60 degrees seat rotation, chair safety switch,
- Post mount LED light with sensor control
One touchpad, Foot control
- 3 level intensity adjustments
Package includes
|
Part number
|
Description
|
|---|---|
|
A091502 |
AJ15 chair |
|
A0604601 |
Post mount Whale LED light with 40" light post and chair adapter |
Options
|
Part number
|
Description
|
|---|---|
|
A121532 |
HP Fiber optic system with 1 tubing (6 pin) |
|
A121533 |
HP Fiber optic system with 2 tubings (6 pin) |
|
A120502 |
Monitor bracket for Orthodontic Mobile Cart |
|
A080103 |
D3 Doctor stool |
|
A121969 |
AJ15 Ponytail headrest with bracket |
|
Packing Dimensions (L*W*H)
|
|
Weight
|
|---|---|---|
|
Chair |
47.6*30.5*31.3" |
378 lbs |
|
Upholstery |
50.4*25*8.9" |
26.8 lbs |
|
Dental Light |
31.1 18.1*7.1" |
17 lbs |
|
Post |
40.9*2.7*2.7" |
7 lbs |

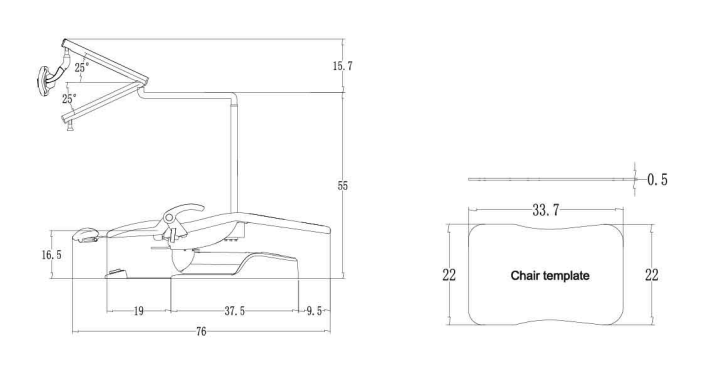

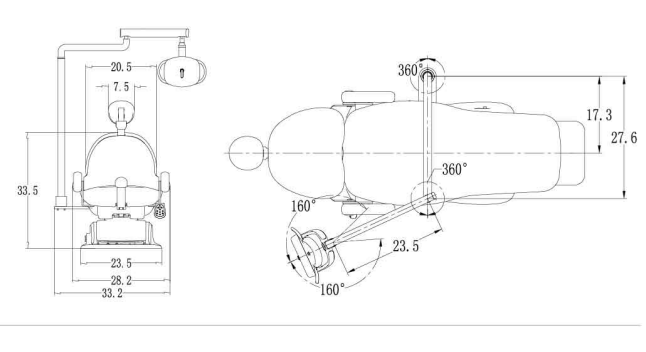

Dimensions
