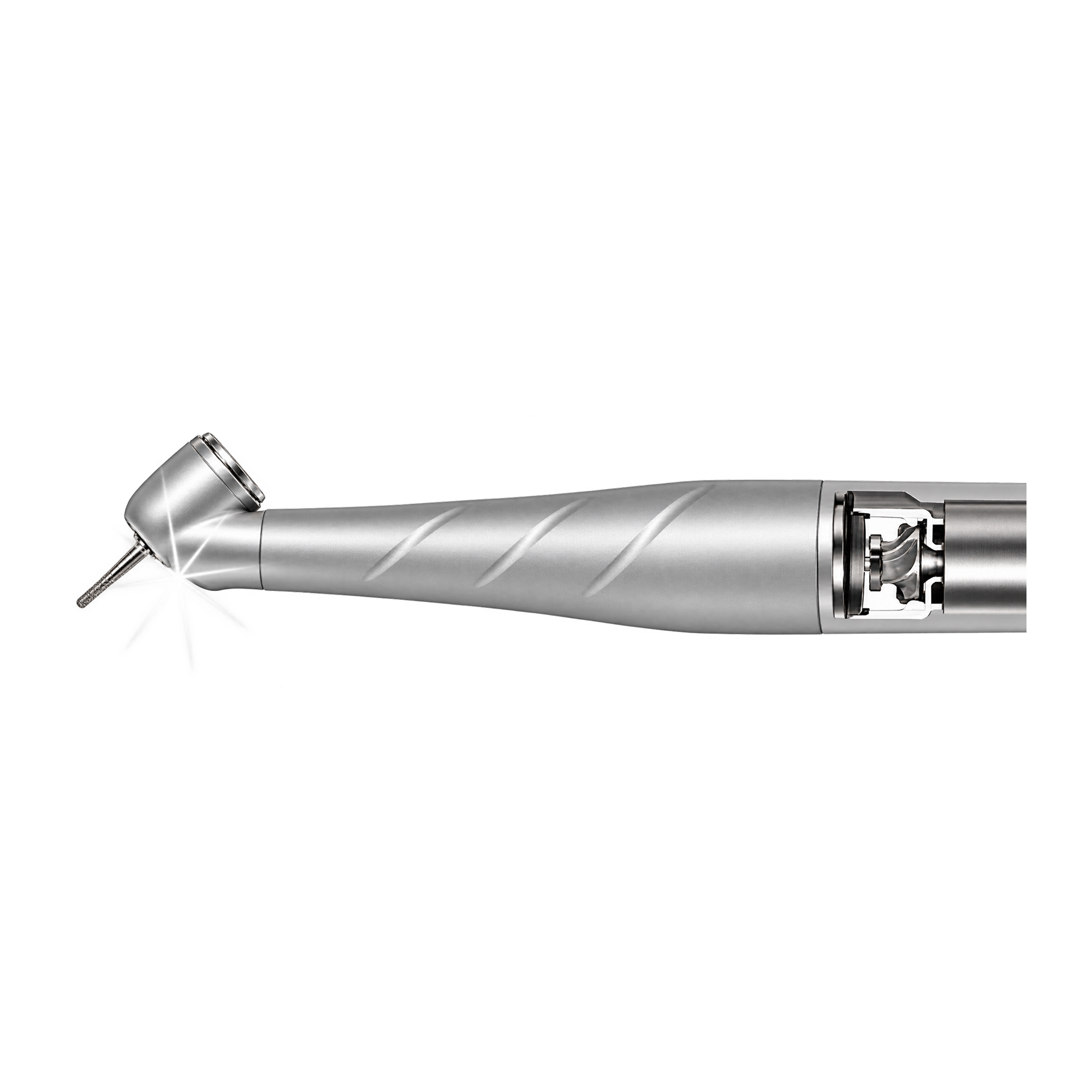

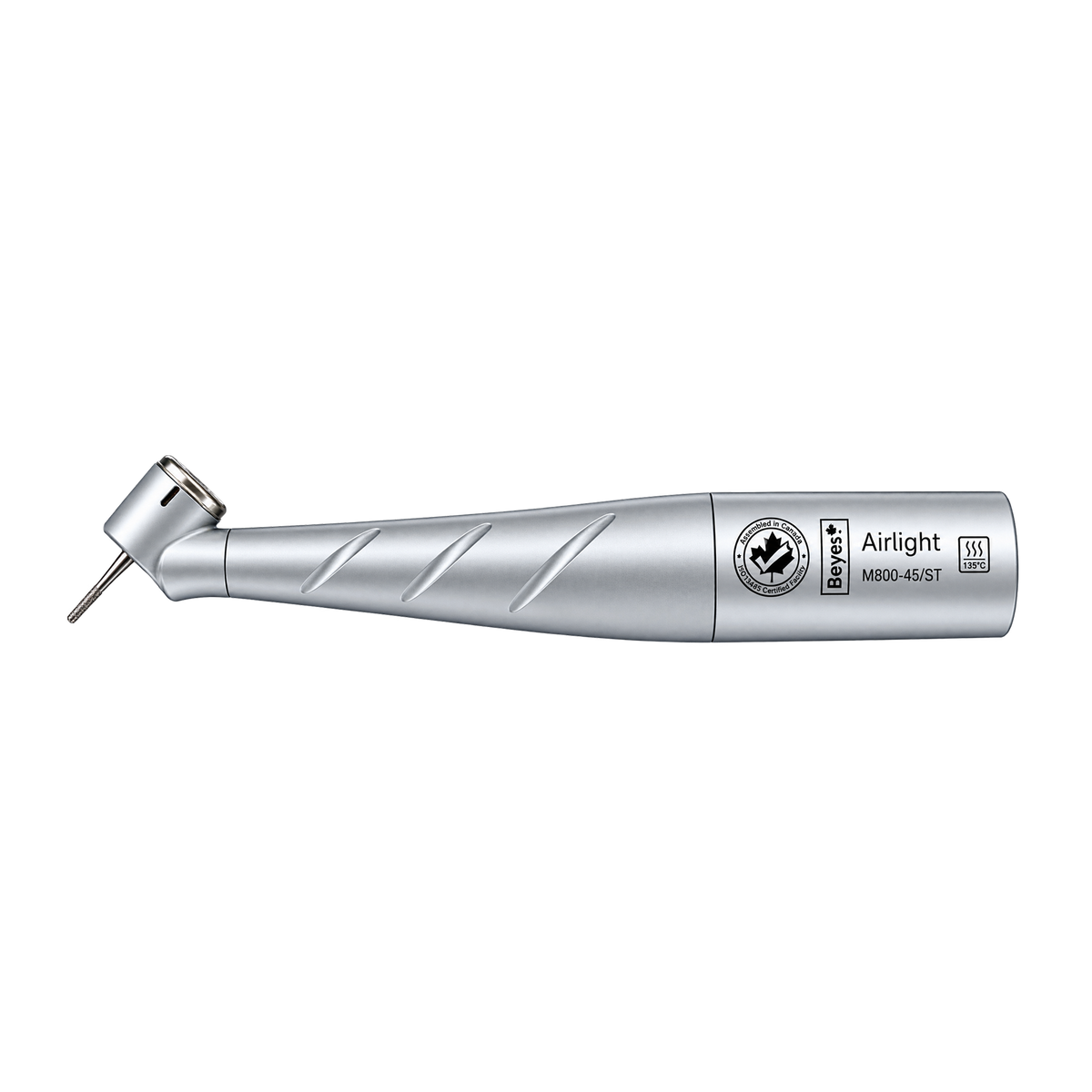

AirLight M800 Surgical 45

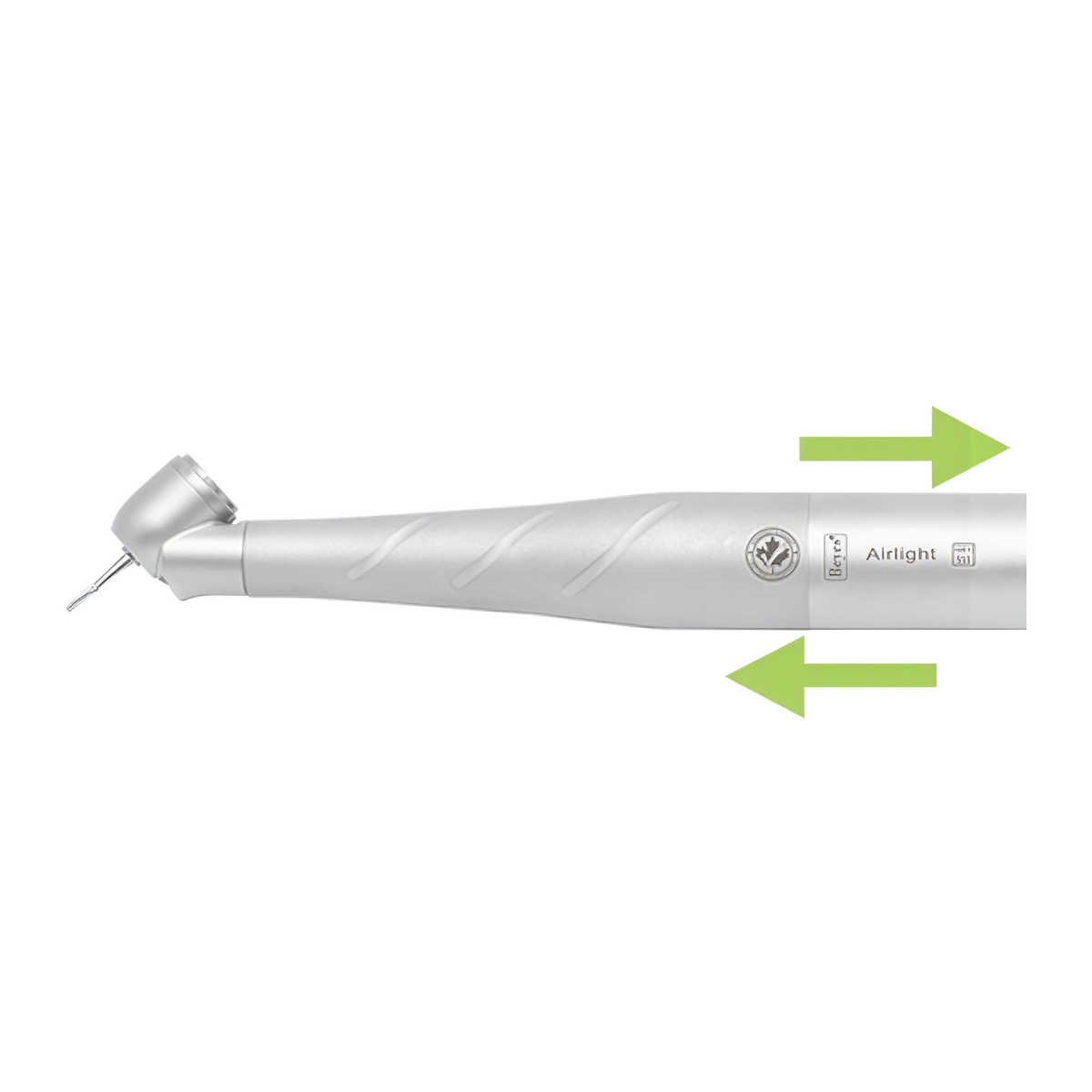

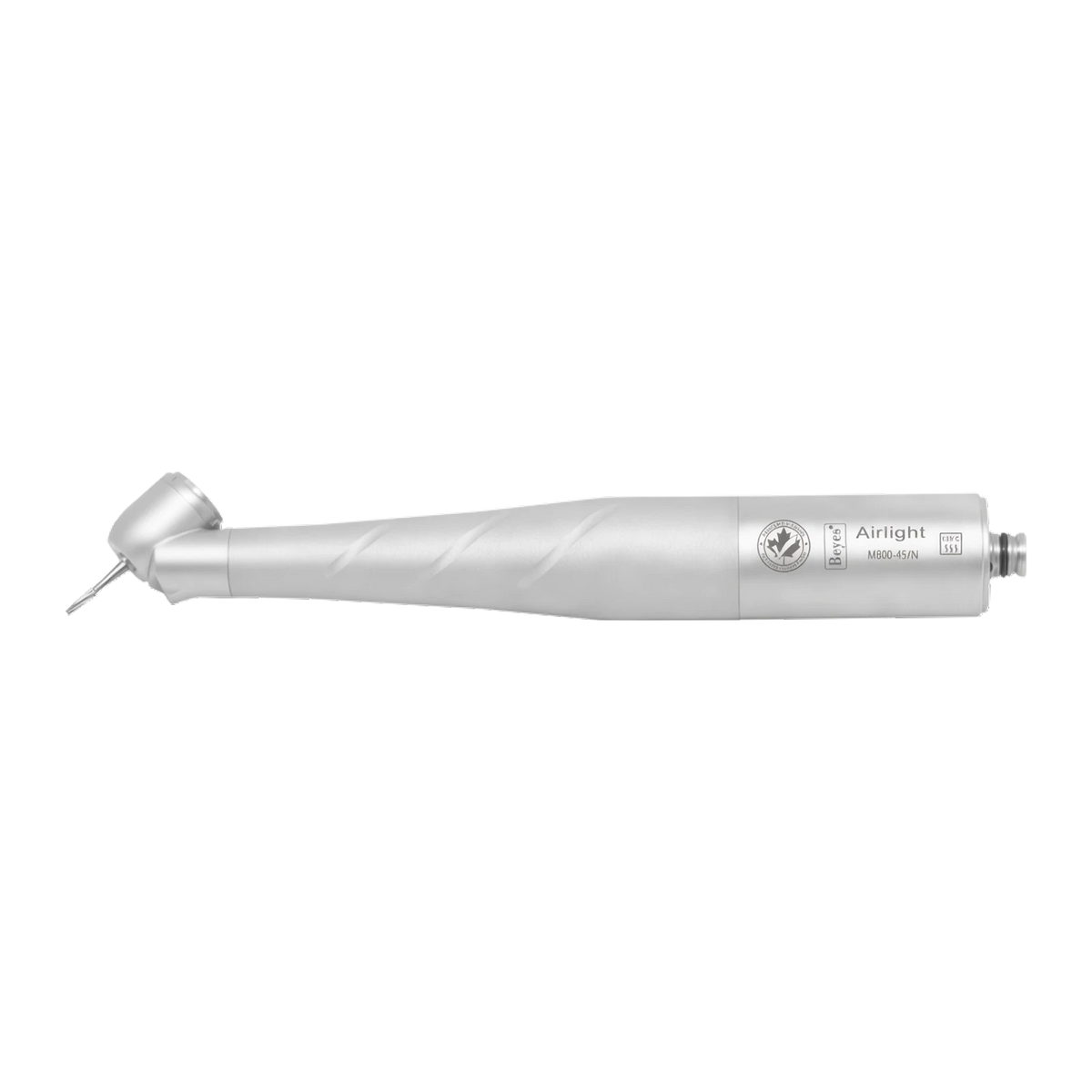

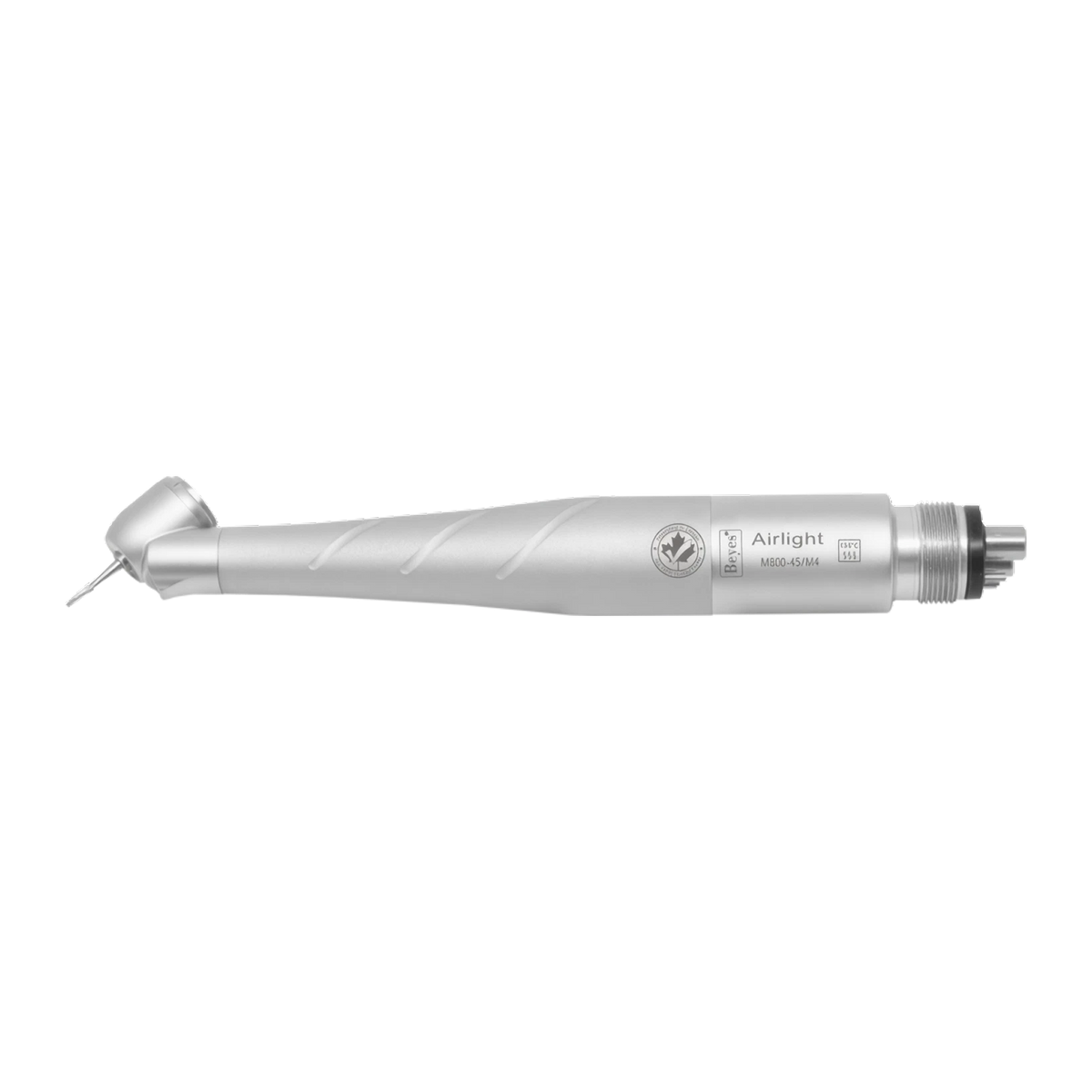

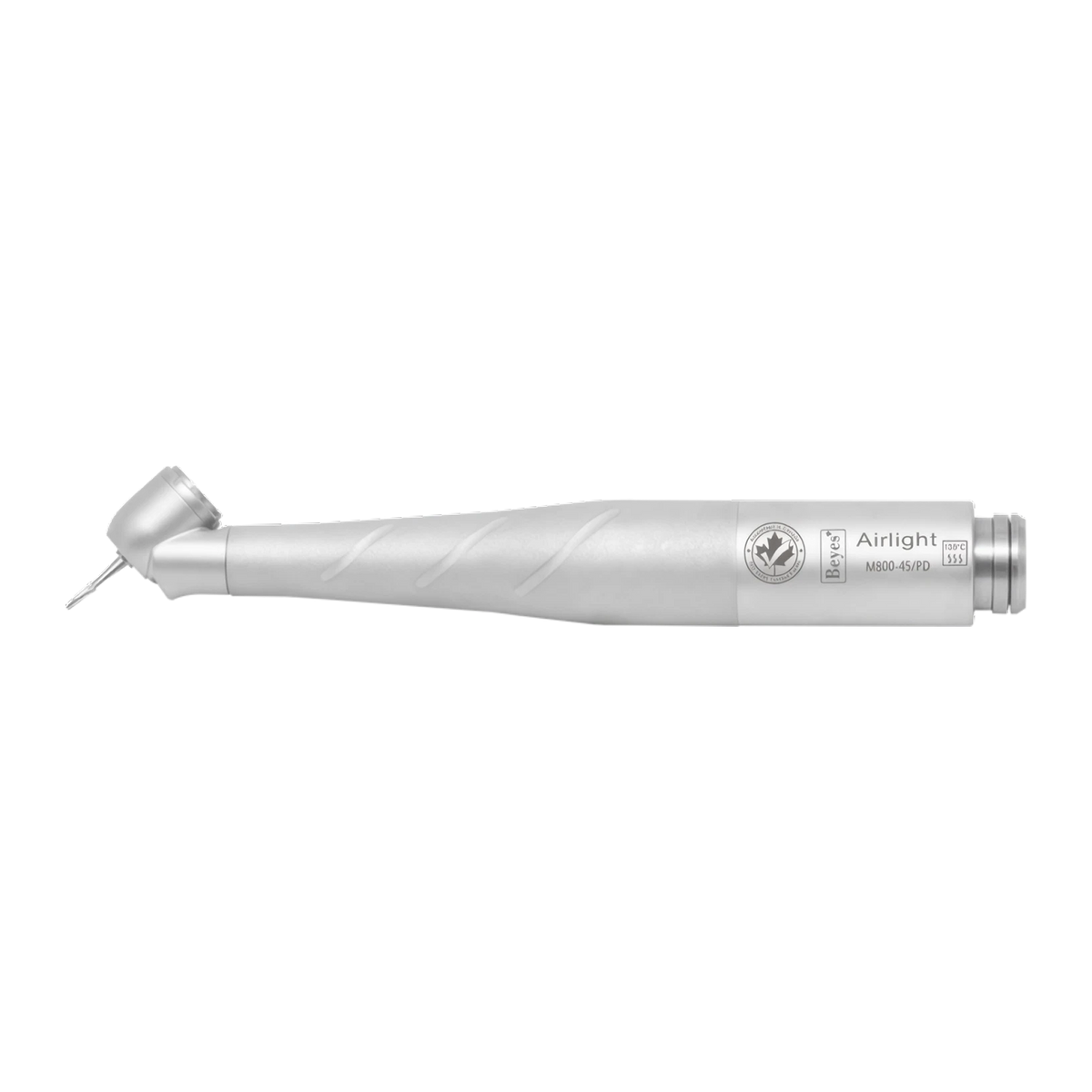

The Airlight version of the surgical 45° handpiece carries over the same 45° head, rear exhaust, and stream-water design as the M200 Surgical 45°, but adds Direct-LED illumination through the same built-in generator concept as the rest of the Airlight line, a triple-jet spray, and more cutting power. It's available across seven backend connections: HP3037 (M800-45/K, KaVo®), HP3044 (M800-45/N, NSK®), HP3048 (M800-45/M4, Midwest® 4-hole), HP3052 (M800-45/B2, Borden® 2-hole), HP3055 (M800-45/ST, Star®), HP6038 (M800-45/PD, Beyes® PD), and HP3023 (M800-45/W, W&H®). All variants share a 10.8mm by 13.0mm head, 40–60 PSI air pressure, 25 watts of power output, 410,000 RPM free speed, and Direct-LED lighting at 5,500K and 25,500 LUX, accepting the same FG burs through a push-button chuck.

$612.00 USD

$612.00 USD

Key Features

The well-designed and precisely-manufactured AirLight M800X delivers an extraordinary torque of 35W, ensuring accurate cutting. It is equipped with specially designed X-Ball Bearings for quieter sound and longer life. The handpiece also possesses instant-stop capability (IS Tech) that reduces noise and eliminates backflow. In addition to four specially-positioned water ports guaranteeing optimal cooling, it has an all-new Direct-LED+ that provides a brighter and larger light pattern enabling clinicians with a clearer operative field. The AirLight M800X comes with an extended 25 Months warranty.

Accessibility

45° head design for perfect access to the molars.

Visibility

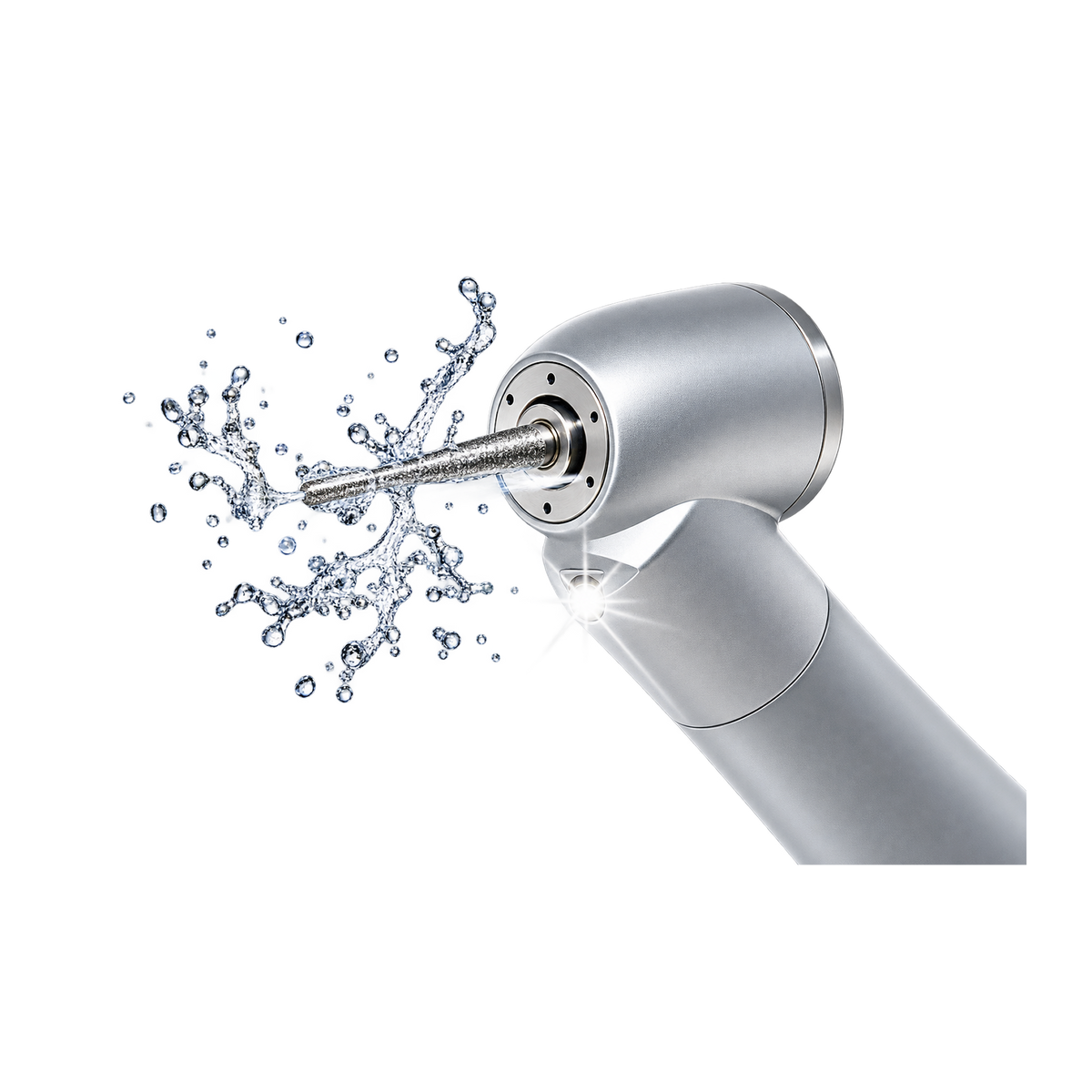

Stream water (not mist) for perfect bur cooling and visibility.

Hygiene

Rear air exhaust to prevent contamination into cutting area.

Power

IncStrong chuck holding force to prevent slippage and improve power with 25W of torque.

Key Specification

Colour temperature (K) 5,500

Brightness (LUX) 25,500

Head Size (Width x Height) 10.8mm x 13.0mm

Head Angle 45°

Drive Air Pressure (PSI) 40-60

Power (WATT) 25

Speed (RPM) 410,000

Rotary Instruments FG burs according to EN ISO 1797-1:1995

Ø / max. length (MM) 1.6 / 25

Chuck Type Push Button

Water Port Triple Water Jet
