Beyes Endo motor
The Beyes ApexPilot G3, available from All Practice Solutions, is a cordless endodontic motor with an apex locator and length-measuring function built in, so clinicians don't need to run separate equipment during root canal treatment. It automatically reverses or stops as a file approaches the apical point, and it starts on its own when a file is inserted into the canal and stops when it's withdrawn, cutting down on manual adjustments mid-procedure. The contra-angle is made from aviation-grade plastics rated for autoclaving, which removes the need for silicone sleeves typically required when pairing a motor with an apex locator. Its all-angle OLED screen stays readable even under strong operatory lighting, regardless of viewing angle.
Choose options
Key Features

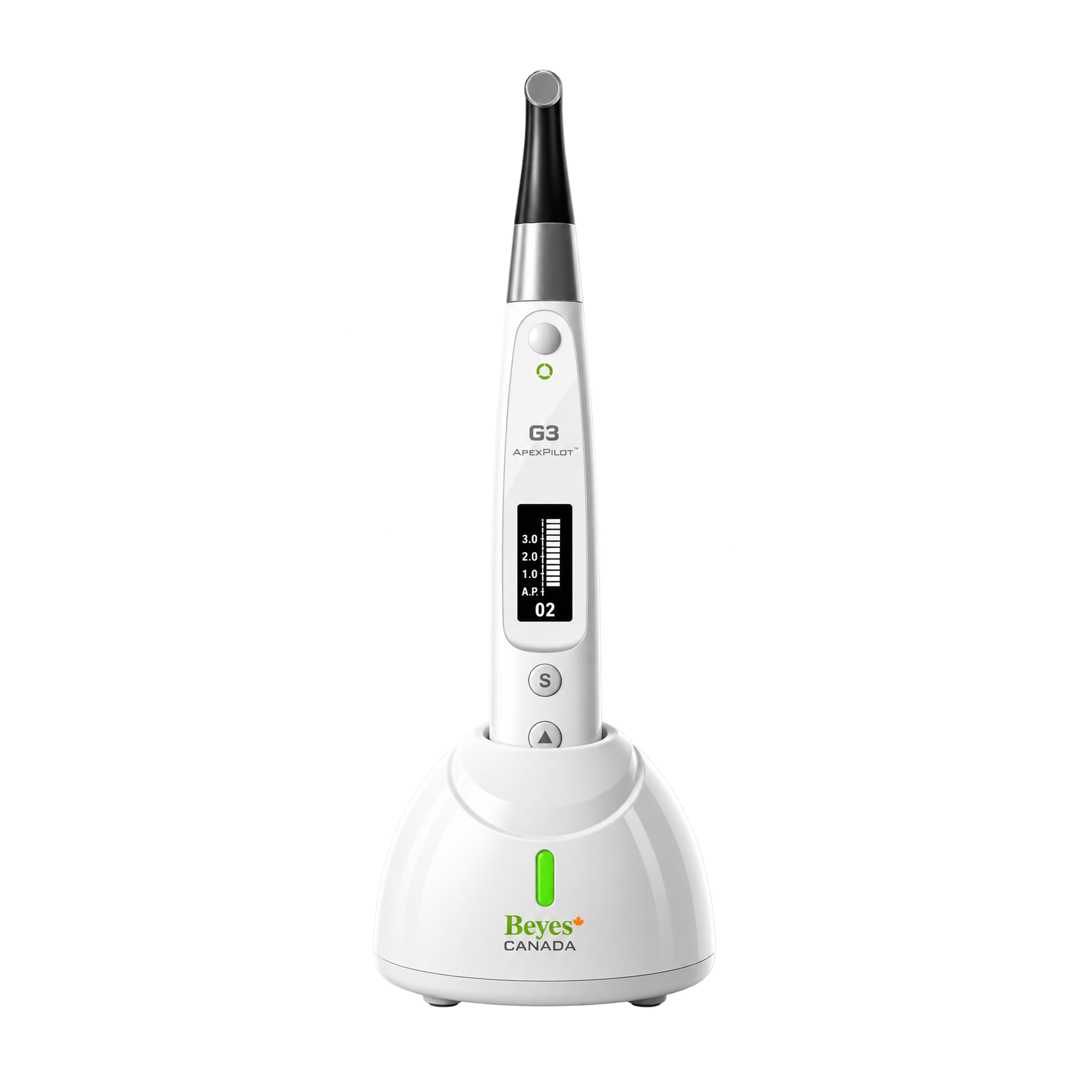

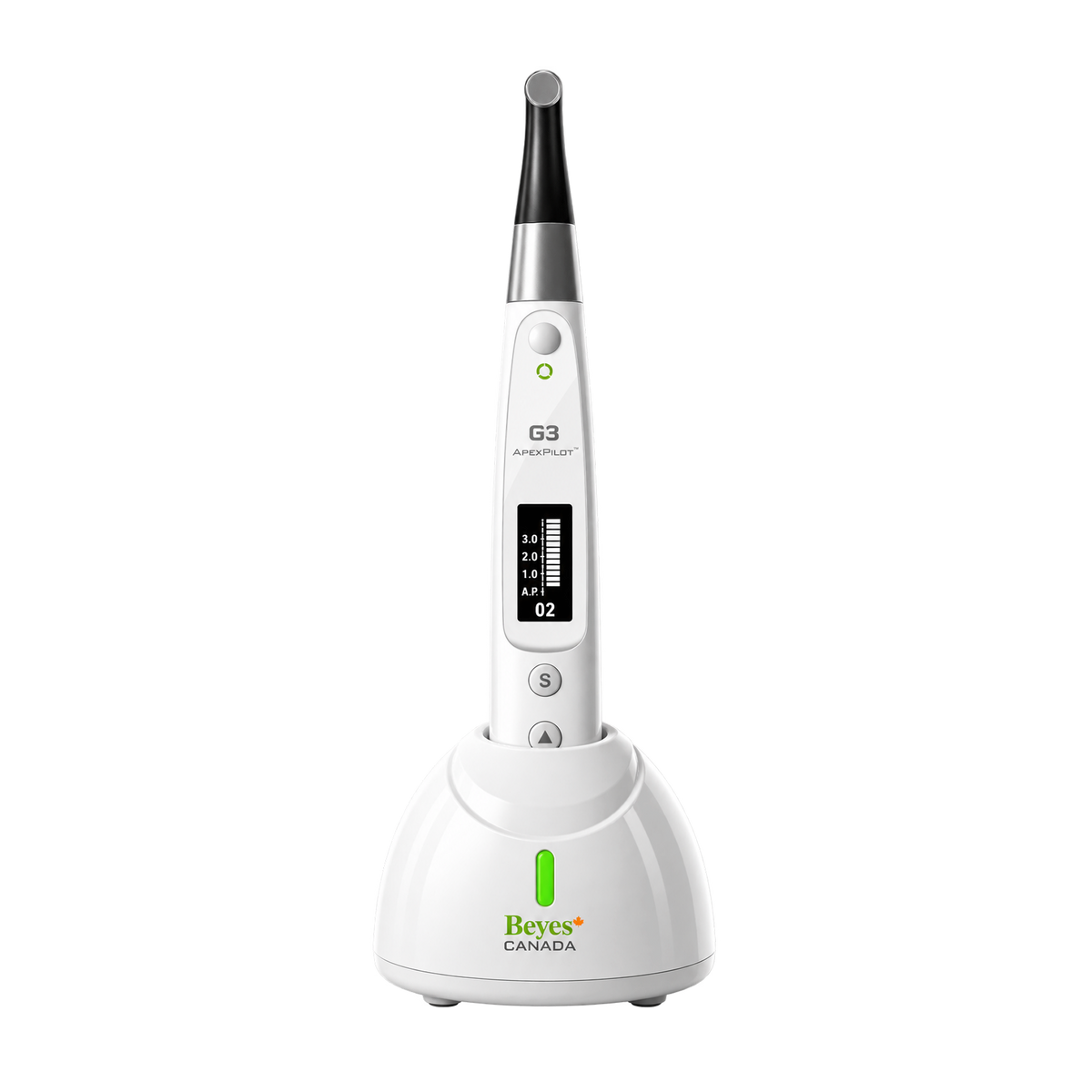

The ApexPilot G3 is a cordless and compact endodontic motor with a built-in apex locator and integrated length measuring function which makes root canal preparation safer and more efficient. The file position will be shown in an easy to read OLED screen and this endodontic motor will automatically reverse or stop as soon as the apical point is reached.

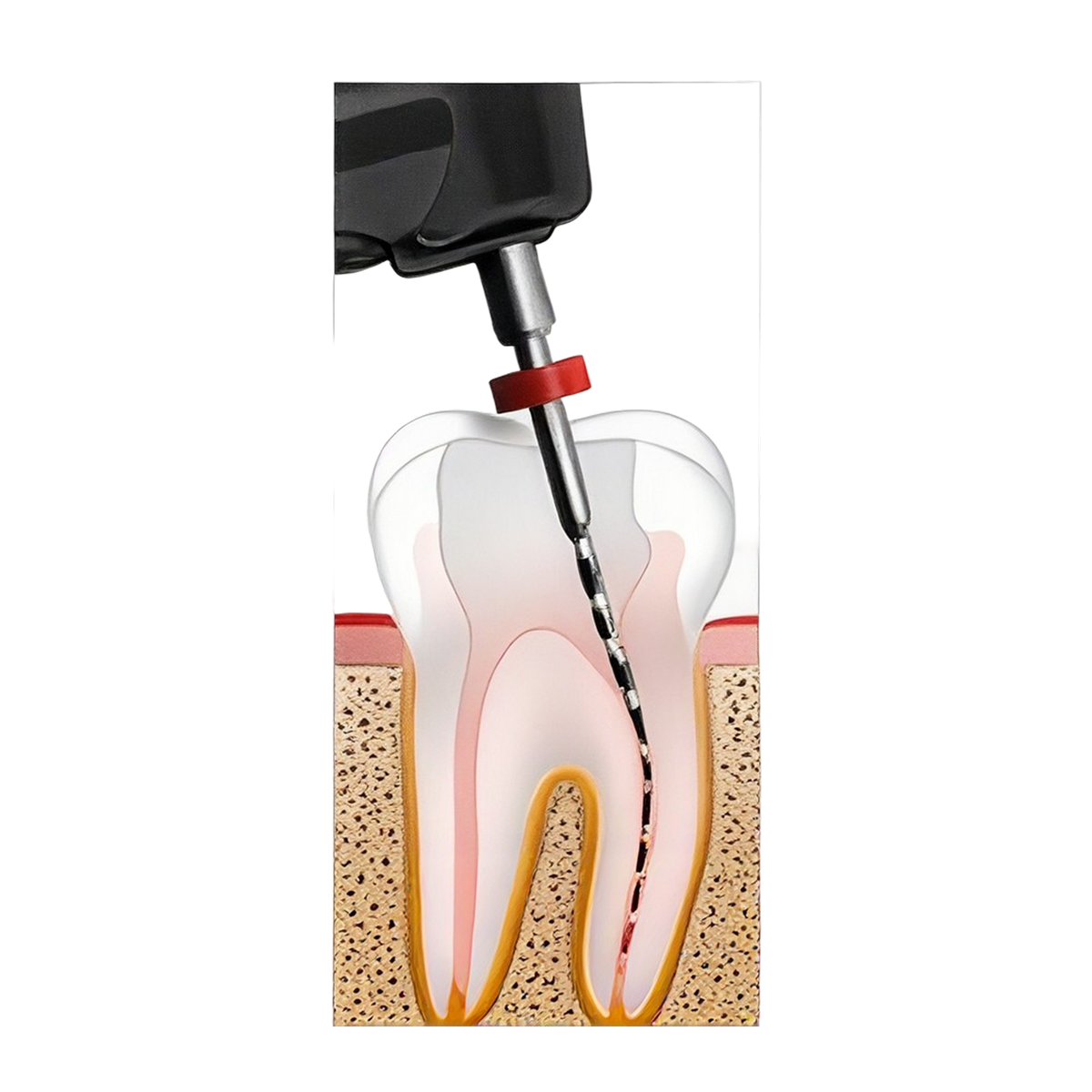

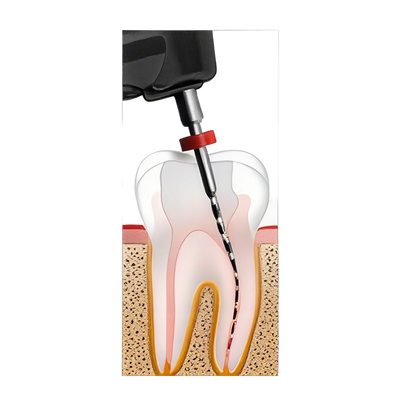

Integrated Length Determination

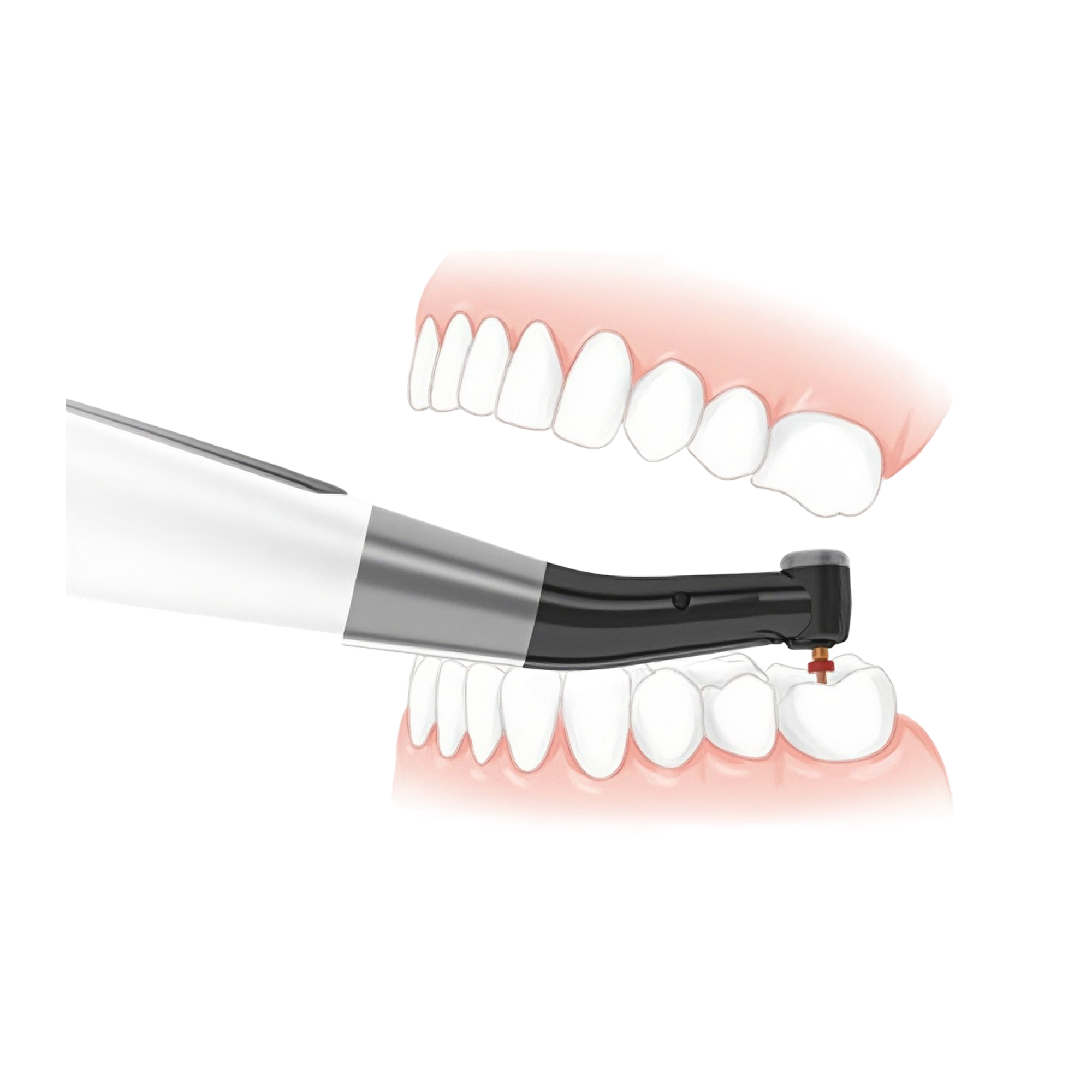

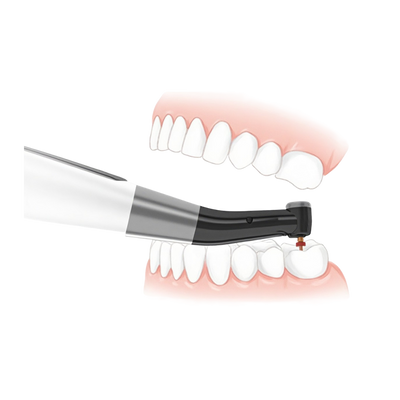

Automatically start when the file is inserted into the canal and stop when the file is taken out. Automatically reverse/stop when the apcal point is reached.

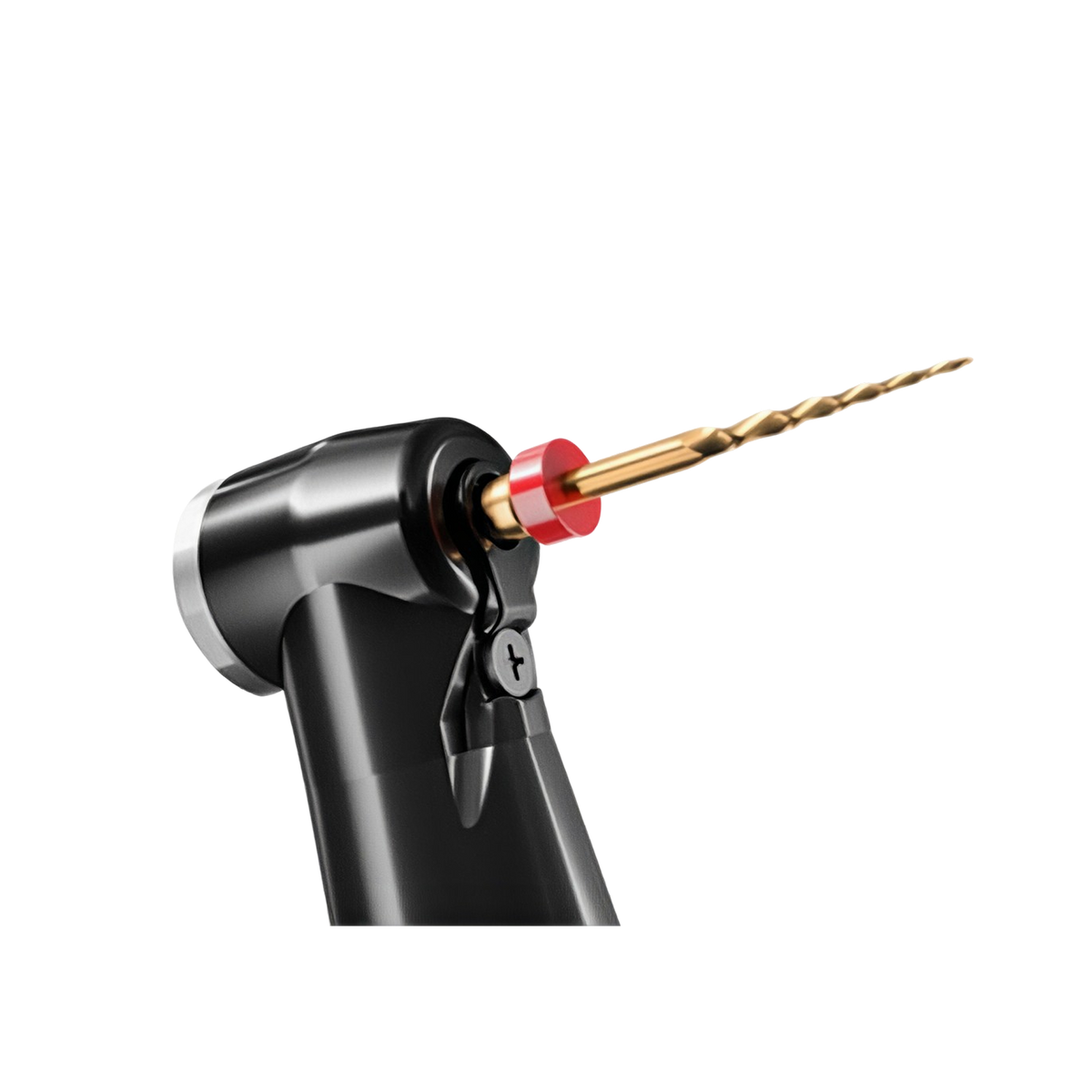

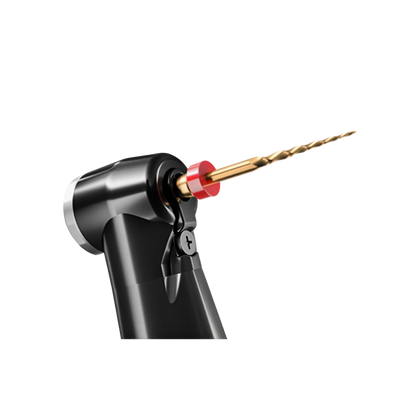

Plastic and Adjustable Contra-Angle
No need to use a silicone sleeve to insulate when the endo motor and apex locator are used together. Special aviation-grade plastics enable contra-angle to be autoclaved to avoid cross-infection.

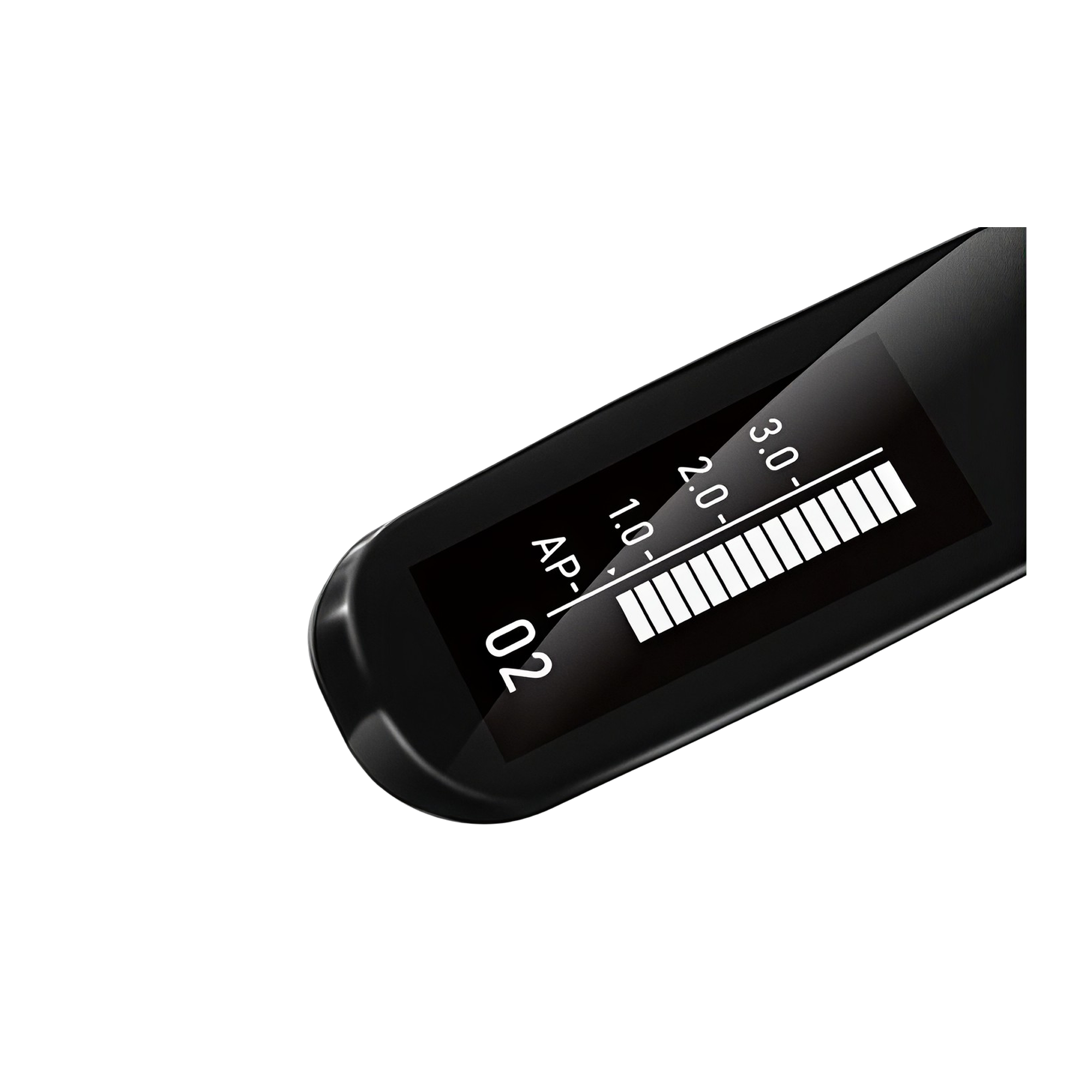

All-angle OLED Screen
Without viewing angle limit, clear display can be guaranteed even under strong light.
Maximum Compatibility
Wide torque and speed range make it compatible with various file system.
High Performance Brushless Motor

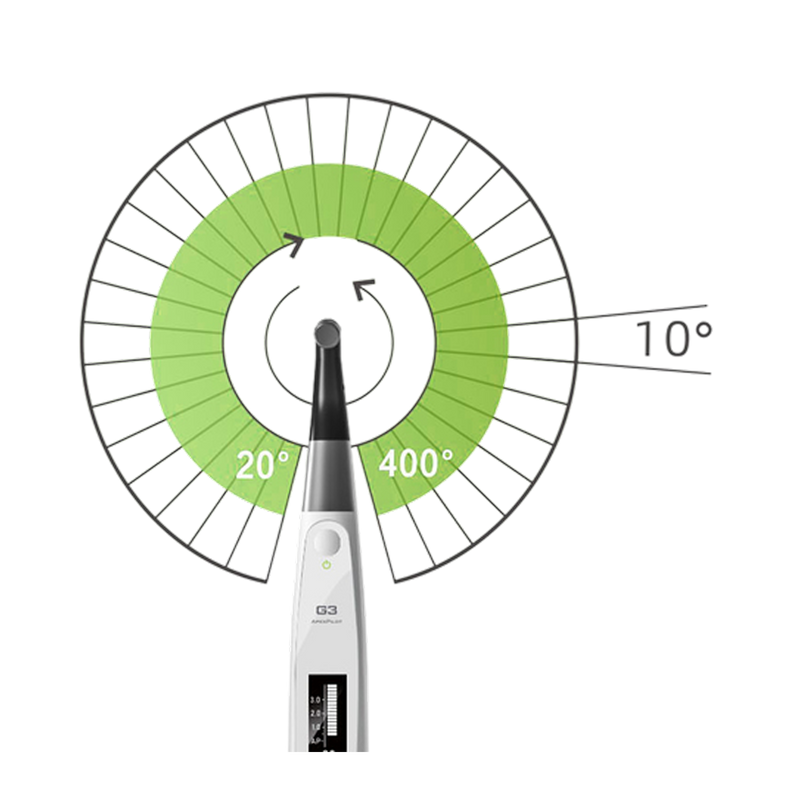

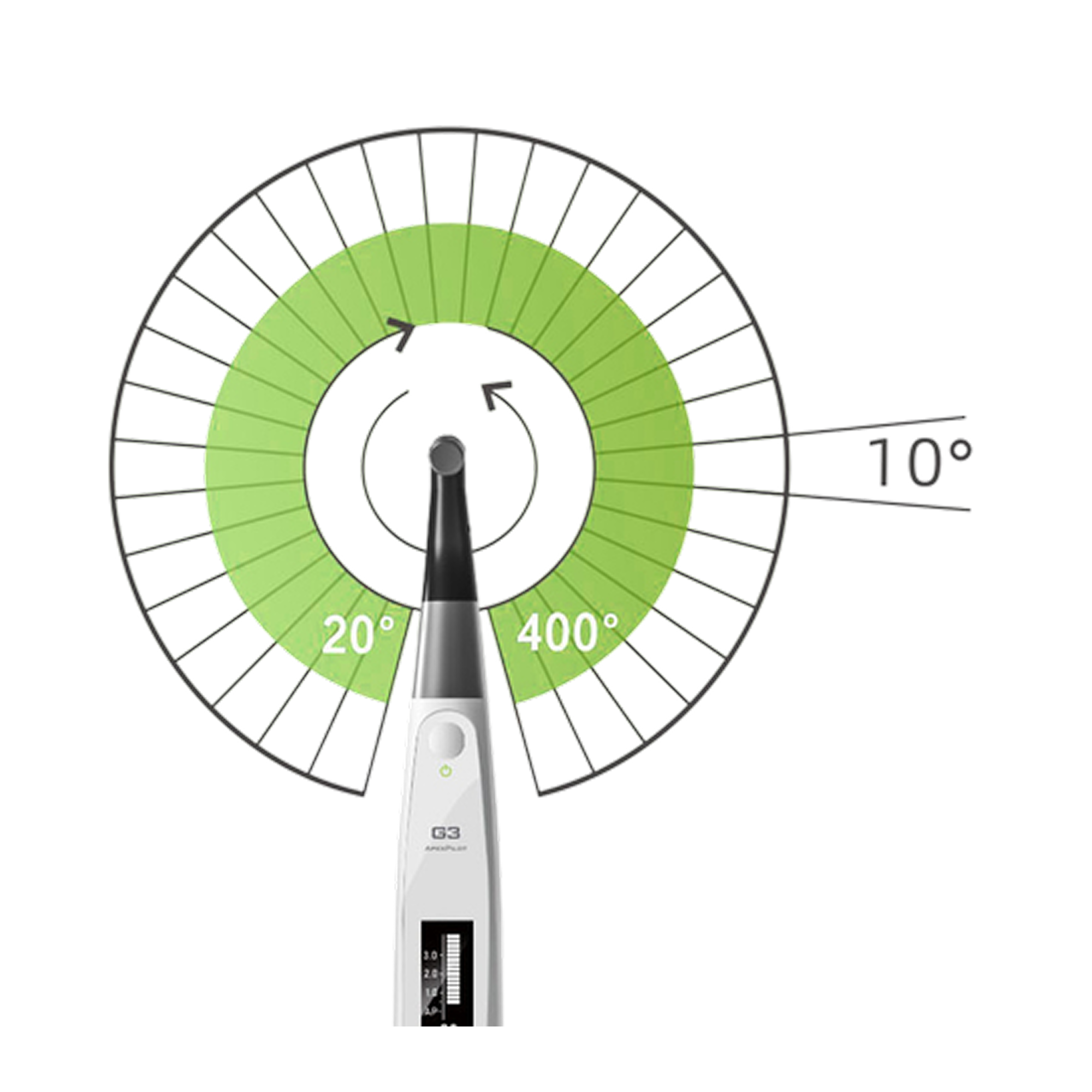

Equipped with an advanced brushless motor offering Clockwise, Counter Clockwise, and Reciprocating modes for flexibility. The reciprocating angle is adjustable in 10° intervals (20°–400°), enhancing precision and reducing fracture risk. Auto Reverse activates in Clockwise mode when torque exceeds the preset limit for added safety.
Key Specification
| Speed Range | 100rpm~1000rpm |
| Torque Range | 0.4-5.0N.cm |
| Lithium Battery | 3.7V /2000mAh |
| Power Input | ~100V-240V 50Hz/60Hz 400mA Max |
| Power Output | DC5V/1A |
| Wireless charging Frequency Range | 112-205KHz |
| Warranty | 12 Months |
Compatible with the following rotary files:
| ApexPilot G1 | ApexPilot G2 | ApexPilot G3 |
|---|---|---|
| WaveOne | WaveOne | WaveOne |
| Protaper | Protaper | Protaper |
| Pathfile | Pathfile | Pathfile |
| Reciproc | Reciproc | Reciproc |
| Mtwo | Mtwo | Mtwo |
| Flex-Master | Flex-Master | Flex-Master |
| K3 | K3 | K3 |
| K3XF | K3XF | K3XF |
| TF | TF | TF |
| Revo-S | Revo-S | Revo-S |
| One Flare | One Flare | One Flare |
| One G | One G | One G |
| Hero Gold | Hero Gold | Hero Gold |
| One Curve | One Curve | One Curve |
| 2Shape | 2Shape | 2Shape |
| HERO Shaper | HERO Shaper | HERO Shaper |
| R-ENDO | R-ENDO | R-ENDO |
| iRace | iRace | iRace |
| BioRace | BioRace | BioRace |
| Gates | Gates | Gates |
| XPSHAPER | XPSHAPER | -- |
| XPFINISHER | XPFINISHER | -- |
| W3-Pro | W3-Pro | W3-Pro |
| W3-ONE | W3-ONE | W3-ONE |
| W3-Single | W3-Single | W3-Single |
| W2-Plus | W2-Plus | W2-Plus |
| W2-ONE | W2-ONE | W2-ONE |
| W2-Pro | W2-Pro | W2-Pro |
| Endo-Plus | Endo-Plus | -- |
| W2 | W2 | W2 |
Order Info
Code: AL2070

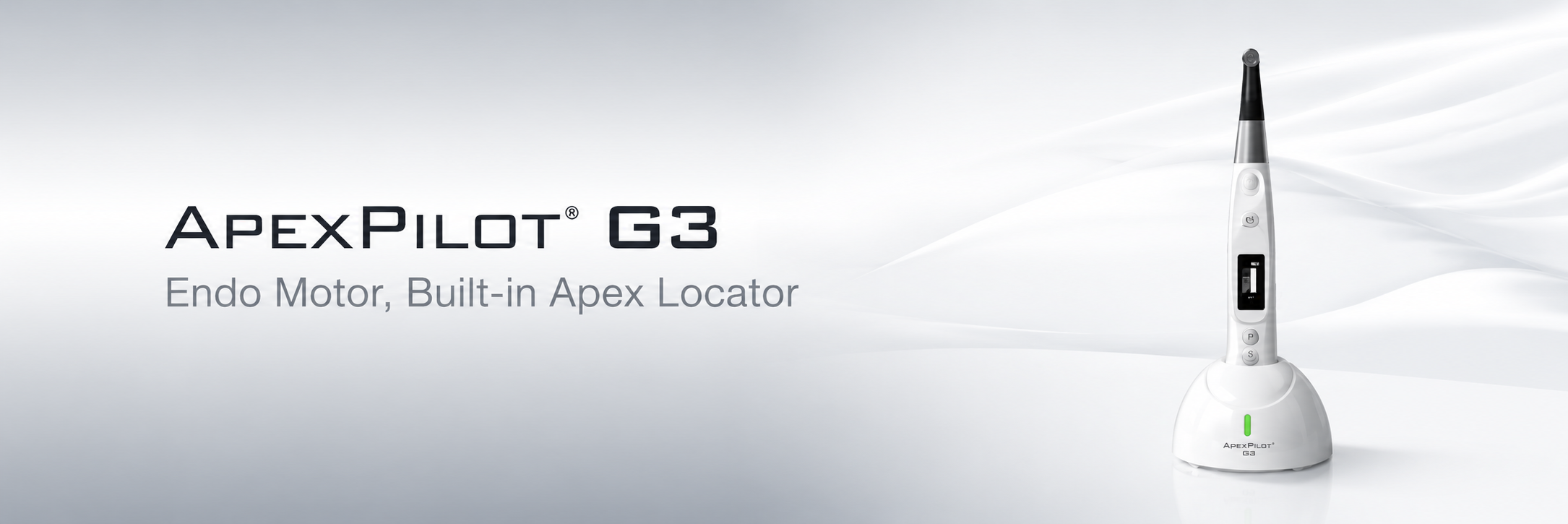

Model: ApexPilot G3
Description: Endo Motor with Built-in Apex Locator
