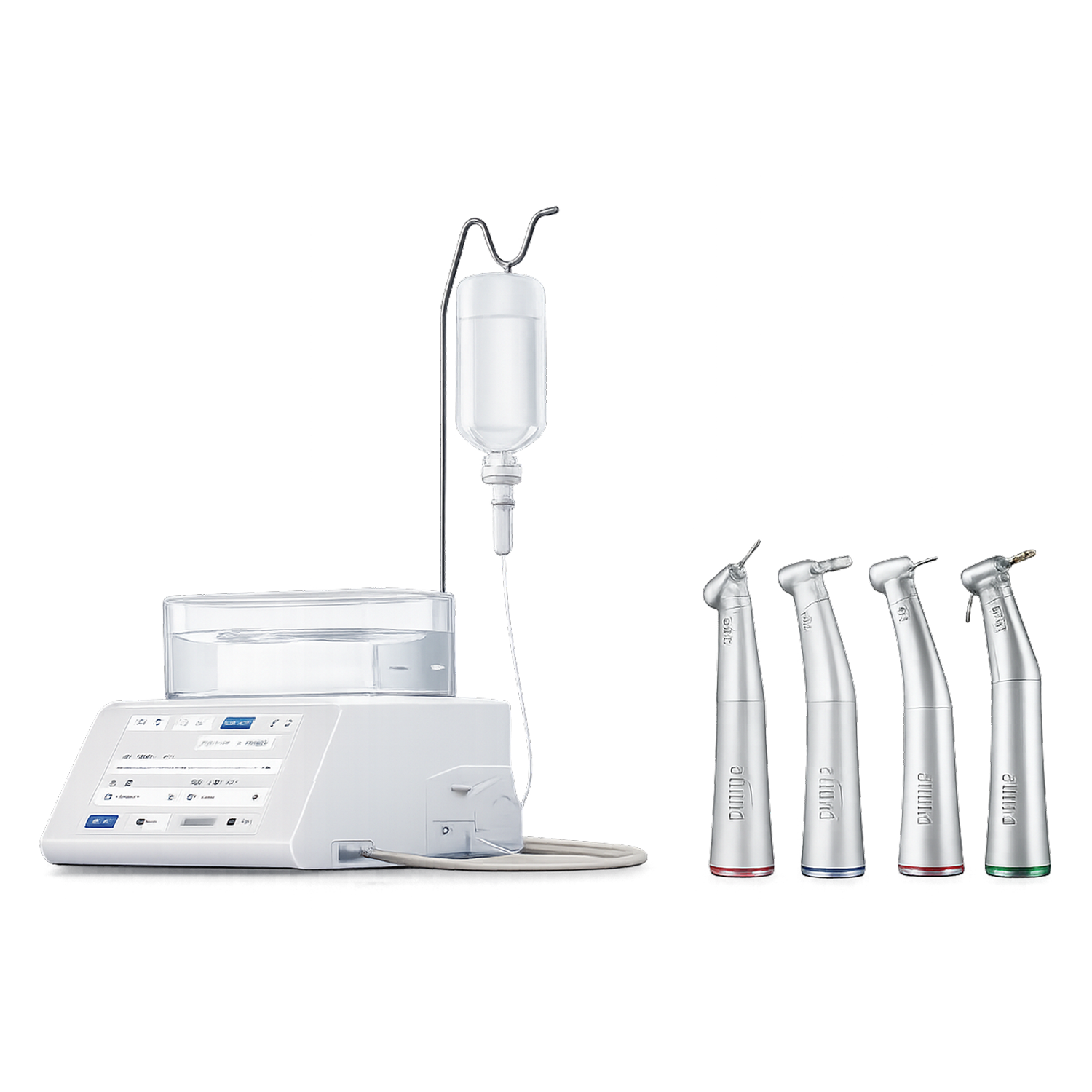

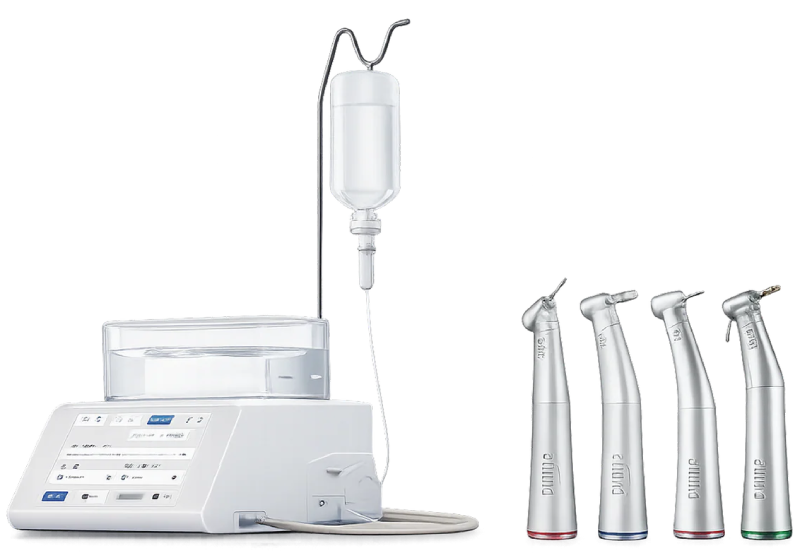

ES70 Surgical Drive System
A compact, high-performance surgical drive system engineered for implantology, oral surgery, and precision-driven procedures. The ES70 delivers accurate torque control, smooth power output, and exceptionally quiet operation, ensuring a seamless clinical experience from start to finish. Designed for efficiency without compromising performance, it enhances procedural confidence in every case. Its intuitive interface and ergonomic design promote effortless operation while reducing clinician fatigue during extended procedures. Advanced motor technology provides consistent power and stability for predictable surgical outcomes.
Choose options





Intelligent internal algorithm
Can be automatically calibrated
automatic
Torque adjustment
Powered tooth
extraction module
Overload
limit swing

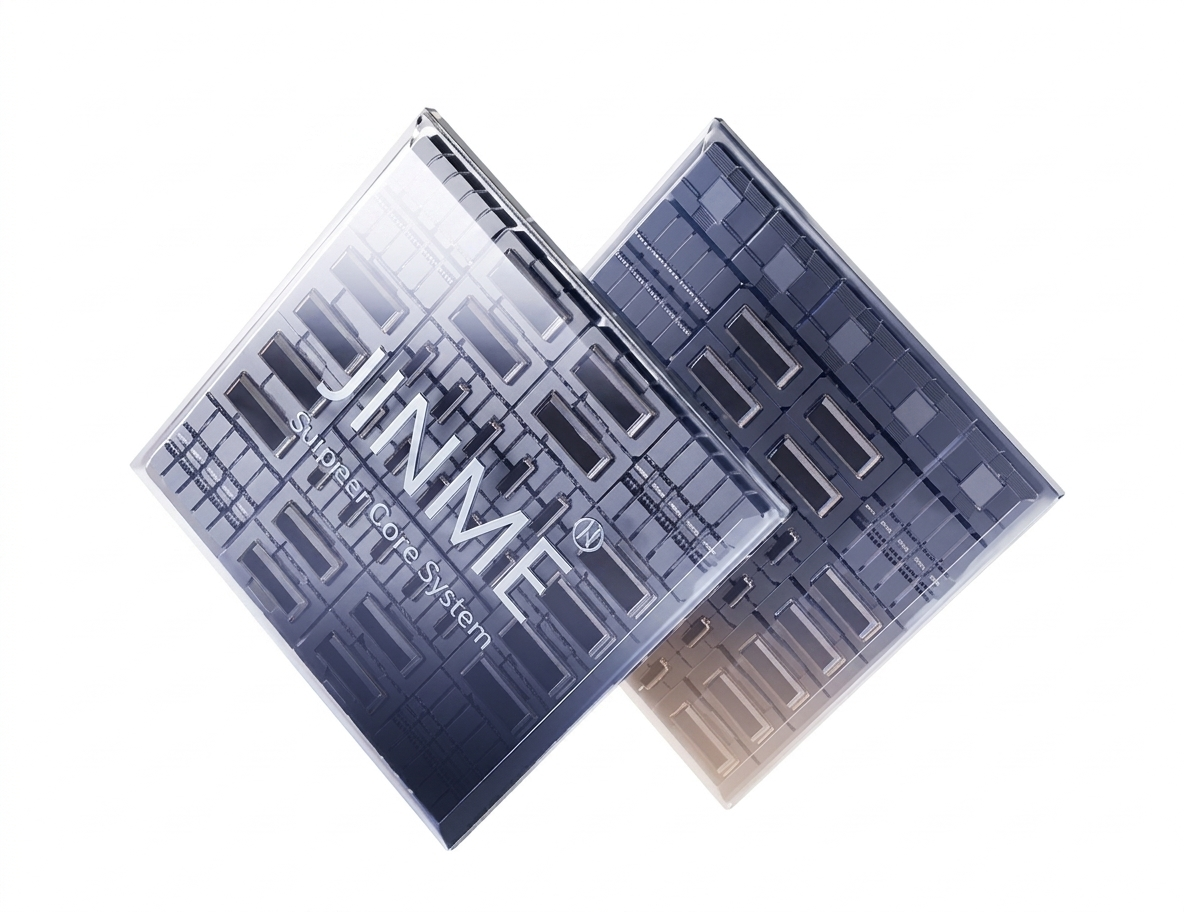

Industrial grade chips
Instructions are responded immediately,
and your heart is at your fingertips.
Efficiently execute your every clinical need.

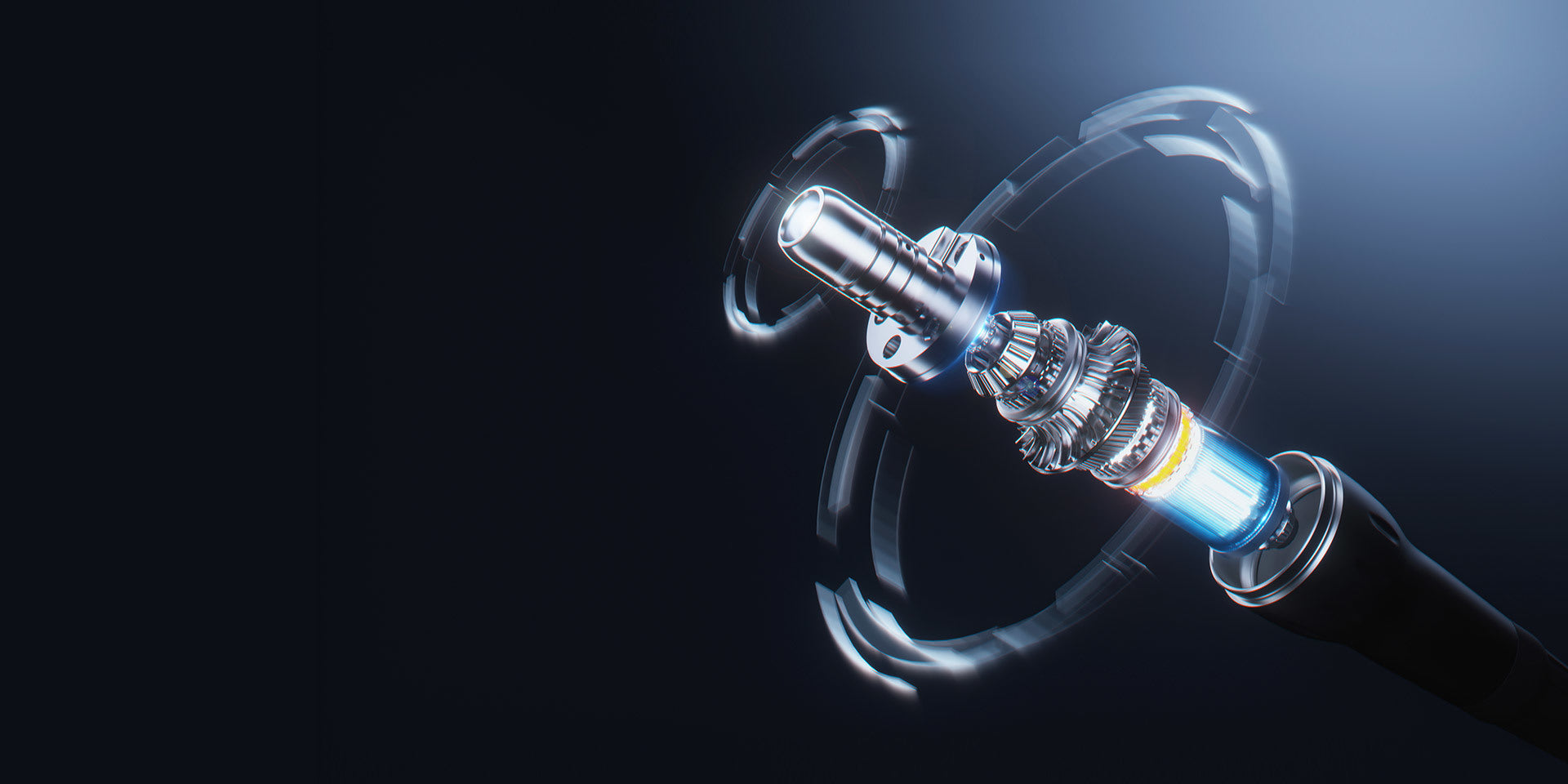

High-precision cartridge
It can provide a steady
stream of strong torque,
low-lying,
Measurement accuracy
is within 0.02mm
German bearings Stable and durable

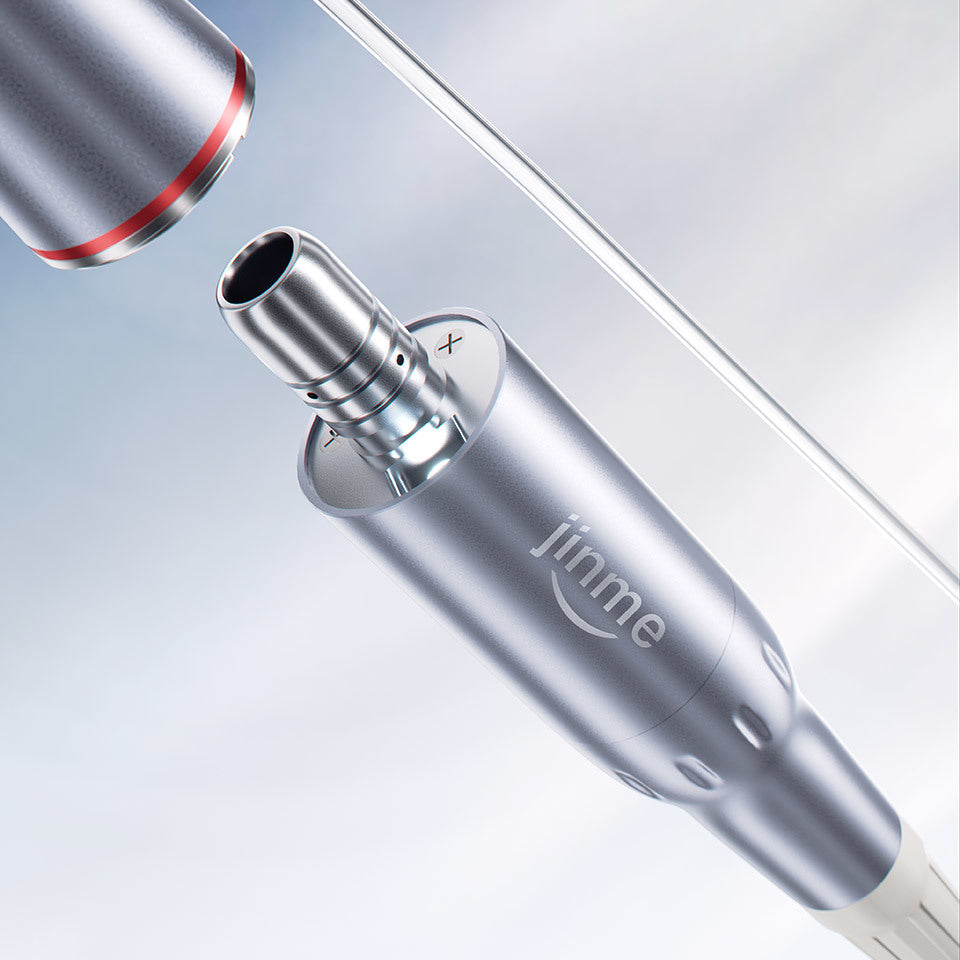

Easy to plug and unplug Powerful

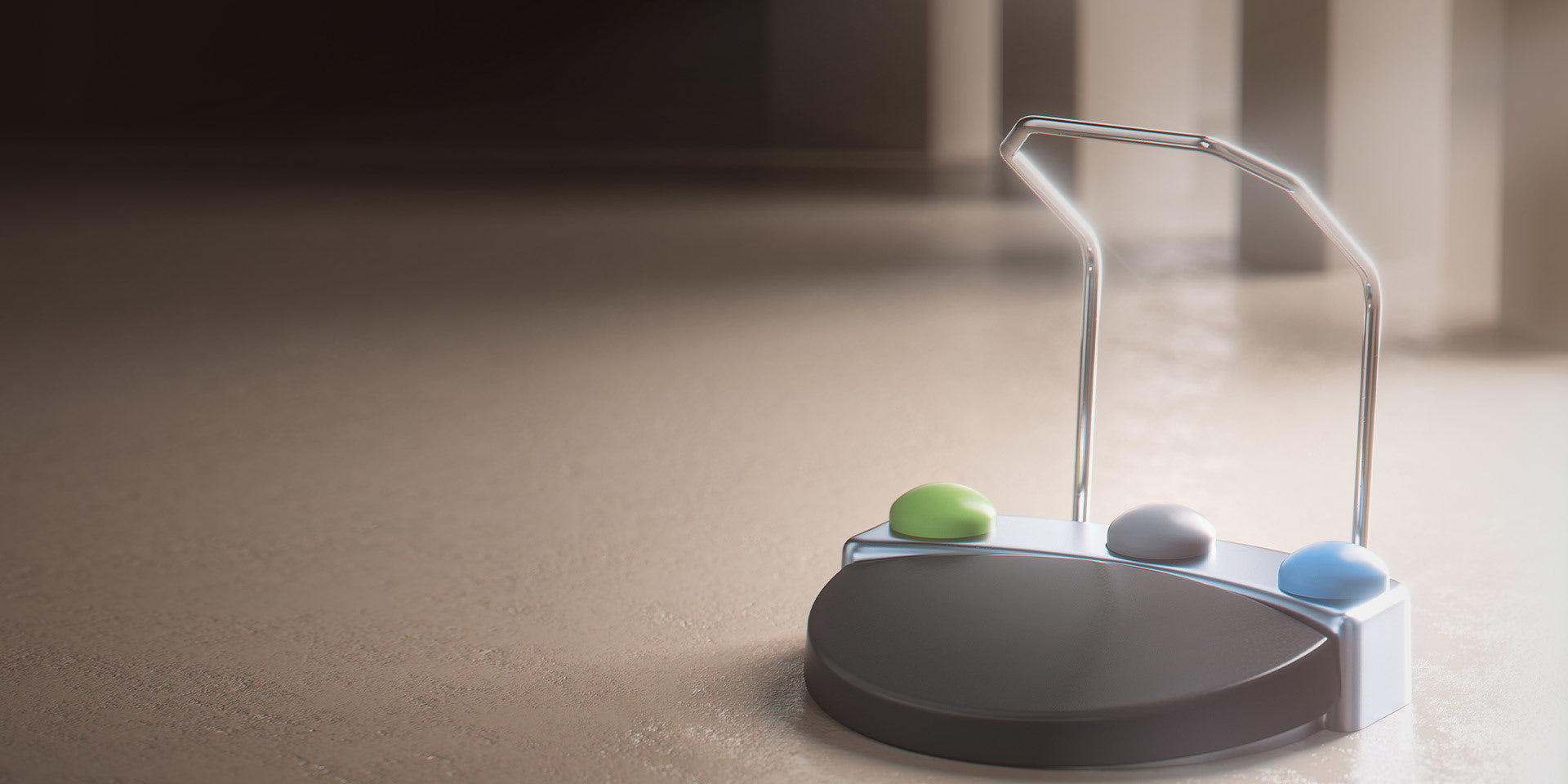

3 function buttons
Water volume switch,
mode switching,
forward and reverse switching

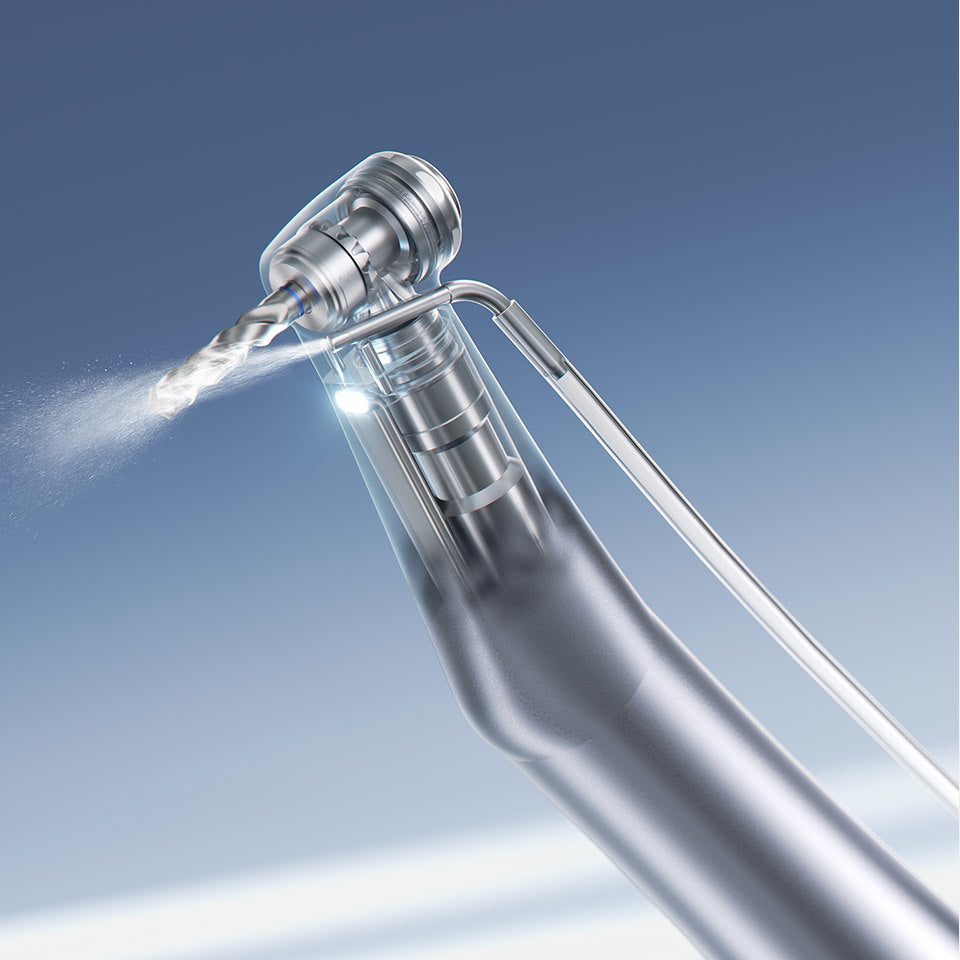

With implant function

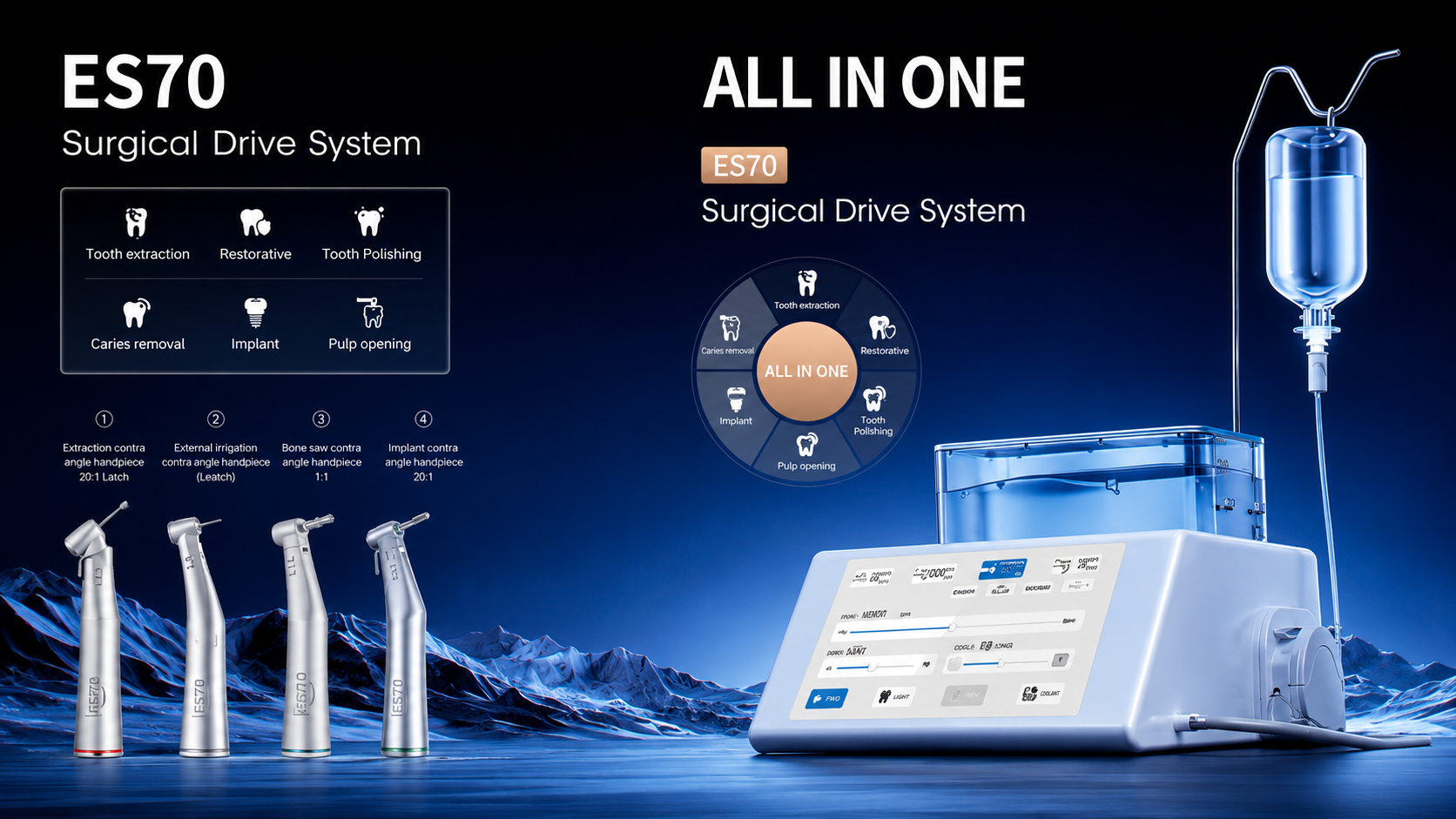

Surgical Drive System
ES70
Extract a Tooth
Restorative
Tooth Polishing
Caries Removal
Implant
Pulp Opening
Specifications
ES70 - Surgical Drive System
| Main system size | Length 260mm * width 240mm * height 110mm |
|---|---|
| Input voltage | Other: 220VAC / CE: 230VAC |
| Allowed voltage fluctuation | ±10% |
| Rated current | 0.1A-0.8A |
| Supply frequencies | 50Hz/60Hz |
| Power fuse | T2.0AH/250V |
| Maximum power consumption | 180VA |
| Motor rated working voltage | DC32V |
| Motor rotation mode | Forward/reverse rotation |
| Motor rotation speed | 200 r/min to 40,000 r/min |
| Size of motor | Φ21.7mm x height 70.5mm |
| Sterilization method | High temperature and high pressure 220kpa steam sterilization at 134° for 5 minutes |
| Hanging maximum allowed load | ≤1.5KG |
Features
Extract a Tooth/Restorative/Tooth Polishing/Caries Removal/ Implant/Pulp Opening
Support & Downloads
1:5 Maintenance video
We ensure precise-matching of gears, dentists enjoy perfectly-quiet, ultra-smooth, & long-life performance.
Dental Surgical Drive System
More treatment options
Implantation (40:1/20:1)
Tooth extraction (1:4.2)

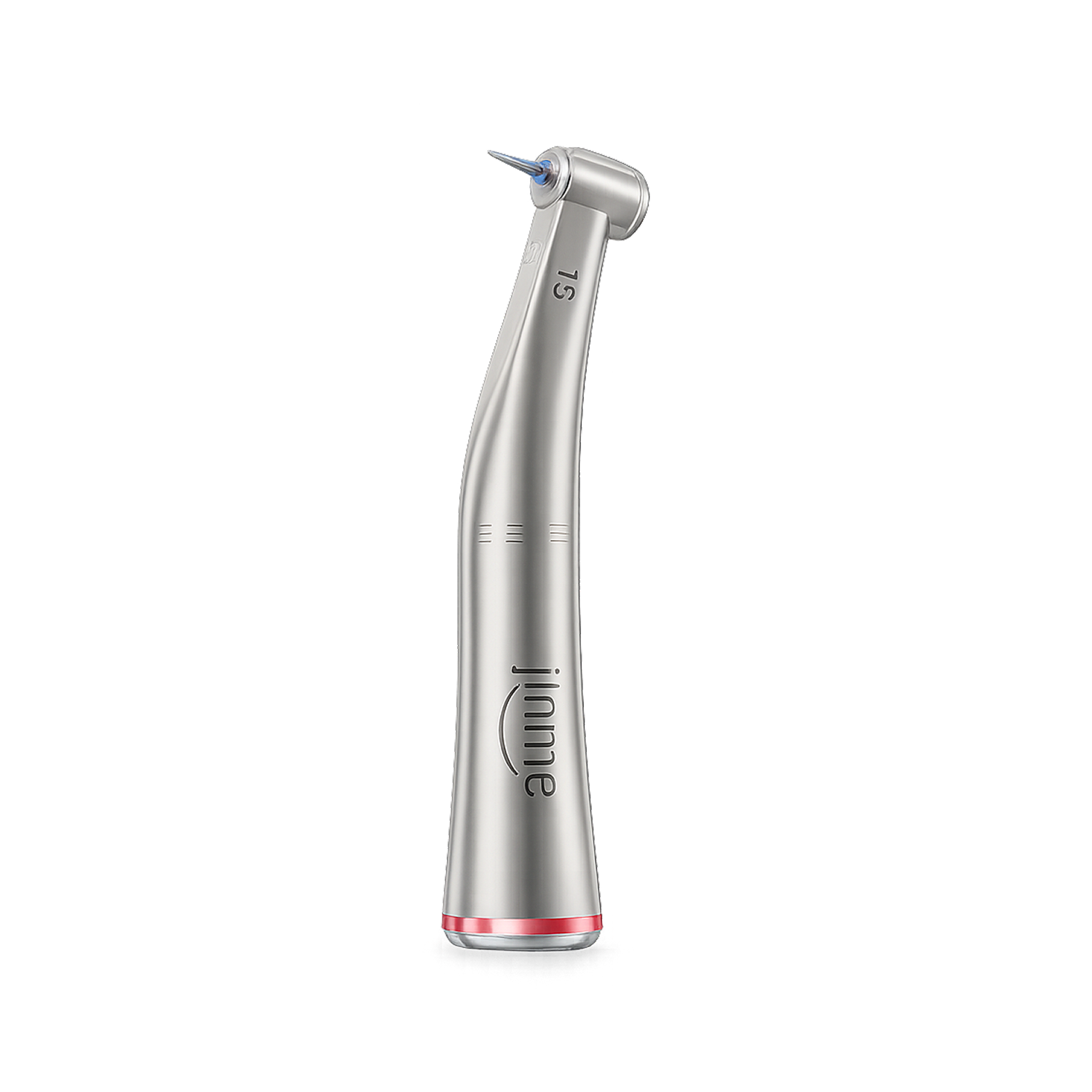

Aesthetic restoration (1:5)
