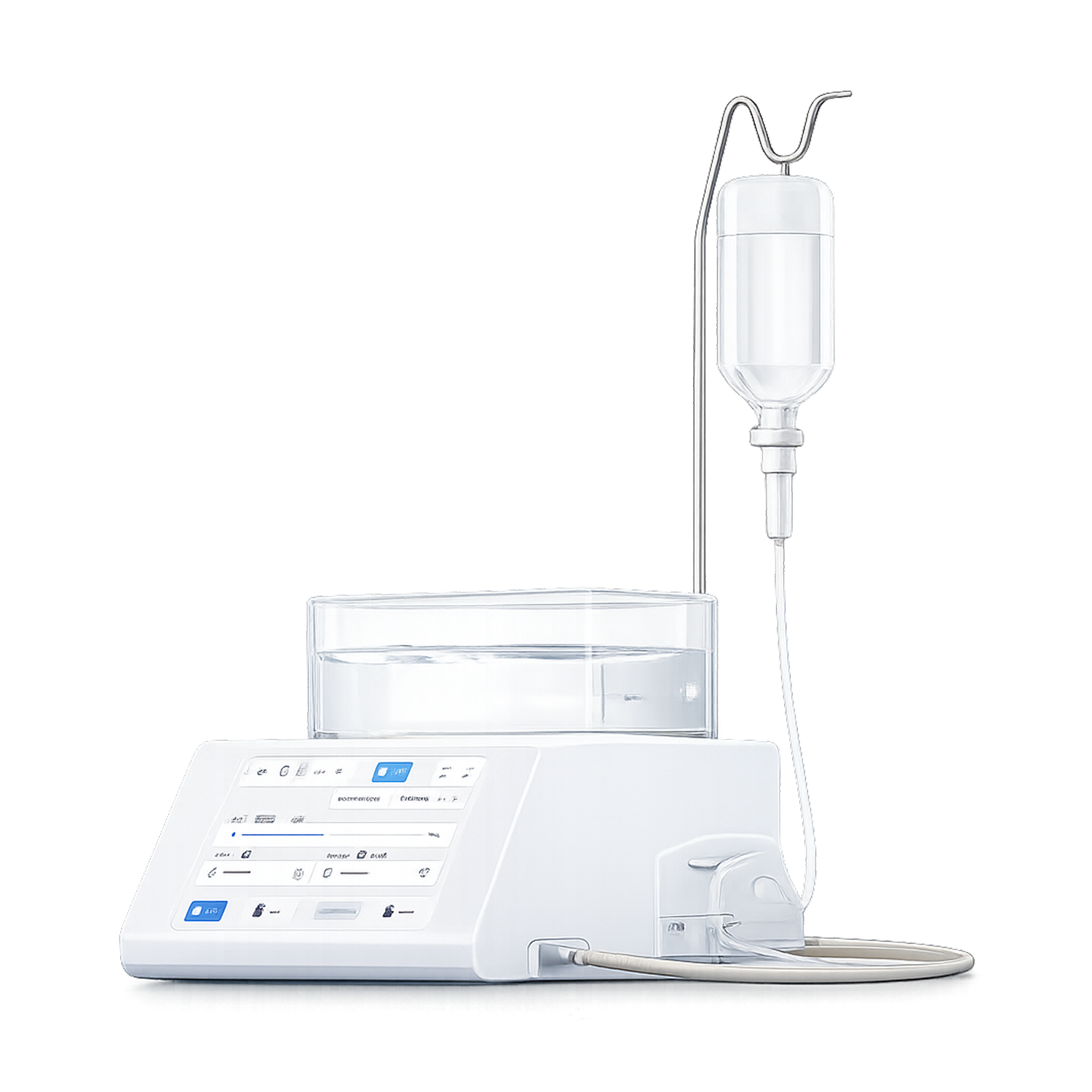

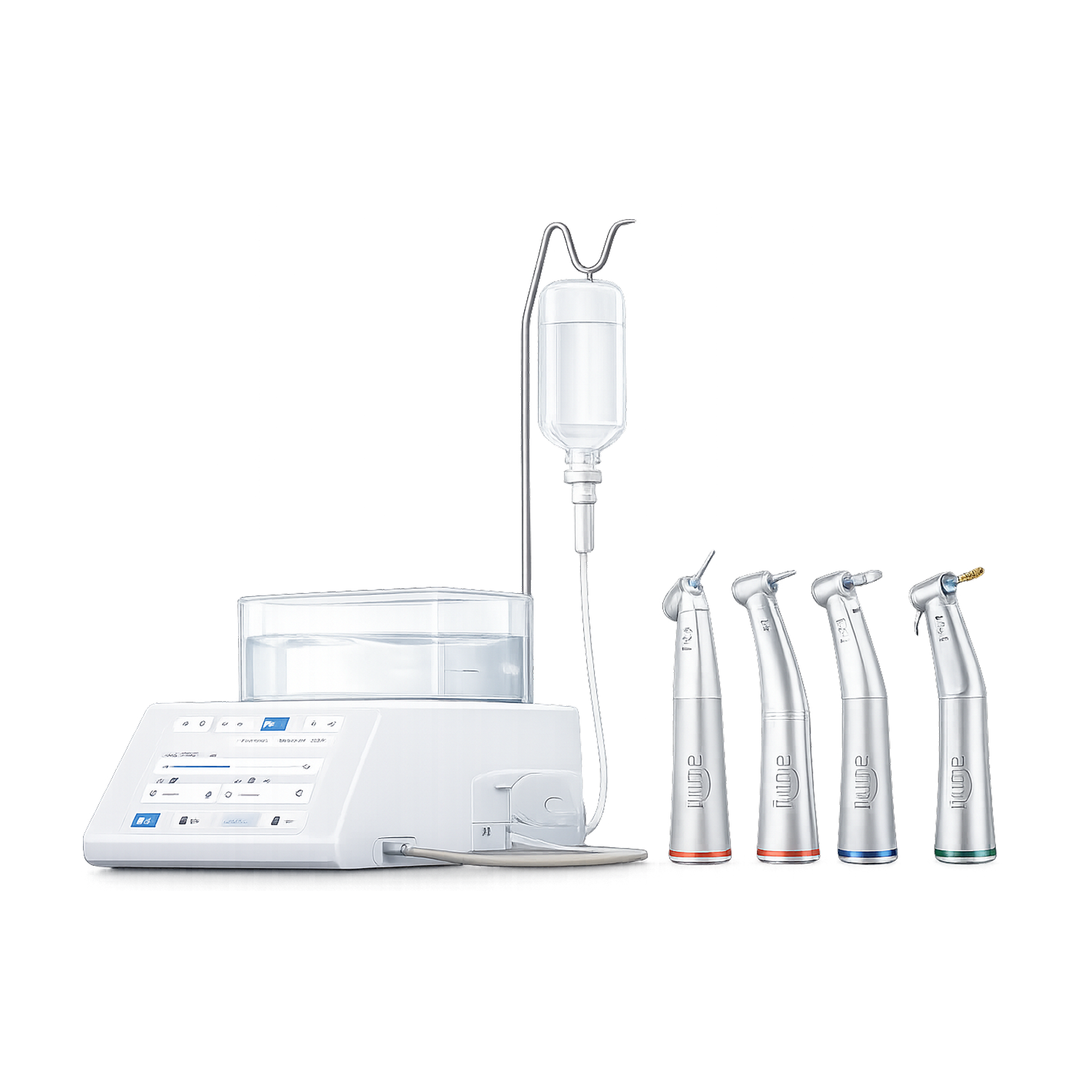

ES90 Surgical Drive System
A premium surgical drive system with advanced torque management and enhanced power output for complex procedures. Designed for high-demand practices, it ensures precision, durability, and superior control. When cases get challenging, this system keeps you ahead.
Choose options
With implant function
Surgical Drive System
ES90
Extract a Tooth
Restorative
Tooth Polishing
Caries Removal
Implant
Pulp Opening
Intelligent internal algorithm
Can be automatically calibrated
automatic
Torque adjustment
Powered tooth
extraction module
Overload
limit swing
Industrial grade chips
Instructions are responded immediately,
and your heart is at your fingertips.
Efficiently execute your every clinical need.
High-precision cartridge
It can provide a steady
stream of strong torque,
low-lying,
Measurement accuracy
is within 0.02mm
German bearings Stable and durable
Easy to plug and unplug Powerful
3 function buttons
Water volume switch,
mode switching,
forward and reverse switching
Specifications
ES90 - Surgical Drive System
| Model | ES90 |
|---|---|
| Mainframe size | 260mm×240mm×110mm |
| Input Voltage | 220VAC |
| Allowable voltage fluctuation | ±10% |
| Rated Current | 0.1A-0.8A |
| Frequency | 50Hz/60Hz |
| Power fuse | 2*250V-T1.6AH |
| Maximum Power Consumption | 180VA |
| Motor Rated Working Voltage | DC32V |
| Motor Rotation Mode | Forward/Reverse Rotation |
| Motor Speed Range | 0r/min-40,000r/min |
| Motor Size | Φ21.7mm×70.5mm |
| Sterilization Method | High temperature and high pressure steam sterilization, 134°C for 5 minutes |
| Max allowable load for hanging | ≦1.5KG |

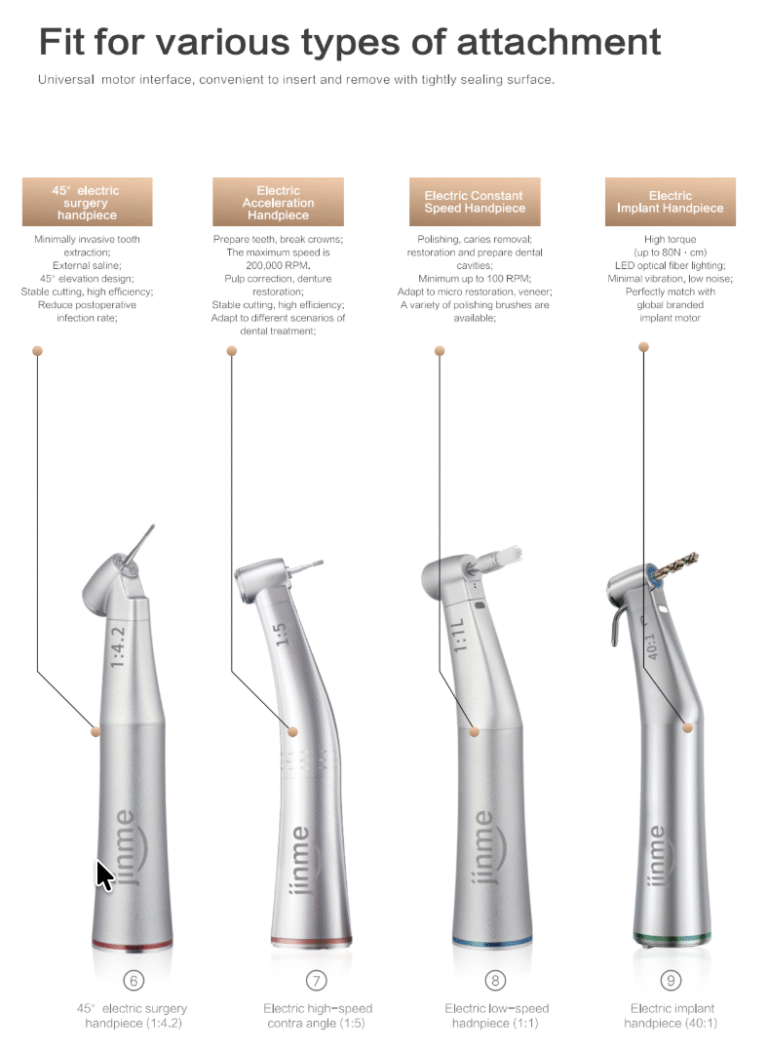

| Item | Application | Model | Weight | Head Length | Head Diameter | Motor Speed |
|---|---|---|---|---|---|---|
|
Item
High-speed Electric Handpiece 1:5L |
Application Crown cutting Tooth Preparation Pulp chamber opening Pulp chamber preparation Grinding dentures | Model W15LW | Weight Within 64g | Head Length Within 9.5mm | Head Diameter 12.7mm | Motor Speed 0 ~ 200,000 r/min |
|
Item
Low-speed Electric Handpiece 1:1L |
Application Tooth Polishing Caries Removal Refinement Cavity preparation | Model W11L | Weight 70g | Head Length 9.8mm | Head Diameter 14.2mm | Motor Speed 0 ~ 1,000 r/min |
| Item Implant 40:1L | Application Position Guiding Hole expanding Thread Tapping Implant | Model W401LW | Weight 73g | Head Length 96mm | Head Diameter 13.55mm |
Motor Speed
15 r/min 0 ~ 40,000 r/min |

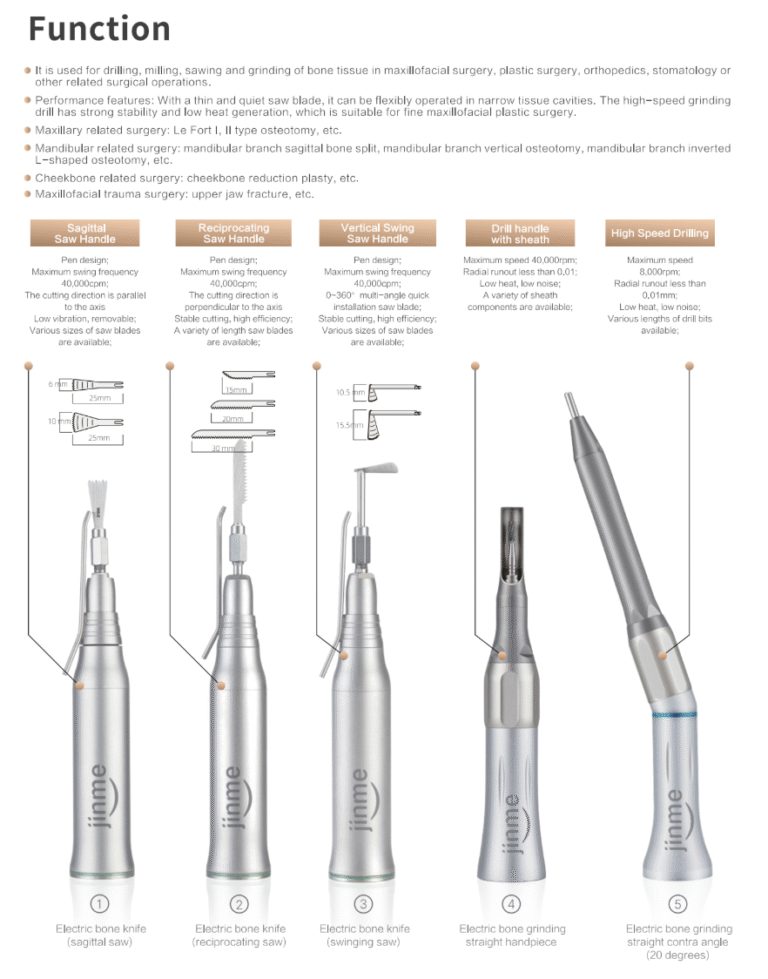

| Item Osteotome | Application Drill & grind handle1:1 | Model SH11W2, SH11W3 | Motor Speed 0 ~ 35,000 r/min | |||
| Item | Sub Item | Model Specifications | Sawtooth Thickness | Saw Blade Thickness | Handpiece Model | Motor Speed(±10%) | Corresponding frequency for each handpiece (±10%) |
|---|---|---|---|---|---|---|---|
| Item Osteotome | Sub Item Reciprocating saw 3.2:1 |
Model Specifications
R-30T R-20T R-15T |
Sawtooth Thickness ≤0.7 | Saw Blade Thickness ≤0.5 | Handpiece Model SH41W1 | Motor Speed 15,000r/min | Frequency 0~4,687 c/min |
| Item Osteotome | Sub Item Oscillating saw 3.4:1 |
Model Specifications
O-15.5L O-10.5L |
Sawtooth Thickness - | Saw Blade Thickness - | Handpiece Model SH32W1 | Motor Speed 15,000r/min | Frequency 0~4,411 c/min |
| Item Osteotome | Sub Item Sagittal saw 3.2:1 | Model Specifications S-10W | Sawtooth Thickness - | Saw Blade Thickness - | Handpiece Model SH41W2 | Motor Speed 15,000r/min | Frequency 0~4,687 c/min |

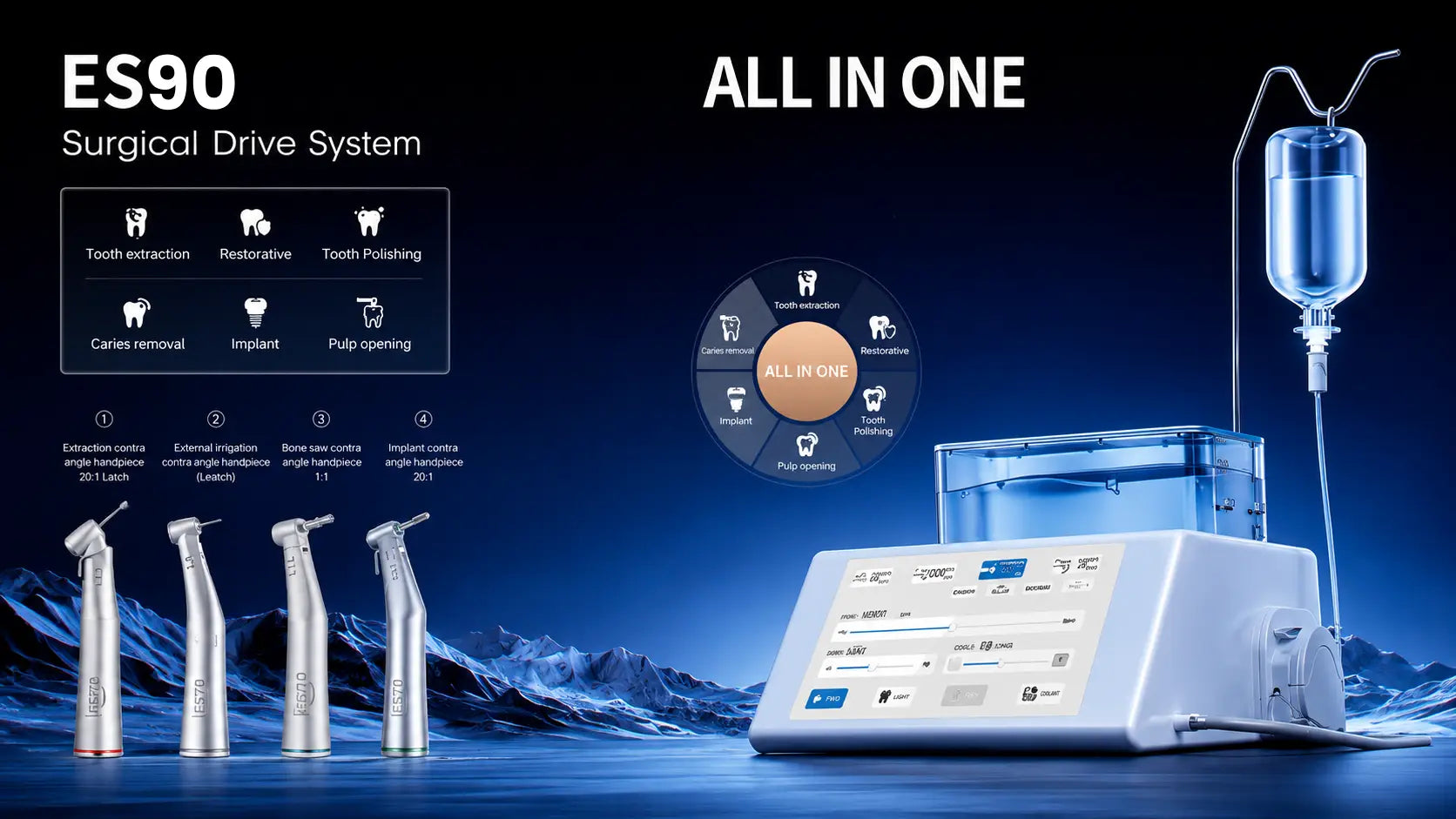

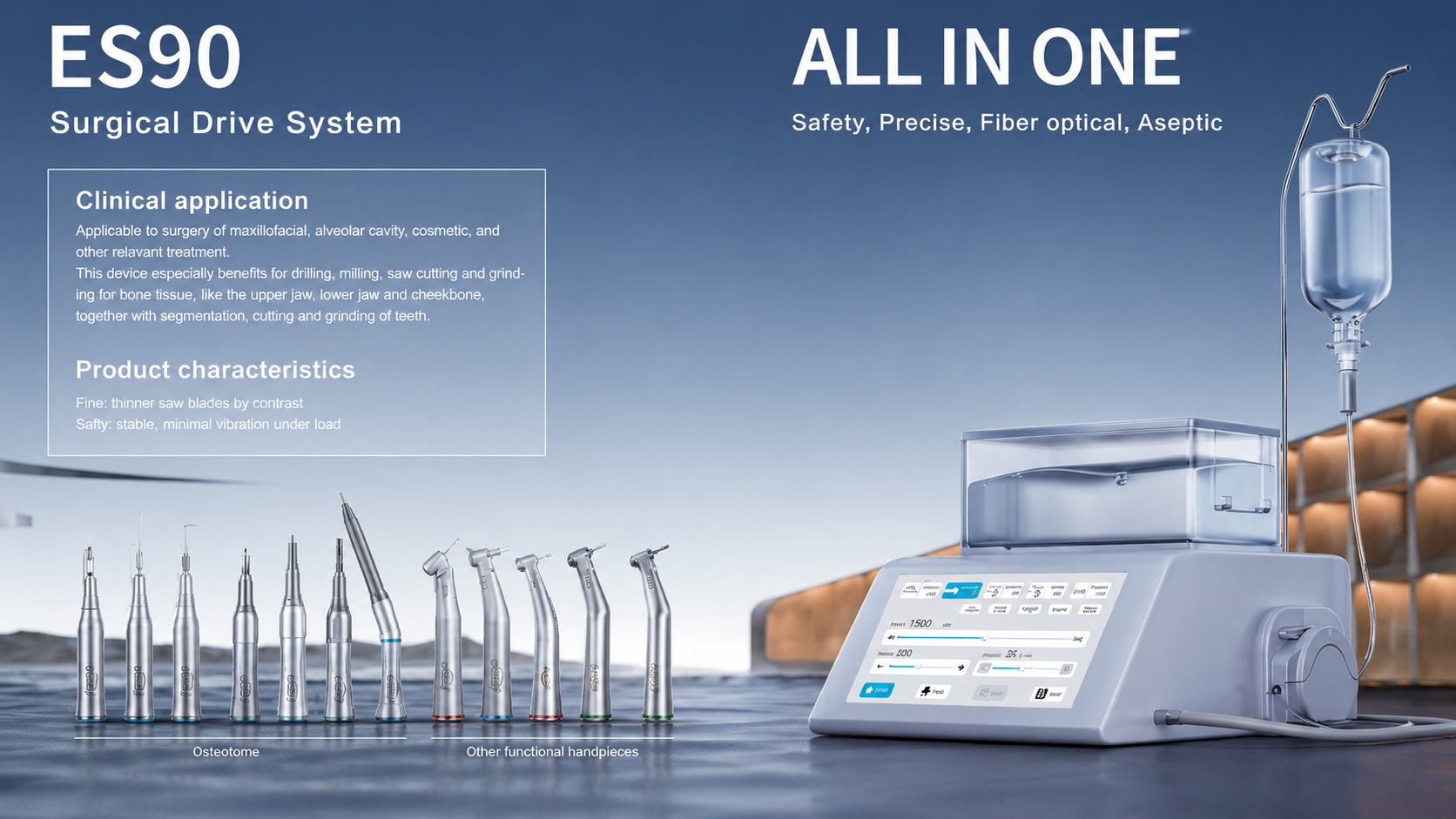

Features
Extract a Tooth/Restorative/Tooth Polishing/Caries Removal/ Implant/Pulp Opening
Dental Surgical Drive System
More treatment options
Implantation (40:1/20:1)
Tooth extraction (1:4.2)
Aesthetic restoration (1:5 )
Cutting in lower mandible (Osteotome)
Support & Downloads
1:5 Maintenance video
We ensure precise-matching of gears, dentists enjoy perfectly-quiet, ultra-smooth, & long-life performance.
