HDX Dentri Max
Everything you need for your growing practice
HDX Dentri Max is built for growing practices that demand everything. The Dentri Max offers a maximum FOV of 18×16.5 cm, perfect for capturing dentition, sinuses, or TMJs, along with a 2D panoramic feature with Autofocus for minimized distortion, extraoral bitewing images, and an optional cephalometric arm.
Choose options
3D Imaging
MAX 18 x 16.5 cm FOV, perfect for capturing dentition, sinus, or TMJ
PANO with Autofocus
2D panoramic feature with Autofocus for minimized distortion
Bitewings
Extraoral bitewing images for better patient comfort
Cephalometric X-ray (optional)
Optional cephalometric arm attachment, excellent diagnostic images for orthodontic practice
Model Scan Option
Model CBCT Scan for STL extraction
Expansive FOV (Max 18×16.5cm)
18×16.5 cm FOV allows diagnosis for most maxillofacial structures
Minimized Metal Artifacts
PrecisionMAR (Metal Artifacts Reduction) allows for greater diagnostic accuracy by significantly reducing metal artifact
Superior Image Quality
Striking contrast and sharpness of images produced by HDX WILL’s image reconstruction technology
Low Dose Radiation
CBCT radiation exposure lower than standard panoramic scan* - w/AEC & Ultra low dose mode
Auto Cephalometric Landmark Tracing*
Spend more time with your patients, and less time landmark tracing with WillCeph’s Auto tracing feature *Available with Willceph software purchase
Field of View
Expansive FOV 18×16.5 cm maximizes your practice.
Dentri Max provides you with various FOV size options from 3×3 cm to 18×16.5cm

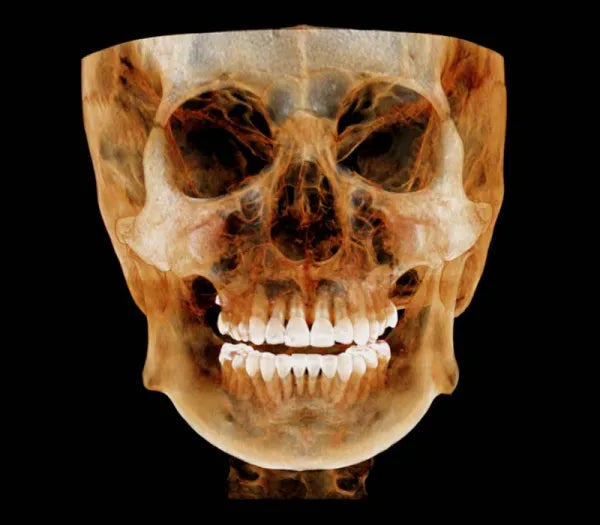

18×16.5 cm
Anterior View
18×16.5 cm

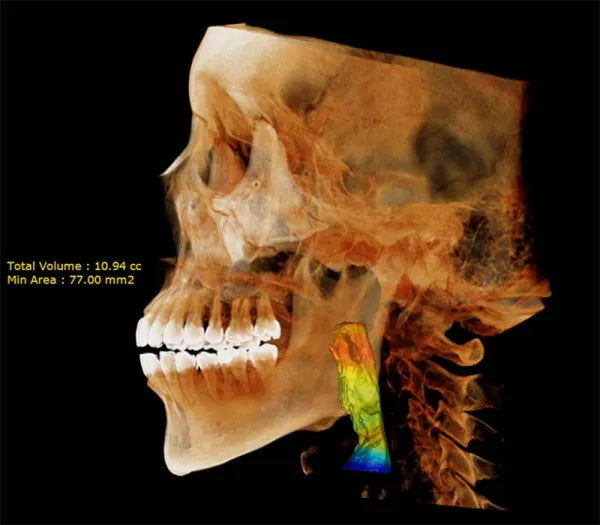

Airway Analysis

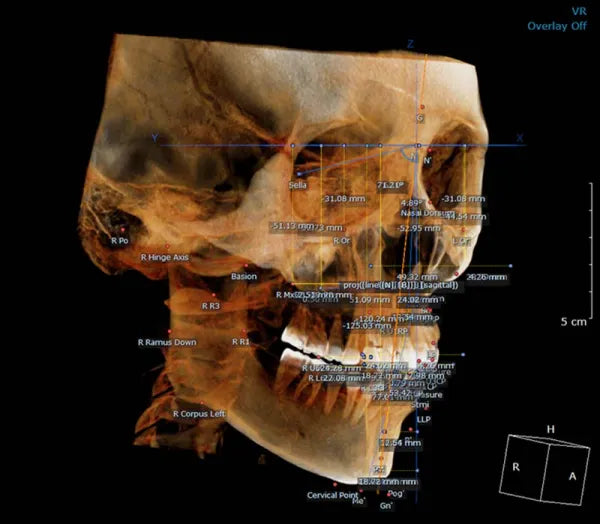

18×16.5 cm
3D Cephalometric analysis

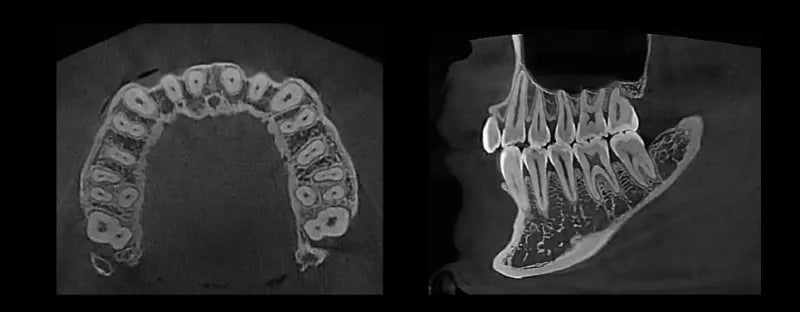

Superior Image Quality
HDX WILL’s state of the art imaging reconstruction algorithm finds the best value of each voxel and enhances image contrast and sharpness.

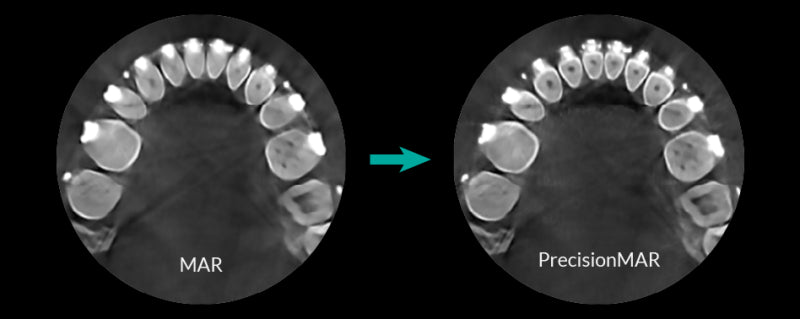

PrecisionMAR
PrecisionMAR™ offers unprecedented clarity around metal, improving diagnostics and planning.
● Minimal scatter
● Reduced shading artifact
● Clearly define bone and teeth structures around metal
Low Dose Radiation

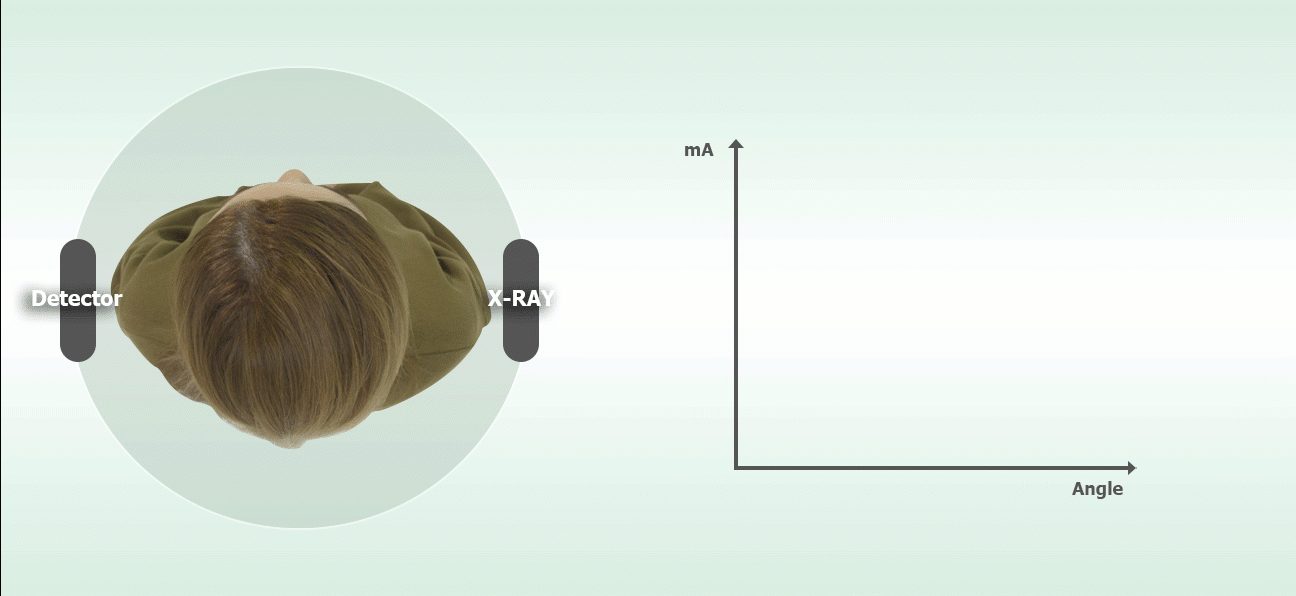

An additionally equipped filter & Adaptive Exposure Control(AEC) technology significantly reduces radiation exposure.
HDX WILL’s imaging reconstruction still allows superior image quality.
Dedicated 2D Panoramic X-ray
Auto Focus
Minimized distortion, Maximized ability to obtain clear images
Bitewings
Extraoral Bitewing options
TMJ
TMJ diagnostic x-ray
Low Dose Mode
Rapid scan time, Minimized dosage to patient
Auto Focus
Bitewings
TMJ
Cephalometric X-ray (Optional)
Various cephalometric x-ray options with auto landmark tracing feature*
*Auto Tracing – Available with Willceph software purchase
Dentri MAX Specifications
| Model | Panorama | Cephalo | CT | FOV (D x H) 18 x 16.5 cm | FOV (D x H) 16 x 9 cm | Free FOV | Model Scan |
|---|---|---|---|---|---|---|---|
| Dentri Max | x | x | x | x | x | x | |
| Dentri S Max | x | x (Scan Type) | x | x | x | x | x |
| Dentri C Max | x | x (One Shot Type) | x | x | x | x | x |
| Mode | Normal | Low Dose | |||
|---|---|---|---|---|---|
| Scan Time (Adult) | CBCT | Dental Arch, Sinus | FOV 16×9 cm | 24 s | 8 s or 12 s, 24 s |
| FOV 18×16.5 cm | 24 s or 36 s | 16 s or 24 s, 24 s or 36 s | |||
| Free FOV, Ear, Nose, TMJ | 24 s | 8 s or 12 s, 24 s | |||
| PANO | Teeth | Full Arch | 14 s | 7 s | |
| Bitewings | 8 s | 6.2 s | |||
| Bitewing Right (or left) | 4 s | 3 s | |||
| TMJ | Open / Close (Capture Both) | 6 s | 3.2 s | ||
| Open / Close (Select One) | 3 s | 1.6 s | |||
| Sinus | 10.2 s | 5.2 s | |||
| CEPH (Scan Type) | Lateral Large Area | 8 s | 4 s | ||
| Lateral Small Area | 6 s | 3 s | |||
| Frontal (PA) / Carpus / Waters / SMV | 8 s | 4 s | |||
| CEPH (One Shot Type) | 0.5 s, 1.0 s, 1.5 s, 2 s | ||||
| Model Scan | 24 s | ||||
| Mode | Normal | Low Dose | |||
|---|---|---|---|---|---|
| Scan Time (Child) | CBCT | Dental Arch Sinus | FOV 10×8 cm | 24 s | 8 s or 12 s, 24 s |
| FOV 10×14.5 cm | 24 s or 36 s | 16 s or 24 s, 24 s or 36 s | |||
| Free FOV, Ear, Nose, TMJ | 24 s | 8 s or 12 s, 24 s | |||
| PANO | Teeth | Full Arch | 12.2 s | 6.2 s | |
| Bitewings | 6.2 s | 4.2 s | |||
| Bitewing Right (or left) | 3.0 s | 2.2 s | |||
| TMJ | Open / Close (Capture Both) | 4.2 s | 2.3 s | ||
| Open / Close (Select One) | 2.2 s | 1.2 s | |||
| Sinus | 9.2 s | 4.8 s | |||
| CEPH (Scan Type) | Lateral Large Area | 6 s | 3.2 s | ||
| Lateral Small Area | 3.2 s | 2.5 s | |||
| Frontal (PA) / Carpus / Waters / SMV | 7 s | 3.5 s | |||
| CEPH (One Shot Type) | 0.5 s, 1 s, 1.5 s, 2 s | ||||
| Model Scan | 24 s | ||||
| Field of View (CT) (cm × cm) |
18 × 16.5 (Adult, Stitch), 16 × 9 (Child, Non-Stitch) 10 × 14.5 (Child, Stitch), 10 × 8 (Child, Non-Stitch) Free FOV (min. 3 × 3) |
| Voxel Size (CT) (mm) | 0.10, 0.15, 0.20, 0.25, 0.30 |
| Focal Spot (mm) | 0.5 |
| Reconstruction Time | min. 10 s (standard recon, MAR off) |
| Patient Alignment |
Vertical Column: Electric motion Column: Electric motion Temple Support: Motion |
| Control Device |
Alignment: Touch Panel Exposure & Imaging Acquisition: Workstation |
| Install | Standing |
| Tube Voltage | 60 kV to 90 kV |
| Tube Current | 4 mA to 10 mA |
| Patient Position | Standing (Wheelchair accessible) |
| Detector Type |
CT & Panorama: TFT a-Si
One-Shot Type Cephalo: TFT a-Se
Scan Type Cephalo: CMOS
|
| Gray Scale |
CT & Panorama: 16 bits
One-Shot Type Cephalo: 14 bits
Scan Type Cephalo: 14 bits
|
| Dimensions (W × D × H) (mm × mm × mm) |
DENTRI Max: 1201 × 1361 × 2455 DENTRI C MAX: 1999 × 1361 × 2455 DENTRI S MAX: 1941 × 1361 × 2455 |
| System Weight |
DENTRI MAX: 243 kg (536 lbs) DENTRI S MAX: 270 kg (595 lbs) DENTRI C MAX: 260 kg (573 lbs) |

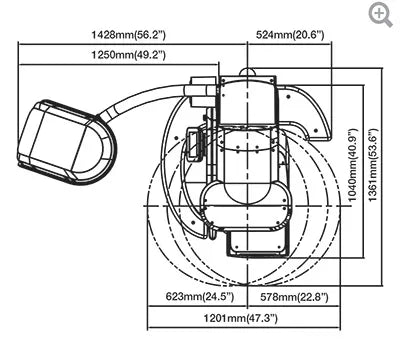

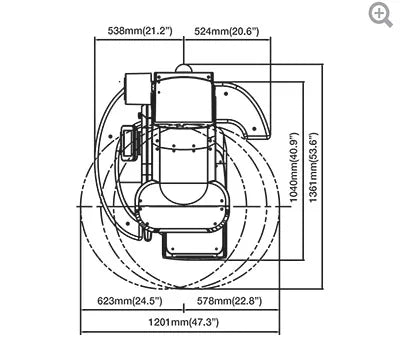

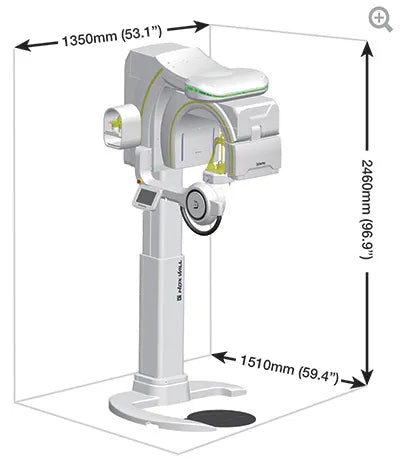

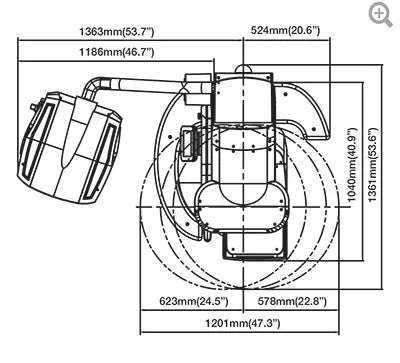

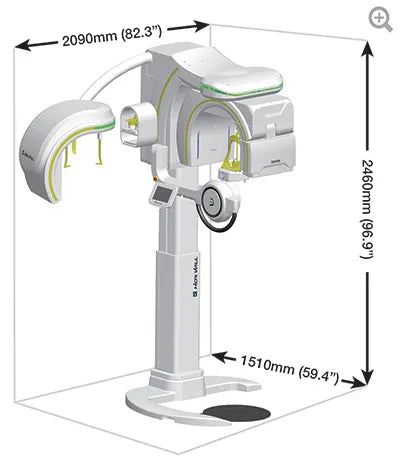

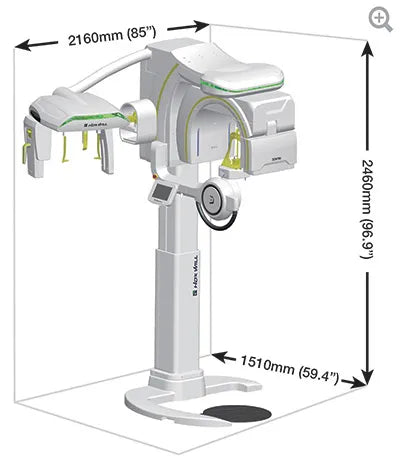

Product Dimensions
Dentri α
Dentri Cα
Dentri Sα
Dentri α
Dentri Cα
Dentri Sα
