Jinme M1 External water spray low speed set
The Jinme M1 External Water Spray Low Speed Set is a low-speed handpiece system comprising three components: the M1-SH straight handpiece, M1-CA contra-angle handpiece, and M1-AM motor. It uses an external water spray design intended to reduce the internal pipe-blocking issues that can affect internal-spray systems, with stainless steel connections throughout. Forward speed runs at 18,000 RPM and reverse at 16,000 RPM, with water flow of 90–110 mL/min and noise held to 65dB or below. Bur changes use a push-type mechanism, and rotation runs on ceramic bearings with protective sealing; the manufacturer reports radial run-out of less than 0.03mm for precision work. Components are rated for high-temperature steam sterilization up to 135°C and carry an 18-month warranty. The set is designed to connect with common low-speed accessories including polishing brushes, polishing rings, grinding heads, and root canal reamers (bur diameter Φ2.334–Φ2.355mm), making it a versatile option for restorative and prophylaxis procedures.
Choose options
Product introduction
The M1 low speed handpiece with external water spray can be connected with polishing brush, dental polishing ring, grinding head and root canal reamer.

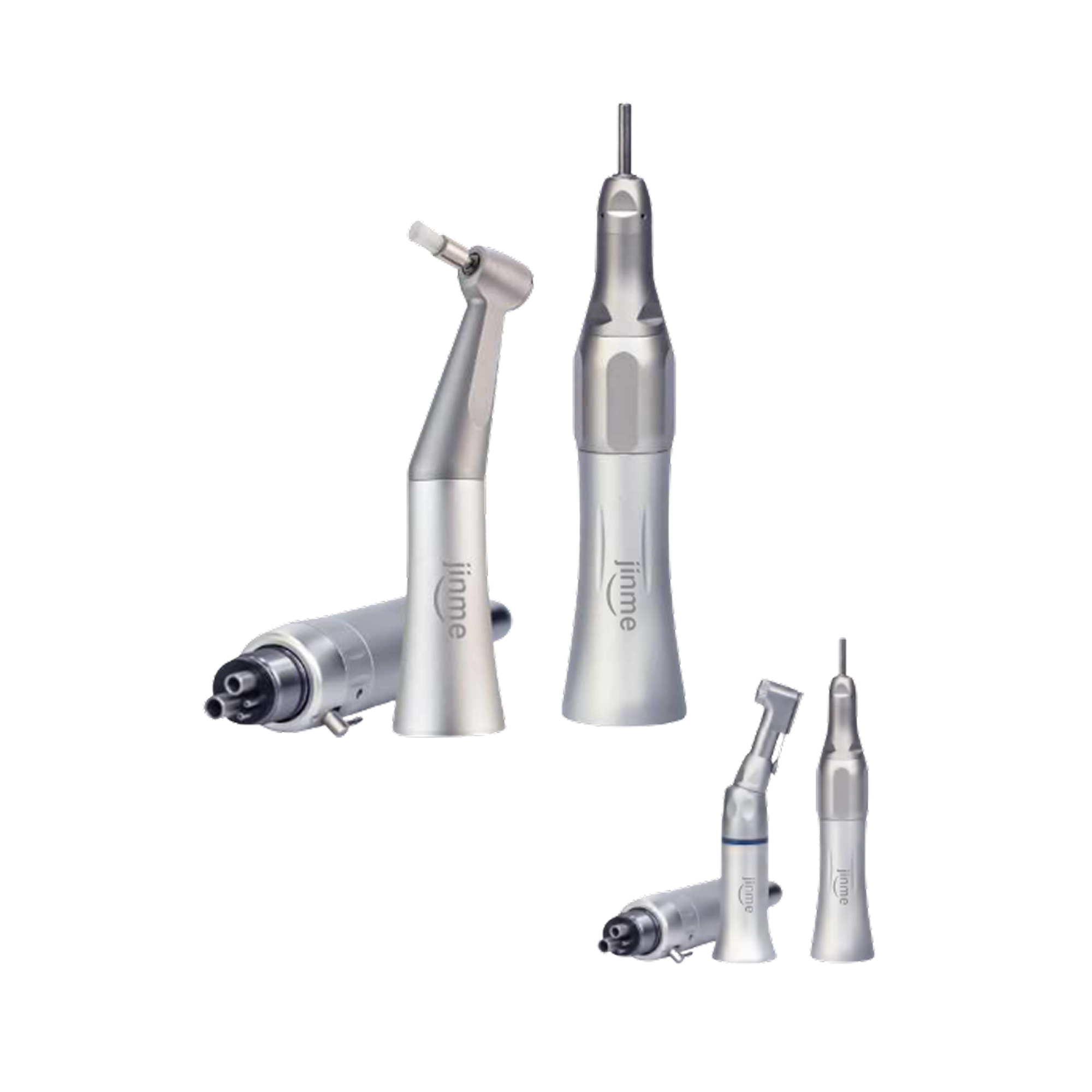

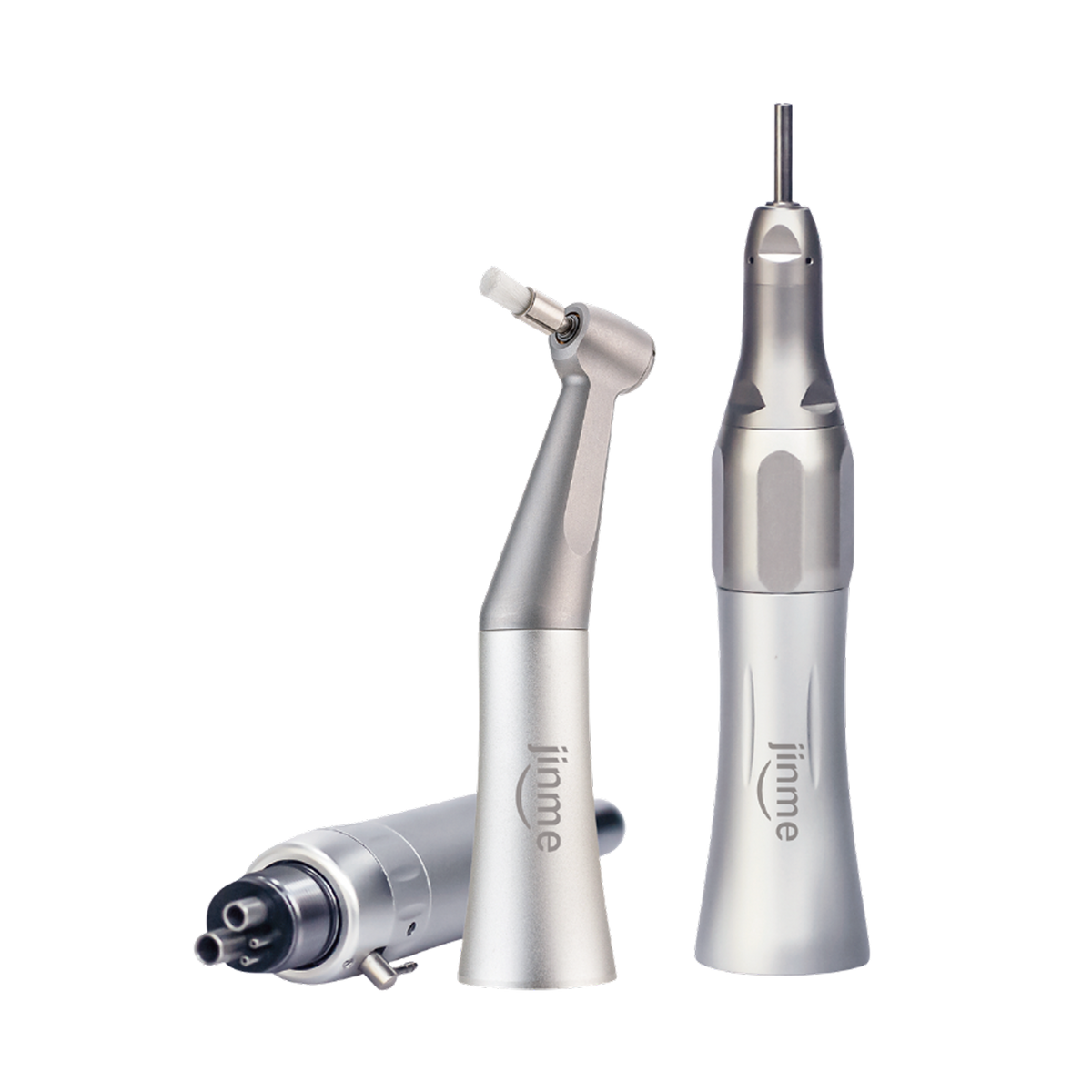

M1 low speed handpiece consists of M1-SH low speed straight handpiece, M1-CA low speed contra angle handpiece, M1-AM low speed dental handpiece motor. The machine set can be sold separately. The straight handpiece, contra angle handpiece or the motor can be sold independently. It can also be sold as a whole set (straight handpiece+contra angle handpiece+motor).
Additional information
Style: Set, Contra Angle, Straight, Air Motor
Technical parameters
Working air pressure: 0.25 (Mpa) -0.3 (Mpa)
Water pressure: 198Kpa(2Kg)
Forward speed: 18 (krpm)
Reverse speed: 16(krpm)
Torsion: 0.4 (N) -0.45 (N)
Bur dimension: Φ2.334-Φ2.355 (mm)
Water flow: 90(min/ml)-110(min/ml)
Working water pressure: 0.2 (Mpa)-0.23 (Mpa)
Noise: ≤65dB
Bur clamping method: contra angle handpiece: push type; straight handpiece: removable snap ring.
Warranty: 18 mont
Product features
- The M1 low speed handpiece adopts external water spray, so it can provide solution for the problem of no water output caused by pipe blocking. It is equipped with stainless steel snap joints with superior flexibility, thus ensuring that the water pipe will not be loose or drop from the joints during the application of the handpiece.
- The M1 handpiece adopts push type bur change which is the replacement of the original clamped bur change. This method features quicker, more convenient and time saving bur assemble and disassemble, thus saving every minute for doctors.
- The motor will stop running or be stuck because of lacking of oiling. Without the lubricating oil, the blades which lead to motor rotation will be not resistant to friction, thus generating dust. While the abrasive resistance of M1 handpiece is 50% higher than that of the others. This can directly improve the performance of the motor.
- The jitter frequency of the handpiece is quite small. The testing results show that the radial run-out is less than 0.03mm which is more suitable for various fine operation. This handpiece can be more convenient.
- The dental polishing ring is made of material from America which is treated by many steps of process. It will not be damaged after disinfection with maximally 135 degree high temperature and high pressure steam.
- This dental drill adopts ceramic bearing, cage which is made of material from UK. The two side of the bearing is equipped with sealing device which can protect the internal of the bearing from external dust and some other impurities. The inner and outer ring of the bearing after many times of circular grinding treatment can ensure its concentricity, greatly improve the dynamic performance of the bearing and prolong the service life of the bearing.
Technology & Function
low speed set
