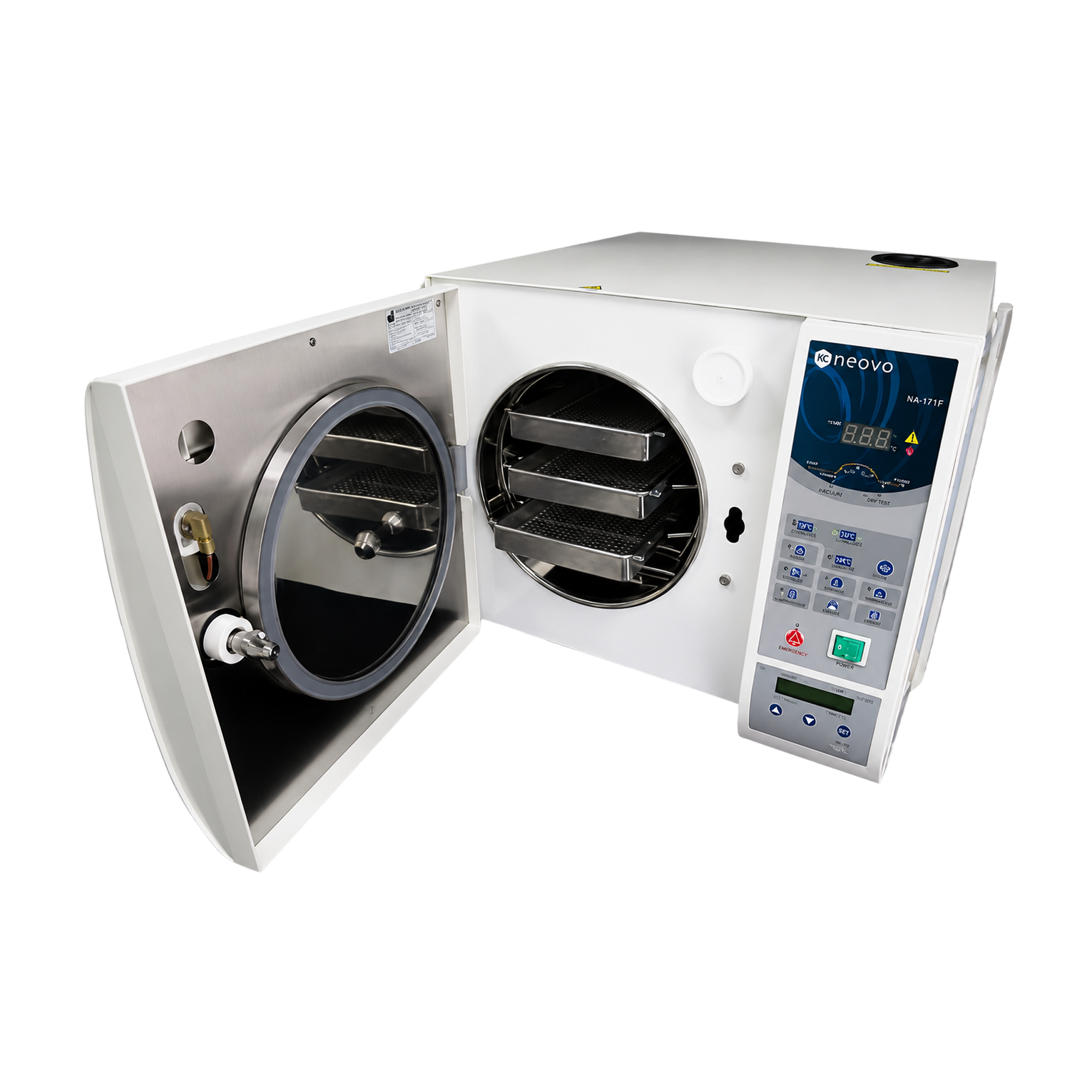

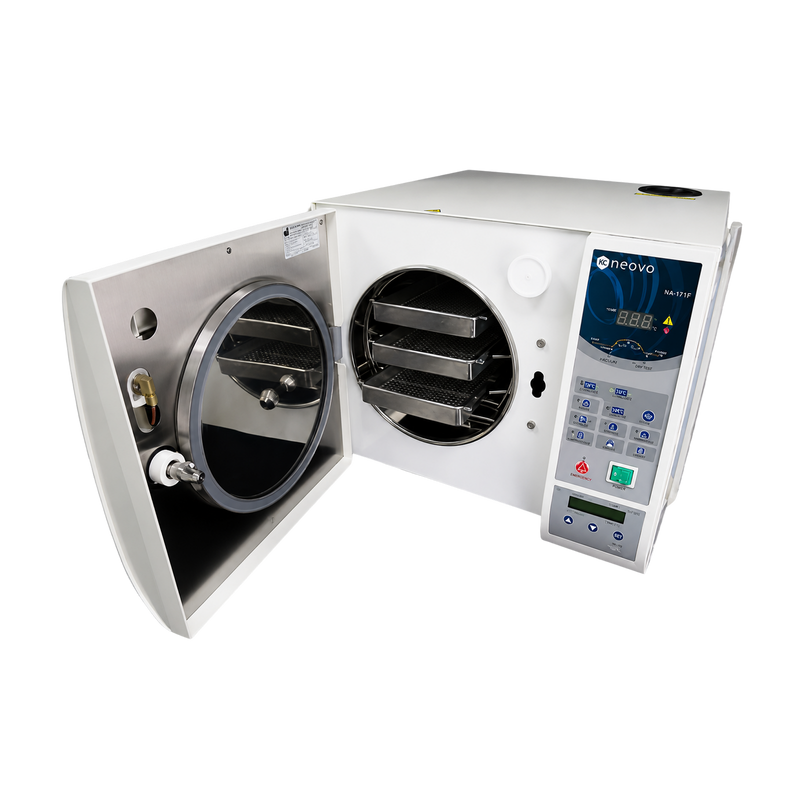

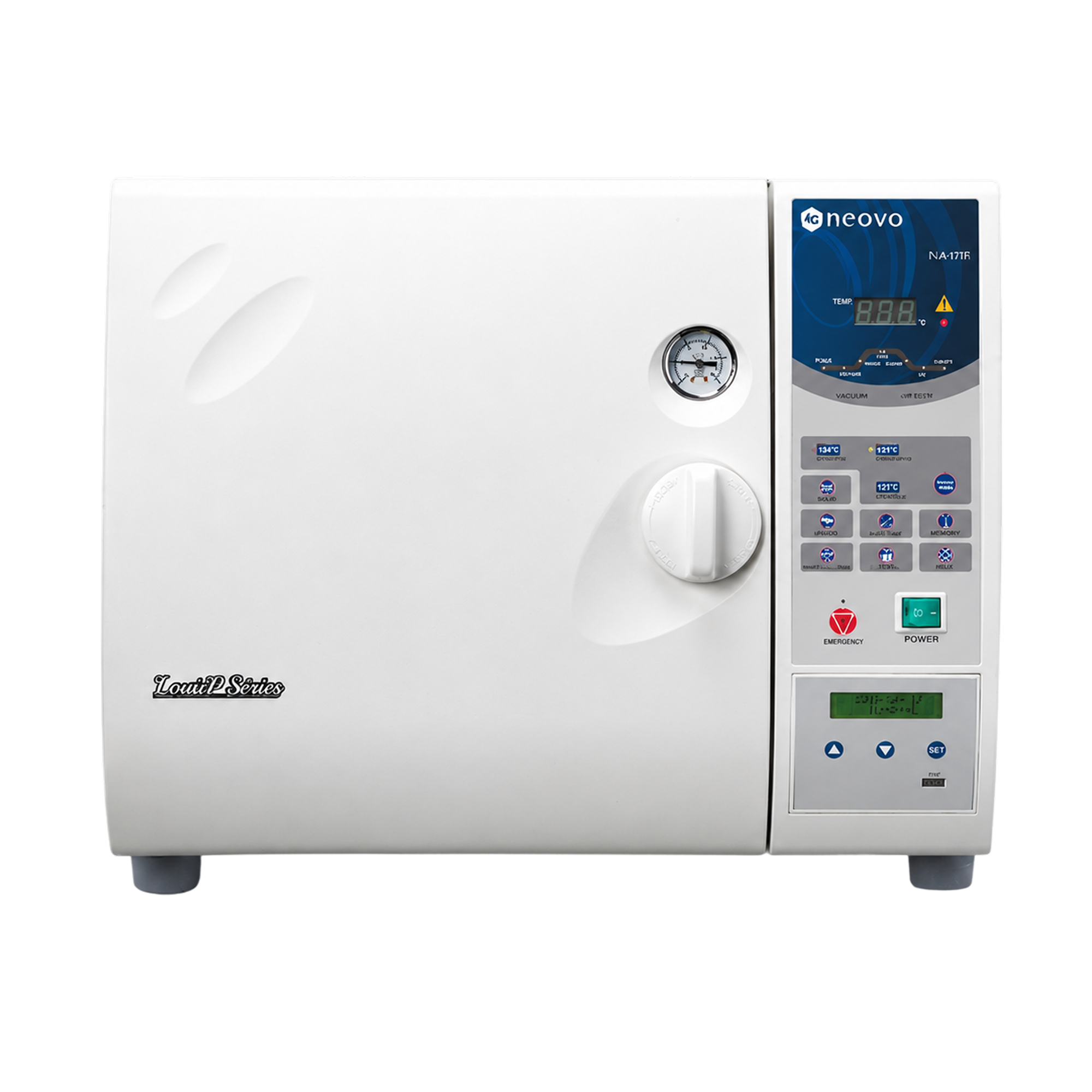

LouieP Séries TABLETOP AUTOCLAVE
The LouieP Séries tabletop autoclave is designed for dental clinics and healthcare centers that need an affordable, reliable sterilization solution for wrapped instruments, simple hollow devices, and textiles, featuring dynamic air-removal technology, pre-programmed cycles, and closed-door drying for high-efficiency operation with fewer system errors.
Choose options
SAFE & RELIABLE, EASY-TO-USE, EFFICIENT STERILIZATION
LouieP Séries tabletop autoclave is designed to be safe, reliable, and easy-to-use for dental clinics and healthcare centers that require an affordable alternative for sterilization of wrapped, simple hollow instruments and textiles. With its clear-to-see display of sterilization cycle selection and operation status indicator, LouieP Séries enables you to reduce work efforts and save operation time in every busy day at clinics.
Featuring dynamic air-removal technology, pre-programmed cycle, and closed-door drying, LouieP Séries P-M10TR allows the high-efficiency operation to sterilize wrapped instruments with fewer system errors. Built with ASME certified pressure chamber and auto-disconnect safety mechanism, it provides a safe and sterile environment for your daily operation.
KEY FEATURES
Safety
• 2-Step door opening
• Closed-door drying
• Over pressure and temperature control
• with auto-disconnect mechanism
Easy to Use
• One click sterilization
• LED screen
Efficiency
• Dynamic Air-removal Technology
• Post-vacuum drying for extra dryness
• USB data logging for sterilization cycle
report
High Quality
• FDA cleared and ASME certified pressure
chamber

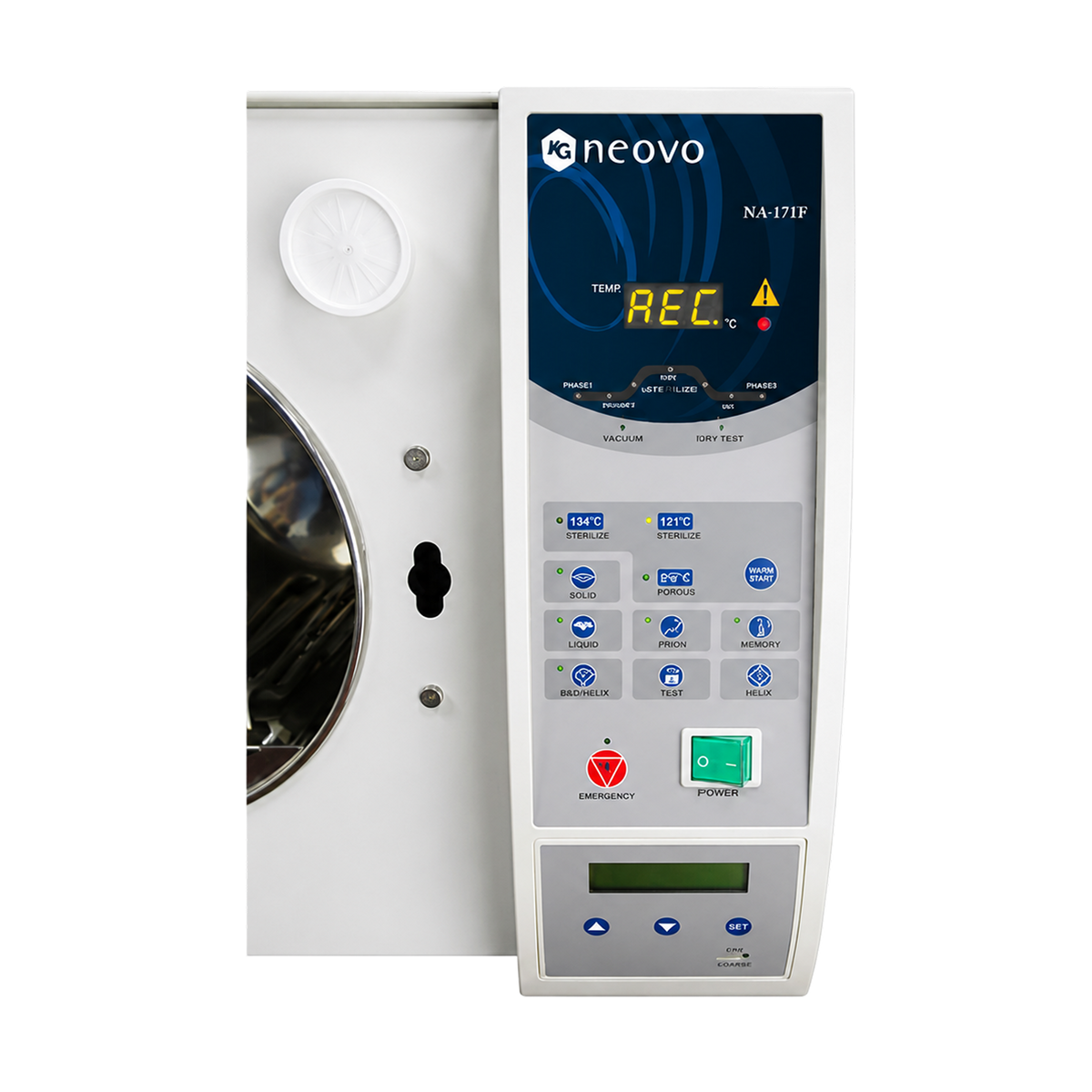

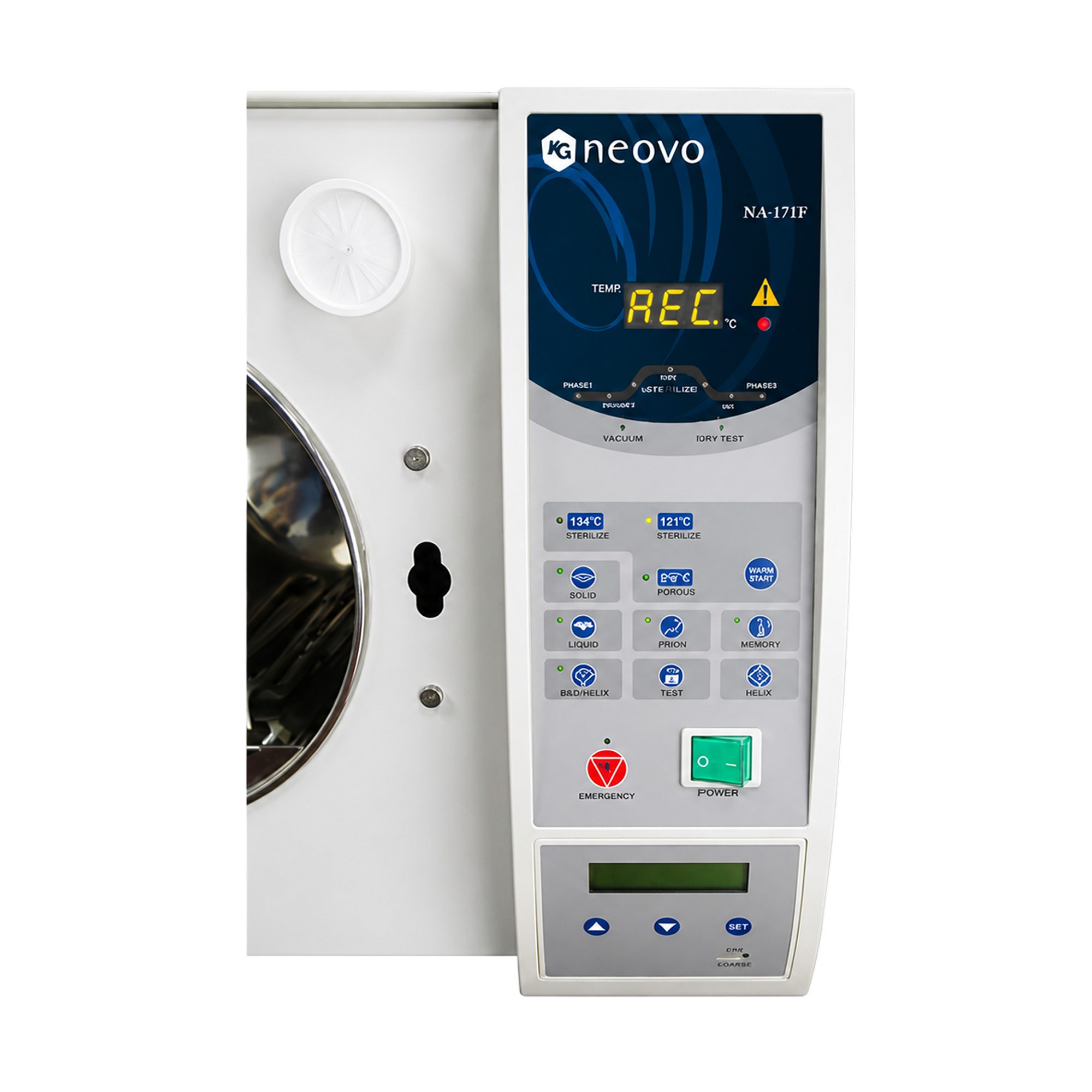

Intuitive and Clear Navigation
• Easy to use
Select the pre-programmed sterilization cycles you need by one quick click .
• Clear at a glance
LED screen shows temperature, error code, pressure, and operating status to ensure regular operation.

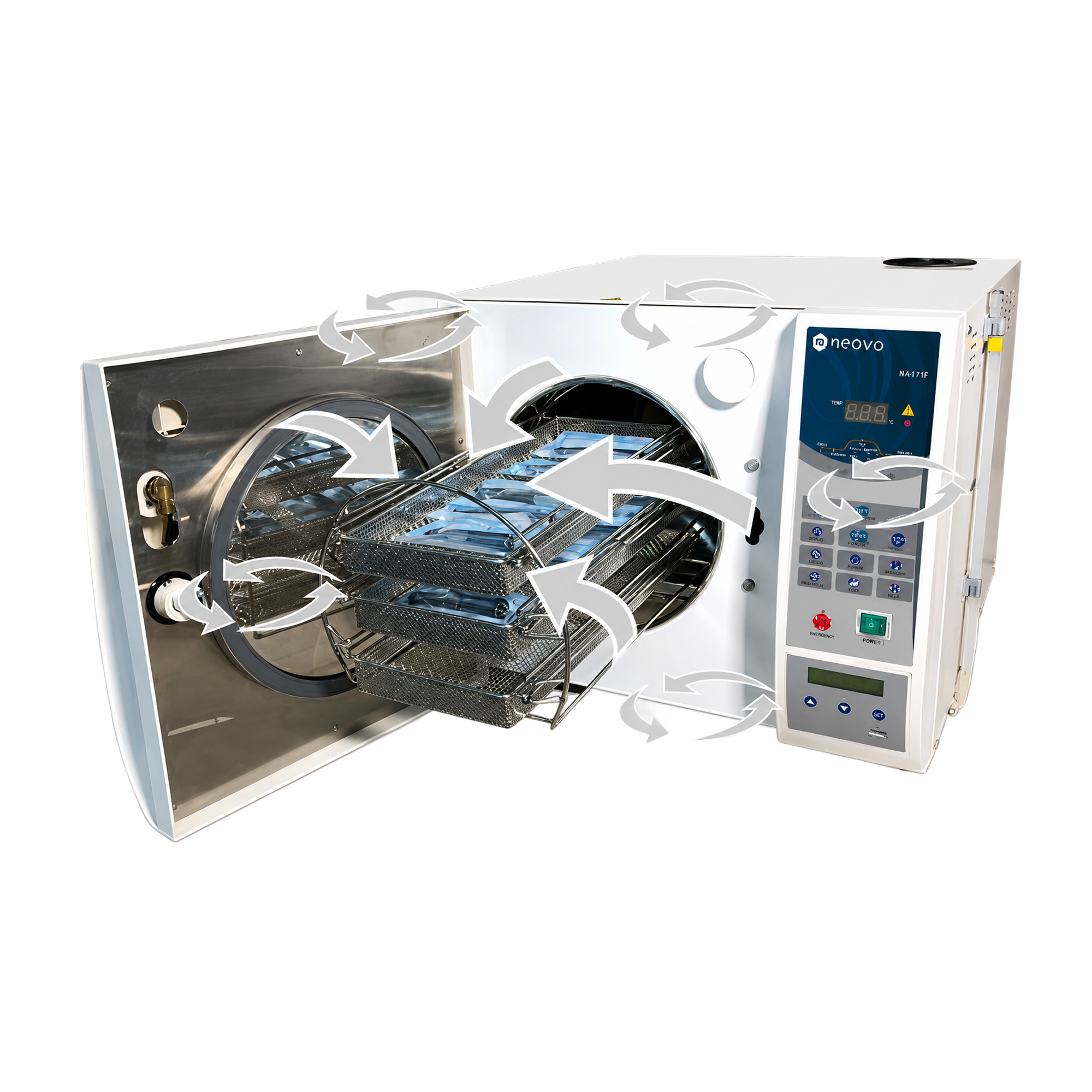

Dynamic Air-removal Technology
The vacuum pulses into the pre-sterilization stage to better pull the air and steam mixture from the packs. It’s ideal for sterilizing lumened devices, tubal and wrapped instruments, such as dental handpieces.
Safety
• Doubled Door Locking Mechanism

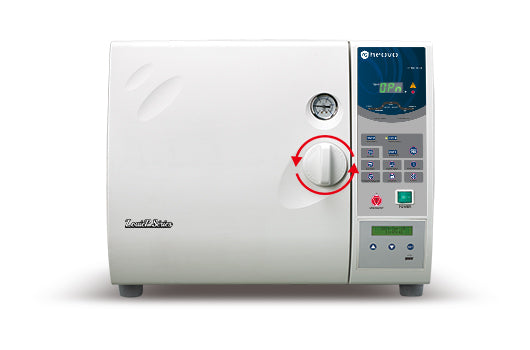

The door can only open when the sterilization cycle has been completed, followed by pressing the unlock button.
• Closed Door Drying
The door keeps closed during the drying stage to prevent re-contamination and keep everyone safe.
• Real-time Alerts & Control
– Overpressure and temperature control with the auto-disconnect mechanism.
– Emergency button to stop all operations.

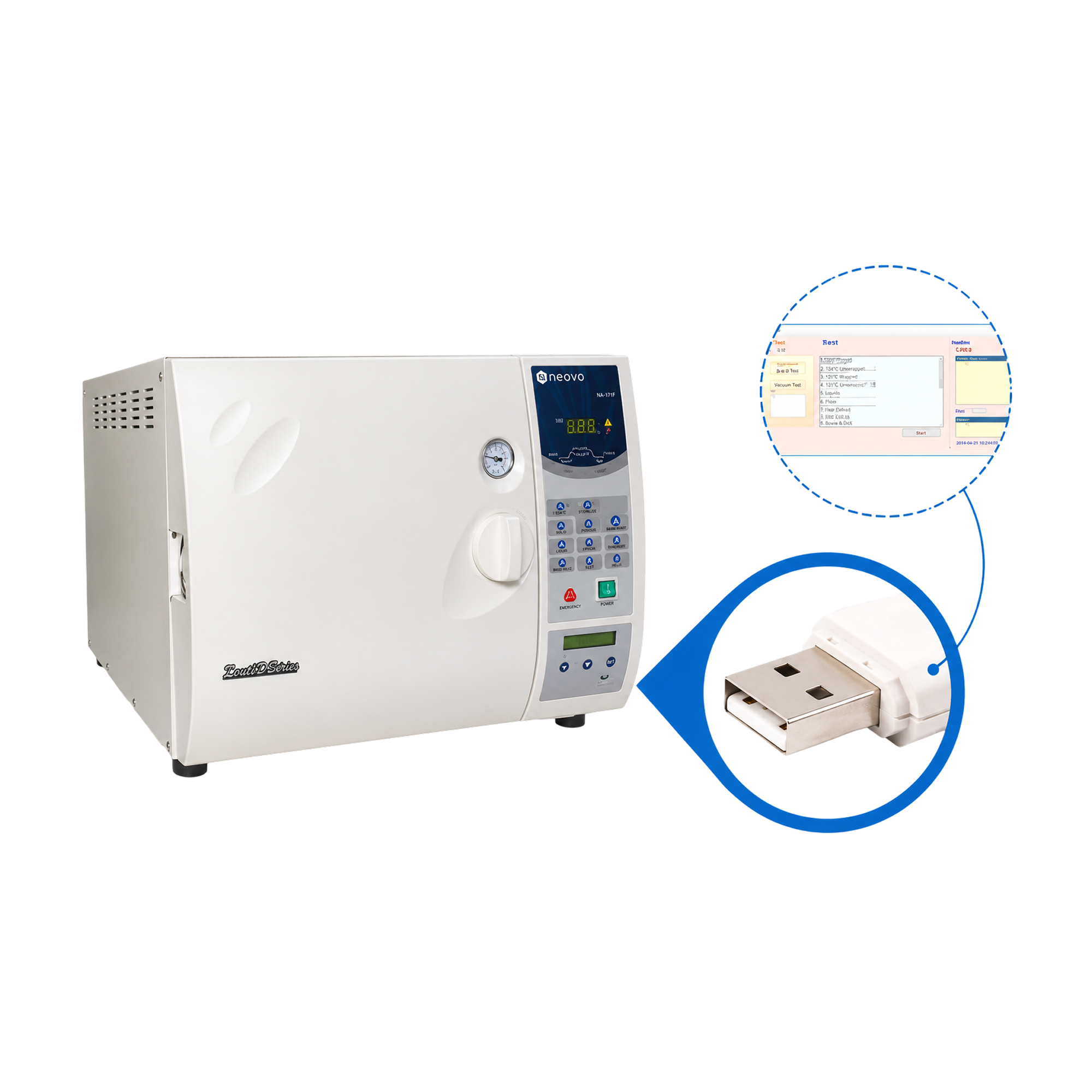

Easy Data Logging
Download your cycle records to the USB device and export the data with a free tool kit.
INCLUDED ACCESSORIES
Heater Cover
USB Flash Drive (incl. data reader software)
cleanser for chamber
Tray track with 3 stainless steel trays
Tay Holder
SPECIFICATIONS
| Model | P-M10TR |
| Chamber Size | 10.2" (26cm) Diameter x 17.7" (45cm) Depth |
| Overall Dimensions (W x H x D) | 22.1" x 17.4" x 28.6" (56.3cm x 44.2cm x 68.6cm) |

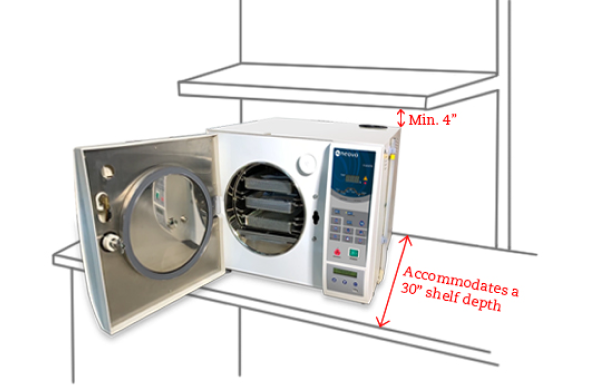

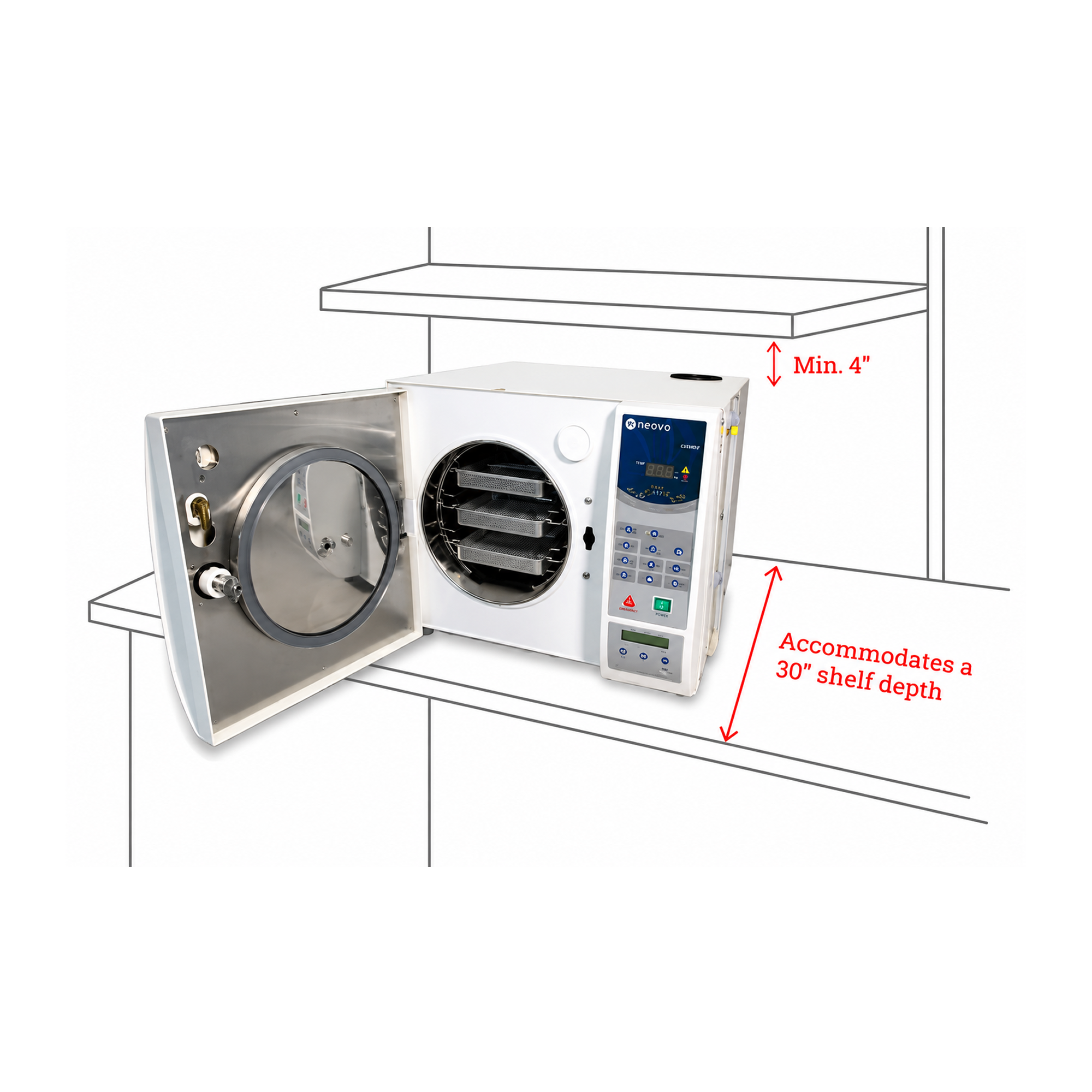

| Minimum Countertop Area (W x D) | 29" x 29.8" (73.7cm x 76.7cm) |
| Volume | 8.3Gal (24 liters) |
| Tray (W x D) | Three (6.26" x 16" / 16.9 cm x 38.1 cm) |
| Voltage / Power (heater) | 12A / 120VAC 60HZ / 1400W |
| Programmed Cycle | 270°F Unwrapped, 270°F Wrapped (Pouches), 260°F Wrapped (Packs), Handpiece, B.D. Test (Cleaning), Pump Test, Re-Dry |
| Water Reservoir Capacity & Filling Access | 1.1 Gal (4.2 liters) & Top (Rear) |
| Closed Door Drying | Yes |
| Data Logger | Yes (via USB port) |
| Unit Weight | 127.9 lbs (58 kg) |
| Shipping Weight | 134.5 lbs (61 kg) |
| Safety Standards |
IEC 61010-1, 3rd Edition IEC 61010-2-040:2016 ASME Boiler & Pressure Vessel Code, Section VIII, Division 1 |
| Certifications | ANSI/AAMI ST55:2016 |
| Warranty | 2 year limited |
