Remedi Intraoral Sensor


 The Remedi Intraoral Sensor offers dental practices a straightforward, cost-effective pathway to high-quality digital radiography without sacrificing clinical performance. Featuring a high-resolution CMOS detector and a patient-friendly, rounded-edge design, it delivers clear, diagnostic-grade images that support accurate treatment planning and efficient workflow.

Remedi Intraoral Sensor
Remedi Intraoral Sensor Sale price$0.00 USD

Comfort & Durability& Fast Rate

FEATURES OF THE PRODUCT

Image Quality

Less Graininess: Cleanest image on the market
Industry: Leading Contrast Resolution – Best at the penny test
Industry: Leading spatial resolution- 19-micron pixel size

Patient Comfort

Rounded corners : 6.0mm radius of corner curvature
Thin Sensor Plate : 5.4mm thick [ less than 1/4”]
Low Profile Button : 6.0mm

Designed for Durability

Thinner Cord : Direct USB from sensor plate to computer
Sturdier Cord Jacket : Fewer wires enables greater protection
Protected Against Fluids/Contaminants : Sealed cord / sensor junction
Safer Vertical Bitewings : Robust, Bonded strain relief
Repair Option: Cord Serviceability

Ergonomic Design

Broad Range of Acceptable Exposure: Superior electronic gran control
Snag-Resistant Cord: No interface box or cord bulge
Easy Cabling: USB cord can be extended dozens of feet
Standard holder Systems: Duphamed, Rinn, TrollByte, and others

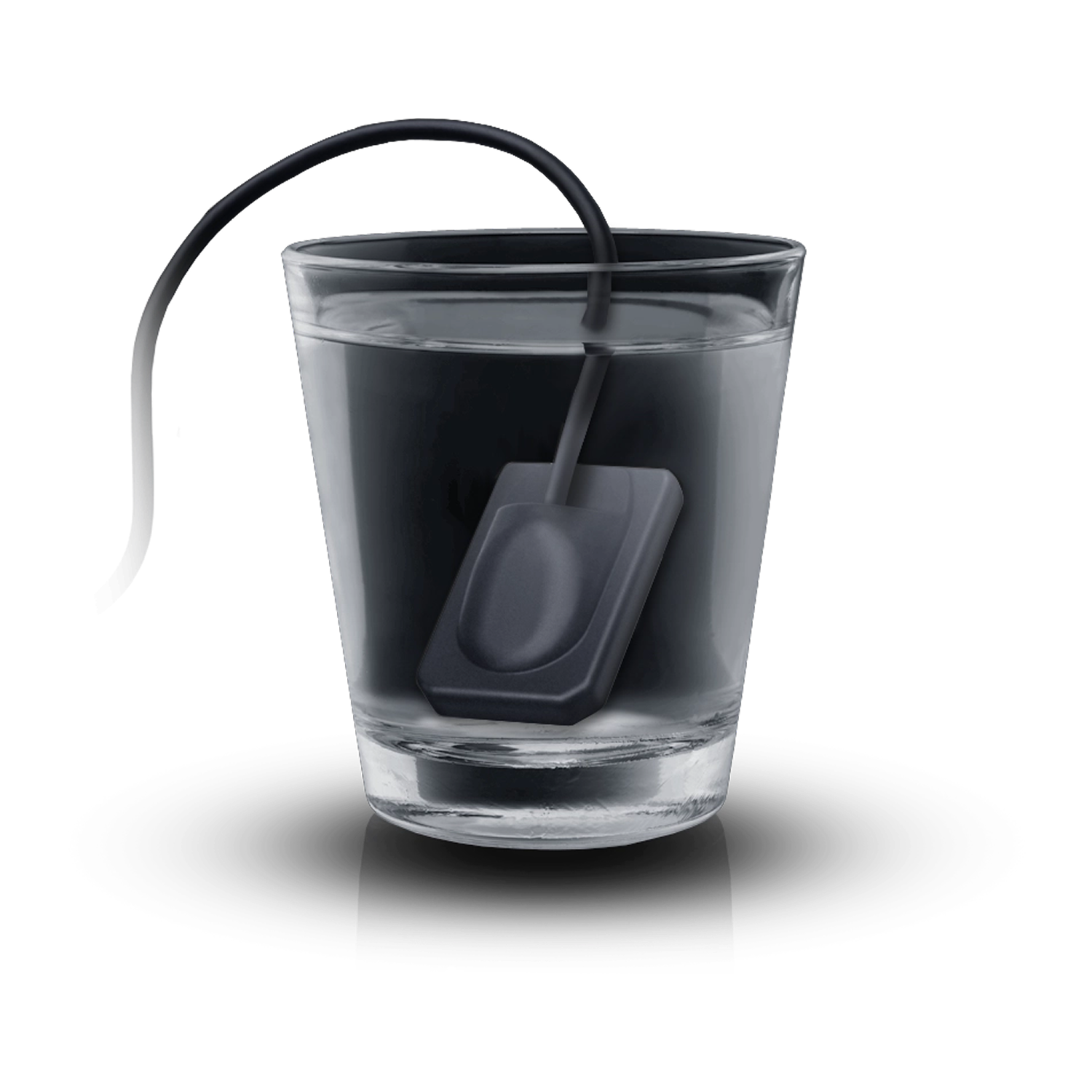

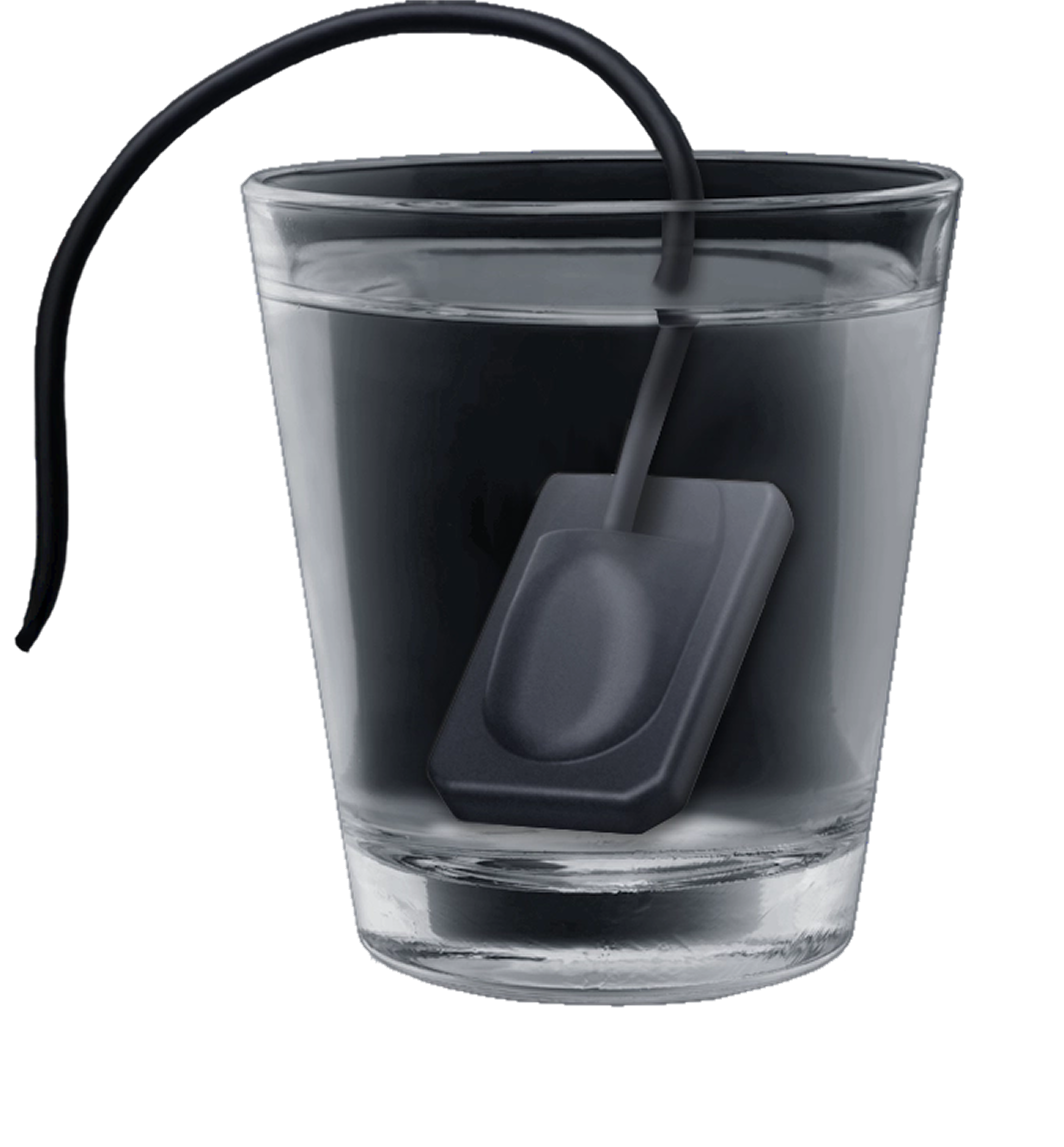

Easier Cleaning: Immersible in glutaraldehyde and other disinfectant

Fast Response Rate

CSI Scintillator
High Resolution
Advanced Image Processing Algorithm
Easy to Use
Increased Patient Comfortableness and Ergonomic Design
Easy Connection Using Twain Driver

Advantage Technology

THREE REDUCTION TECHNOLOGIES

Image Quality

Create clear, high definition images Higher sensitivity and better resolution

Patient Comfort

An ergonomic design considering the morphological and physiological characteristics of humans

Round corners and thin sensor plates that are easy to put in patient mouth

Easy to use

CMOS X-ray sensors to achieve the best quality images at the lowest possible dose

Internal shielding protect the operator

Performance & Specifications

Innovative Product

IoDS-2401

Outside Dimensions
39 × 25 mm
Image Size
30 × 20 mm
Image Resolution
20 lp/mm
Pixel Size
20 × 20 um
Pixel Pitch
20 [HxV]
Number of Total Pixels [HxV]
1.5 Megapixels
Number of Effective Pixels
1000 × 1500
Sensor Type
CMOS Image Sensor
Scintillator Type
CsI [TI]
Interface
USB 2.0
Frame Rate
1.4 fps
IoDS-2401 Technical Drawing

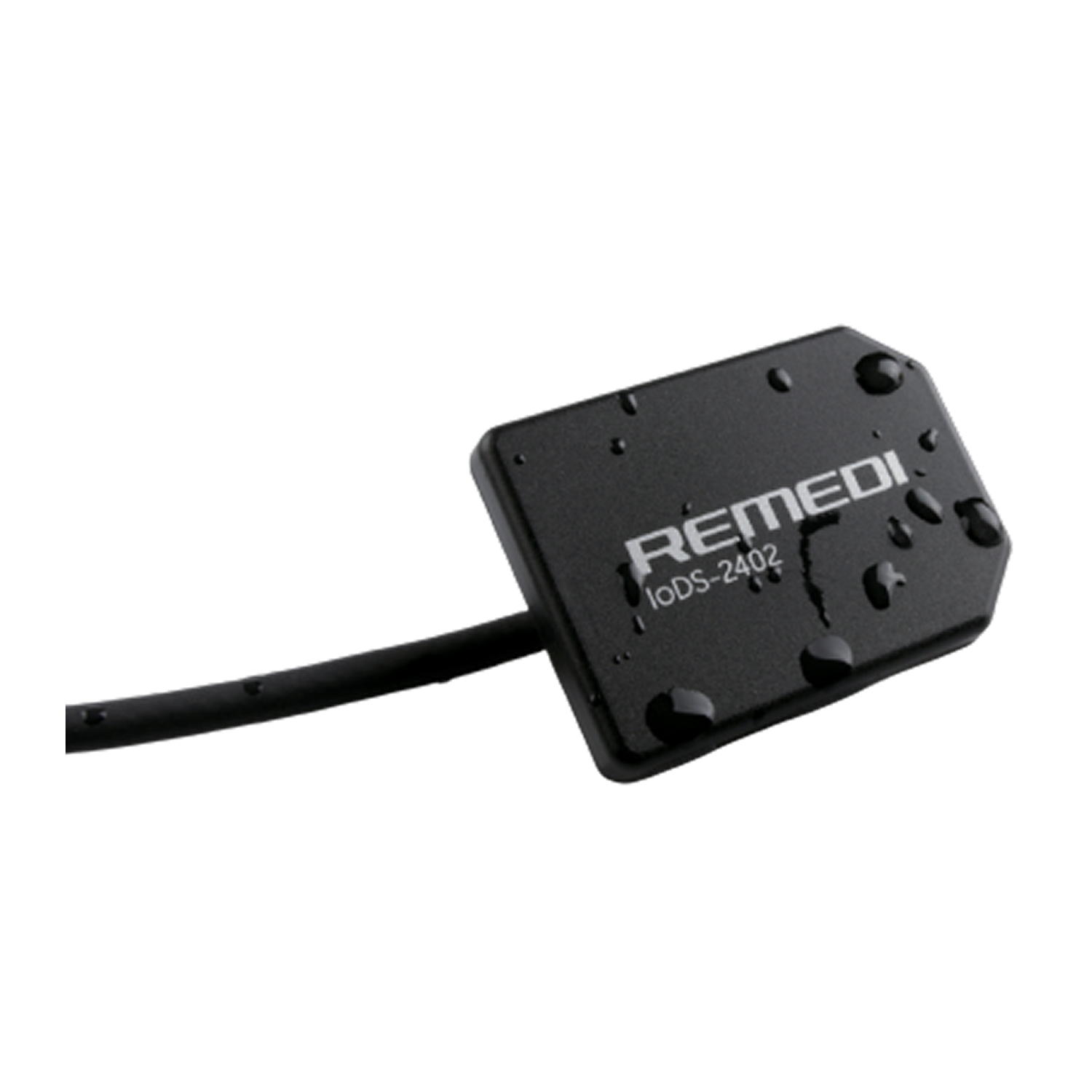

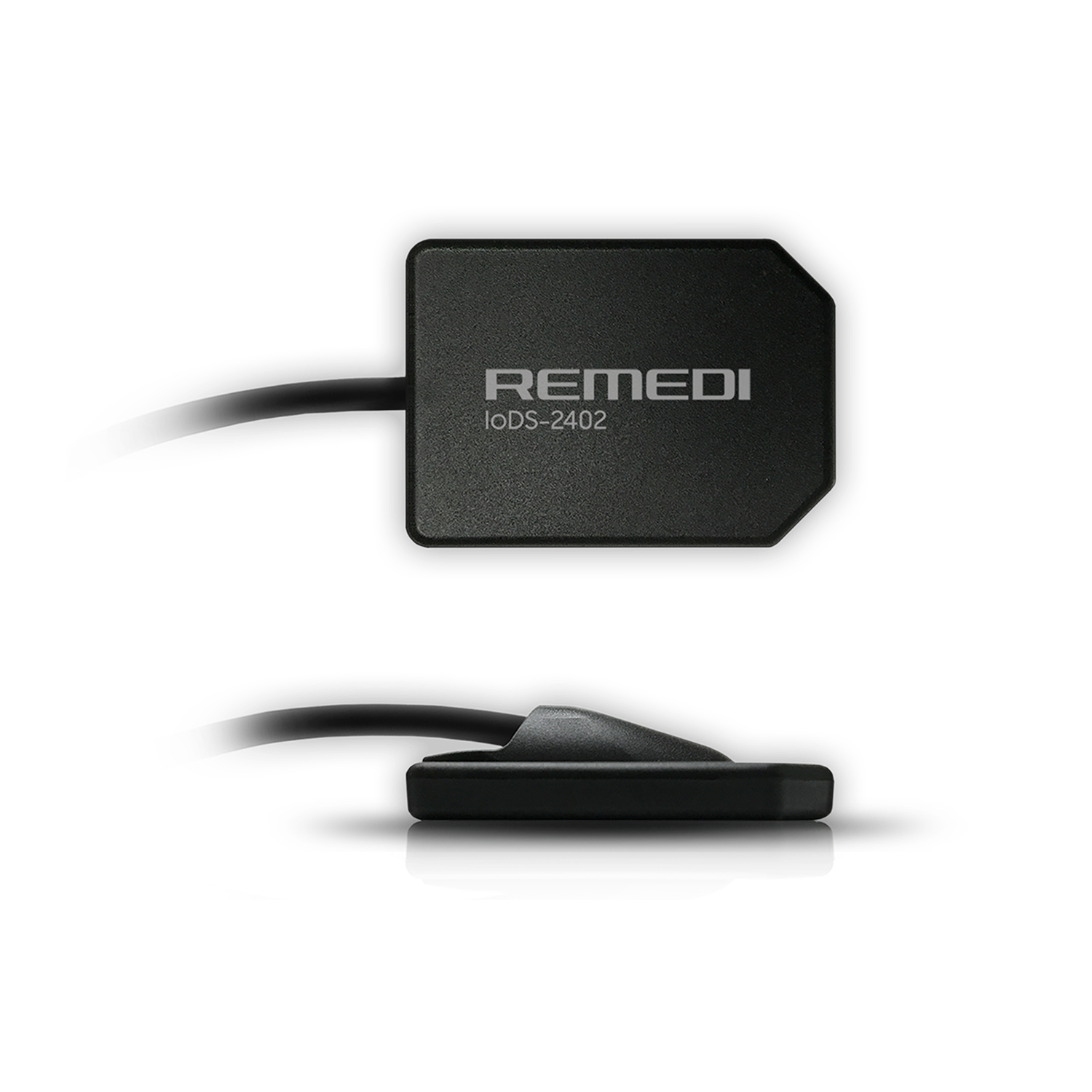

IoDS-2402

Outside Dimensions
42 × 30 mm
Image Size
34 × 26 mm
Image Resolution
20 lp/mm
Pixel Size
20 × 20 um
Pixel Pitch
20 [HxV]
Number of Total Pixels [HxV]
2.2 Megapixels
Number of Effective Pixels
1300 × 1700
Sensor Type
CMOS Image Sensor
Scintillator Type
CsI [TI]
Interface
USB 2.0
Frame Rate
1.0 fps
IoDS-2402 Technical Drawing
