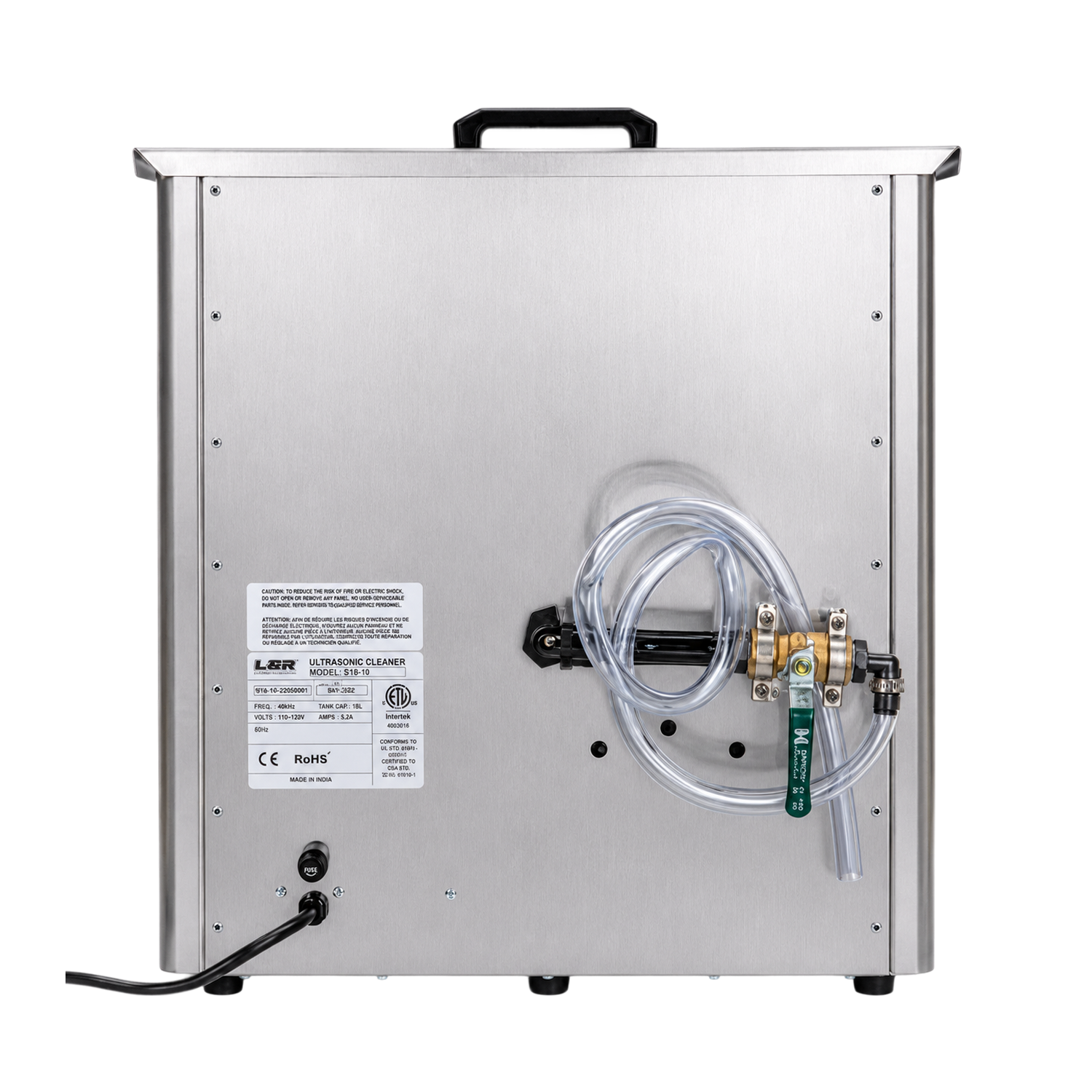

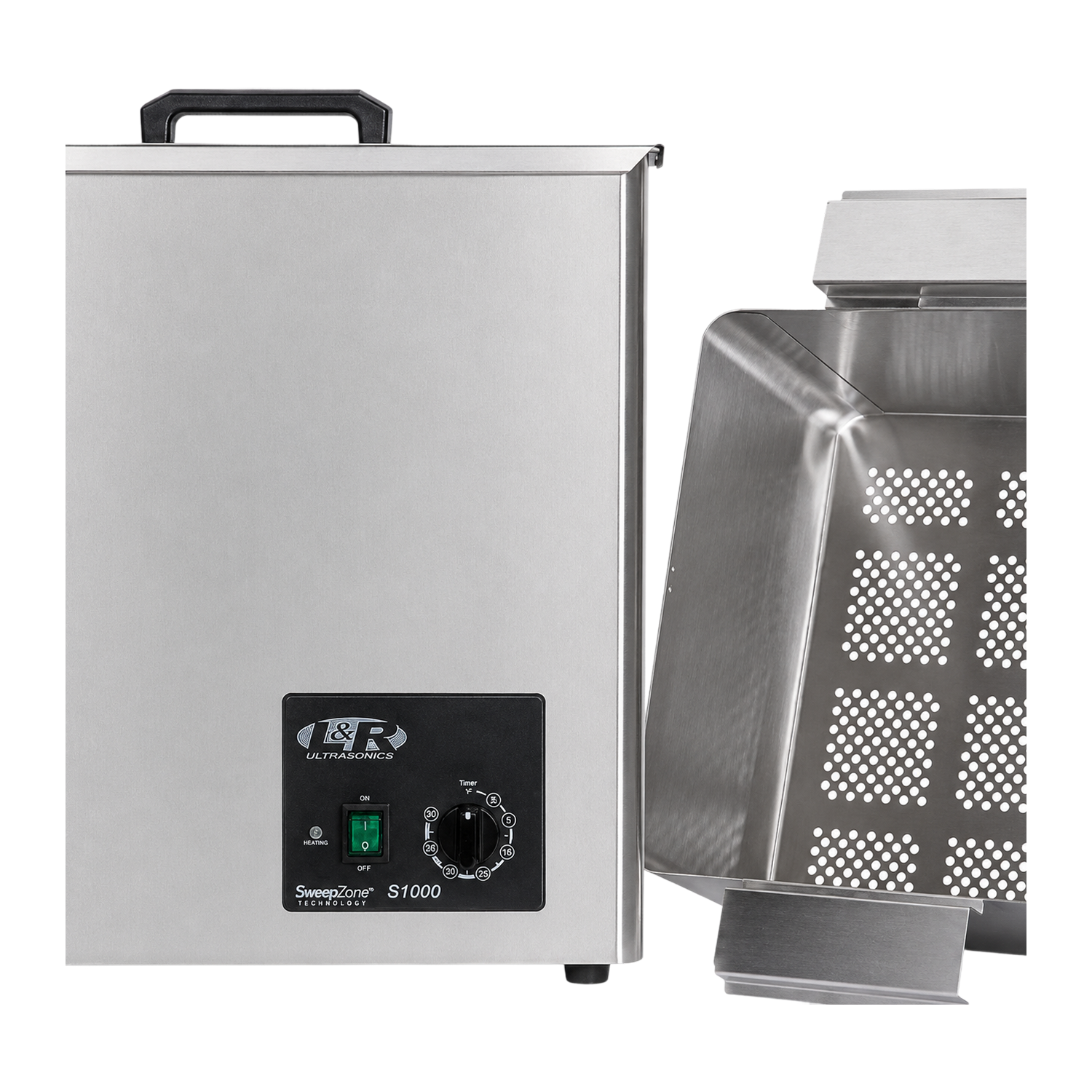

SweepZone® 1000 w/Timer & Drain
The SweepZone® 1000 w/Timer & Drain is L&R's highest-capacity SweepZone unit, featuring an 11.62-gallon (44L) tank with internal dimensions of 14"L x 16"W x 10"D purpose-built for the most demanding high-volume dental, medical, and industrial cleaning environments where large cassette loads, bulky instruments, and continuous throughput are the daily norm.
Choose options
All SweepZone Ultrasonic Cleaning Systems operate with a special cleaning wave of +/- 2KHz energy that literally sweeps back and forth throughout the ultrasonic tank. The innovative L&R SweepZone Technology incorporates Pulse Width Modulation (PWM), which enables the machines to sense cleaning loads, solution levels and voltage fluctuations.
SweepZone Ultrasonic Cleaning Systems automatically adjust to different conditions in order to create more uniform cleaning power by eliminating hot spots and weak areas in the tank. This results in unsurpassed cleaning performance with every application.
Durable stainless steel housing and tank are corrosion resistant and long lasting.
Designed and Manufactured in the USA.
Product Specifications
Input Power
500 Watts
Amps
4.3 Amps
Output Cleaning Frequency
43kHz (+/- 2kHz)
Tank Capacity
11.62 Gal
44.0 L
Internal Tank Dimensions
14.0 x 16.0 x 10.0 in
35.6 x 40.6 x 25.4 cm
Overall Dimensions
17.0 x 19.0 x 20.0 in
43.2 x 48.3 x 50.8 cm
Additional Voltages Available
Stainless Steel Cover Included
Solutions by Industry
SweepZone® Ultrasonic Cleaning Systems Documents
Ultrasonic Cleaning System Instructions for Use
DownloadAccessories
DownloadCountertop Template for Recessed Machine - Dimensional Drawing
DownloadSweepZone® Remote Digital Timer - Dimensional Drawing
DownloadSweepZone Recessed Ultrasonic Cleaning Systems - Product Literature
DownloadSweepZone Ultrasonic Cleaning Systems - Product Literature
Download
