Description
Operatory System
|
Part number
|
Description
|
|---|---|
|
A9122001 |

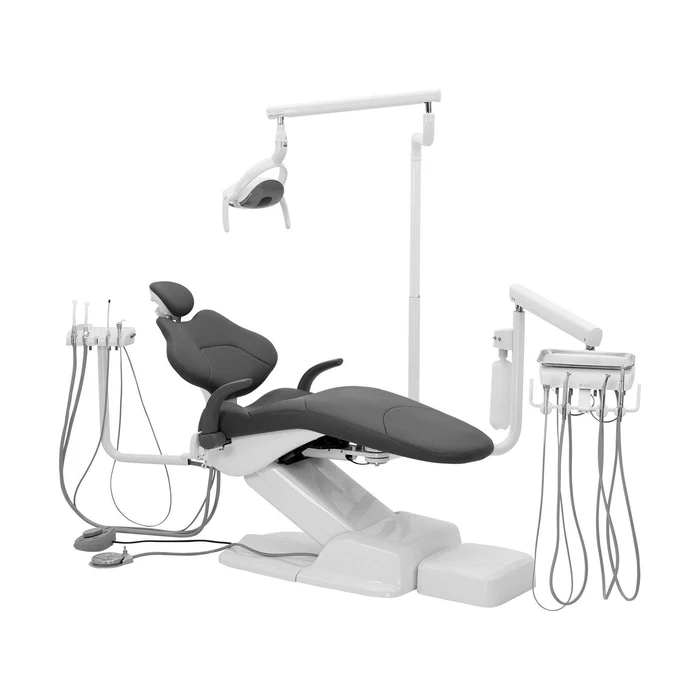

AJ12 Classic 200
Left/right swing Operatory Package |
Standard Features
AJ12 Electromechanical chair with 3 programmable positions,
Articulating headrest, Swing up/down aluminium armrest,
Wide backrest, upgraded fiber leather,
Steel backrest stand, Steel base plate, Chair safety switch,
One touchpad, Foot control
Swing Classic dentist’s control head with 3 auto H.P. control,
Individual water coolant controls,
Master handpiece air coolant adjustment,
Asepsis handpiece tubing,
Master on/off switch, 1 doctor syringe,
Wet/Dry foot control, Stainless steel tray with non-slip pad,
City/bottled water system, 5 ft umbilical,
Junction box with air/water filters, regulators, master shut-off valves,
Chair mounted swing rear assistant vacuum package
Water outlet and air QD on assistant tray
Solids collector
2HVE, 1SE, 1 syringe
Swing mount LED light with sensor control, 3 level intensity adjustment
Package includes
|
Part number
|
Description
|
|---|---|
|
A091201 |
AJ12 EL Chair |
|
A0712003 |
Classic200 delivery system |
|
A0502521 |
Classic Swing mount dentist's control |
|
A0332303 |
Classic Swing mount assistant vacuum package |
|
A0603600 |
Swing mount Whale LED light |
|
A11204 |
Chair Adapter D |
Options
|
Part number
|
Description
|
|---|---|
|
A121532 |
HP Fiber optic system with 1 tubing (6 pin) |
|
A121533 |
HP Fiber optic system with 2 tubings (6 pin) |
|
A121712 |
Touch pad for Classic delivery tray |
|
A120501 |
ADS post mount Monitor bracket |
|
A120401 |
Built-in scaler |
|
A120301 |
Built-in curing light |
|
A121902 |
Additional umbilical per foot for Classic 200 |
|
A121715 |
Amber II LED light |
|
A0502532 |
Continental dentist's control |
|
A080103 |
D3 Doctor stool |
|
A080224 |
N4 Assistant stool |
|
8018895 |
Additional 4th handpiece tubing |
|
A121963 |
Bien Air MCX Built In System without touchpad |
|
A121973 |
Bien Air MCX Built In System with touchpad |
|
Packing Dimensions (L*W*H)
|
|
Weight
|
|---|---|---|
|
Chair |
47.6*30.5*31.3" |
326 lbs |
|
Upholstery |
50.4*25*8.9" |
32.5 lbs |
|
Classic Dentist's control |
30.4*19.1*12" |
32.5 lbs |
|
Swing mount assistant vacuum package |
33.9*30.8*8" |
49 lbs |
|
Classic Junction Box |
16*15.7*6.8" |
11 lbs |
|
Dental Light |
31.1* 18.1*7.1" |
20.6 lbs |
AJ12 Classic 200
Dimensions
