Description
Operatory System
Part number |
Description |
|---|---|
A9164004 | AJ16 Beyond 400 |
Standard Features
- AJ16 Luxury hydraulic chair, with 3 programmable positions,
- Double articulating headrest, Swing up/down aluminium armrest,
- Wide backrest, upgraded fiber leather, Cast iron chair frame,
- Cast aluminium backrest stand, Cast aluminium base,
- 60 degrees seat rotation, chair safety switch,
- One touchpad, Foot control
- Swing Beyond dentist’s control head, Standard touchpad,
- Cast aluminium delivery head base, double pivot delivery head with
3 auto H.P.control - Individual water coolant controls
- Master handpiece air coolant adjustment,Asepsis handpiece tubing,
- Master onloff switch, 1 doctor syringe,
- Wet/Dry foot control,Stainless steel tray with non-slip pad,
- City/bottled water system, 5 ft umbilical,
- Junction box with air/water filters, regulators, master shut-offvalves.
- Chair mounted swing rear assistant vacuum package,
- Assistant touchpad, Water outlet and air QD on assistant tray,
- Solids collector, 2 HVE,1SE, 1 syringe
- Swing mount LED light with sensor control,3 level intensity adjustment
Package includes
Part number |
Description |
|---|---|
A091602 | AJ16 Hydraulic Chair |
A0724003 | Beyond400 delivery system |
A0502551 | Beyond Swing mount dentist's control |
A0332302 |
Beyond Swing mount assistant vacumm package Chair mounted swing rear assistant vacumm package, Assistant touchpad, 2 HVE, 1SE, 1 syringe |
A0602673 | Swing mount Amber II LED light |
A11204 | Chair adapter D |
Options
Part number |
Description |
|---|---|
A121532 | HP Fiber optic system with 1 tubing (6 pin) |
A121533 | HP Fiber optic system with 2 tubings (6 pin) |
A11302 | Swing mounted monitor arm and bracket |
A120401 | Built-in scaler |
A120301 | Built-in curing light |
A121902 | Additional umbilical per foot for Beyond 200/Beyond 400 |
A0502532 | Continental dentist's control |
A080103 | D3 Doctor stool |
A080224 | N4 Assistant stool |
8018895 | Additional 4th handpiece tubing |
8602759B | AJ16 armrest cover |
A121963 | Bien Air MCX Built In System without touchpad |
A121973 | Bien Air MCX Built In System with touchpad |
Packing Dimensions (L*W*H) |
Weight | |
|---|---|---|
Chair | 47.6*30.5*31.3" | 366 lbs |
Upholstery | 50.4*25*8.9" | 26.8 lbs |
Beyond Dentist's Control | 30.8* 27.1*14.1" | 44 lbs |
Swing mount assistant vacuum package | 33.9 30.8*8" | 49 lbs |
Beyond Junction box | 19.4*17.8*8.8" | 19 lbs |
Dental Light | 31.1*18.1*7.1" | 20.6 lbs |

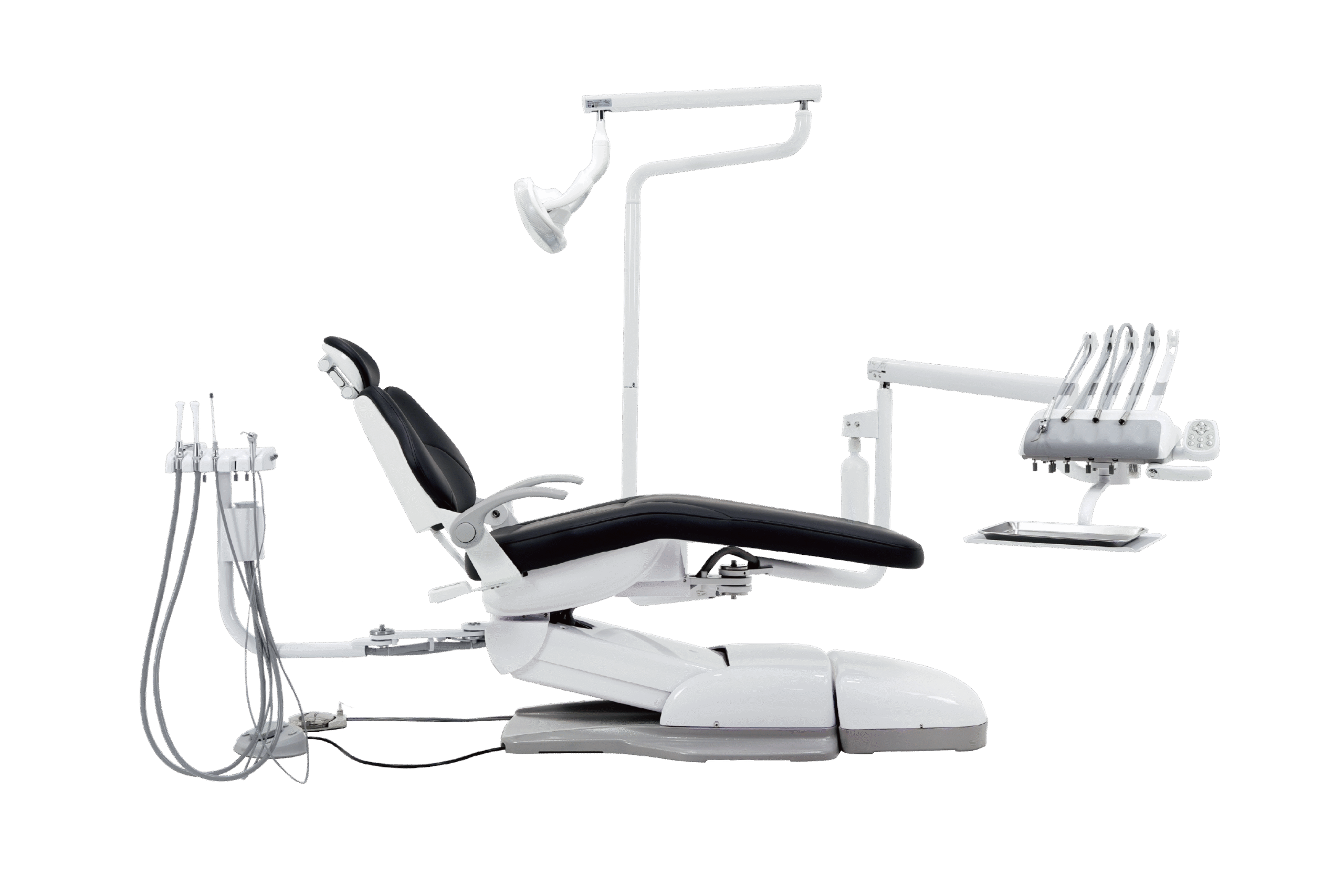

AJ16 Beyond 400

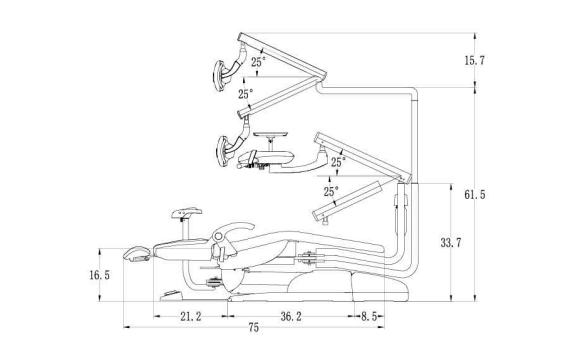

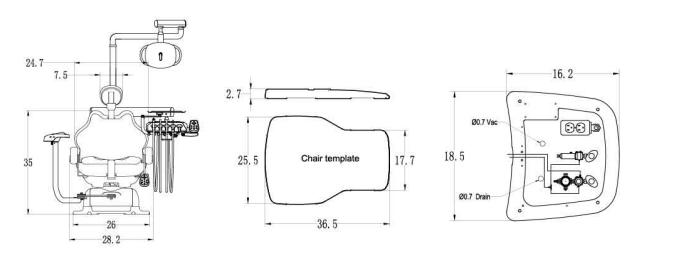

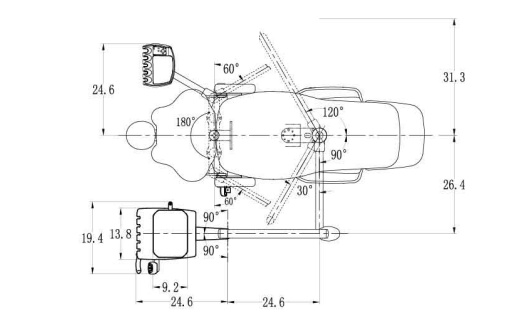

Dimensions
