AllPractice Solutions
AJ18 Beyond 400 <h3 style="color:#ff8516; font-size:22px !important; line-height: 24px !important;">ADS</h3>

AJ18 Beyond 400

ADS

$0.00

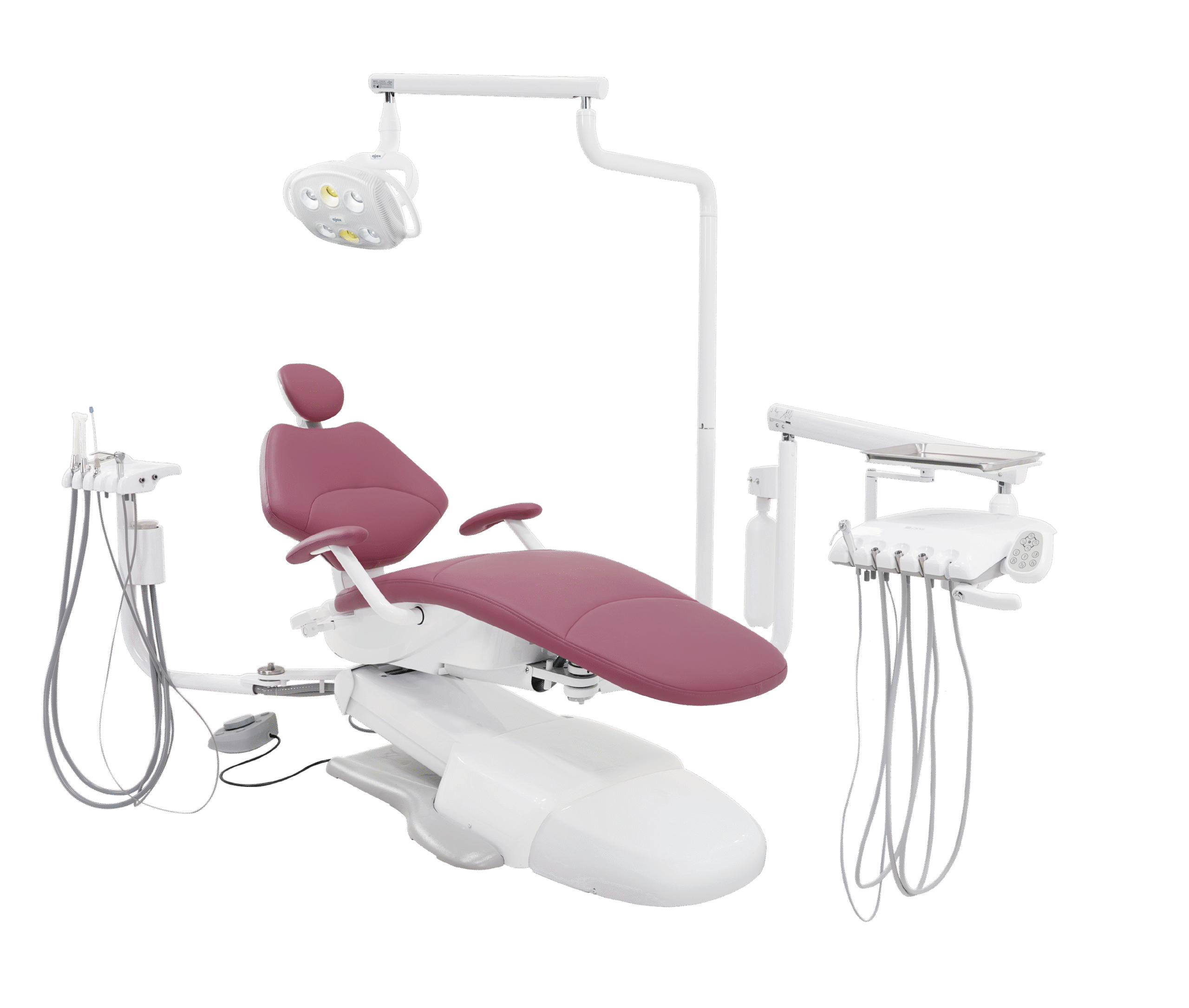

AJ18 Beyond 400

ADS

Interested? Let us know your preferences and we would be happy to help you with the pricing and product details.

Request more info
GET A QUOTE

Contact Us for More Information

Description

Operatory System

Part number
Description

A9184002

AJ18 Beyond400
Left/Right Swing Operatory Package

Standard Features

  • AJ18 hydraulic chair with 3 programmable positions,
  • Double articulating headrest,
  • Swing up/down iron armrest,
  • Cast iron chair frame.
  • Iron backrest stand.
  • Cast aluminum base,
  • Wide backrest, upgraded fiber leather,
  • 60 degrees seat rotation, chair safety switch,
  • One touchpad, Foot control
  • Beyond luxury dentist’s control head, Standard touchpad,
  • Cast aluminium delivery head base, double pivot delivery head,
    with 3 auto H.P. control,
  • Individual water coolant controls,
  • Master handpiece air coolant adjustment,
  • Asepsis handpiece tubing,
  • Master on/off switch,1 doctor syringe, Wet/Dry foot control,
  • Stainless steel tray with non-slip pad, Flex arm air brake switch
  • Beyond 400 Post mounted utility (PMU) with silver side box,
  • City water/bottled system, Water outlet and air QD,
  • Swing assistant tray with touchpad,
  • Solids collector.
  • 2 HVE,1SE,1 syringe,
  • Alumium base Junction box with air/water filters,regula tors,
    master shut-off valves,
  • 5 ft umbilical
  • Post mount LED light with sensor control, 3 level intensity
    adjustment

Package Includes

Part Number
Description

A091802

AJ18 Hydraulic Chair
AJ18 wide backrest hydraulic chair with 3 programmable postions and fiber leather

A0724005

Beyond400 Delivery system with AJ18 Junction box
Beyond 400 Left/Right Swing Delivery System with 3 auto HP control, dentist touchpad, bottled water system, Swing assistant vac pac with 2-HVE, 1SE and 1 syringe, assitant touchpad

A05025501

Beyond Swing mount dentist's control with AJ18 Junction box
Swing Beyond dentist's control head, Standard touchpad, Cast aluminium delivery head base, double pivot delivery head, 3 auto H.P.control, 1 doctor syringe, Wet/Dry foot control, Stainless steel tray, City/bottled water system, 5 ft umbilical, Junction bax with valves

A0332302

Beyond Swing mount assistant vacumm package
Chair mounted swing rear assistant vacumm package, Assistant touchpad, 2 HVE, 1SE, 1 syringe

A0602673

Swing mount Amber II LED light
Swing mount touchless sensor Amber II LED Dental Light with 24" light post and swing compass arm

A11204

Chair adapter D

Options

Part Number
Description

A121532

HP Fiber optic system with 1 tubing (6 pin)

A121533

 HP Fiber optic system with 2 tubings (6 pin)

A120501

ADS post mount Monitor bracket

A120401

Built-in scaler

A120301

Built-in curing light

A121901

Additional umbilical per foot for Beyond 300/Beyond 301

A0502532

Continental dentist's control

A080103

D3 Doctor stool

A080224

N4 Assistant stool

8018895

Additional 4th handpiece tubing

A121963

Bien Air MCX Built In System without touchpad

A121973

Bien Air MCX Built In System with touchpad

91800C

Comfort kit (Heading, Massage, Air lumbar)
Packing Dimensions (L*W*H)
Weight

Chair

48.1*32.3*37.6"

346 lbs

Upholstery

50.4*9.3*25"

17.6 lbs

Beyond Dentist's Control

30.8* 23.1*14.1"

44 lbs

Swing mount assistant vacuum package

33.9 30.8*8*

49 lbs

Beyond Junction box

19.4*17.8*8.8"

19 lbs

Dental Light

31.1 18.1 7.1"

20.6 lbs

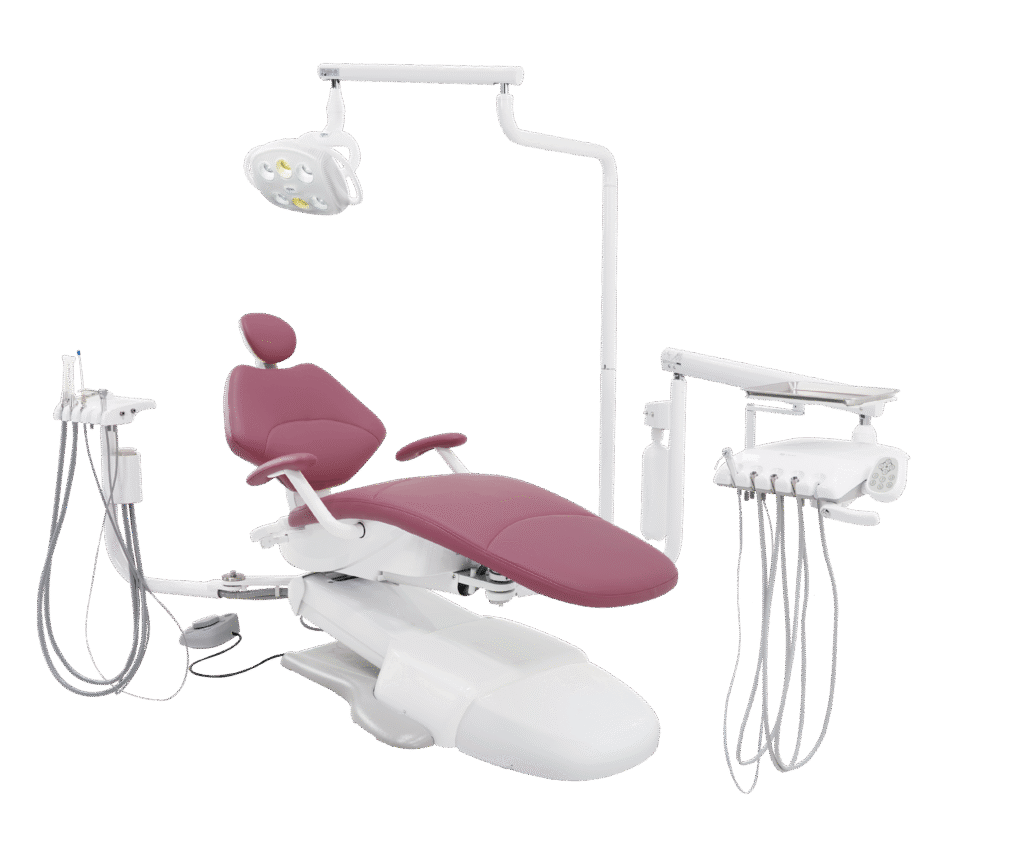

AJ18 Beyond 400

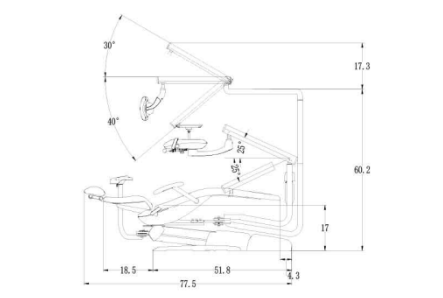

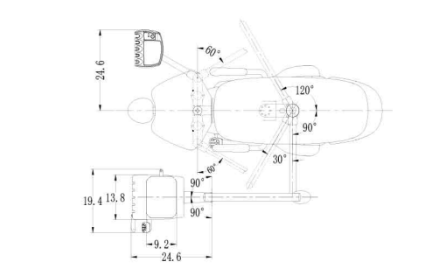

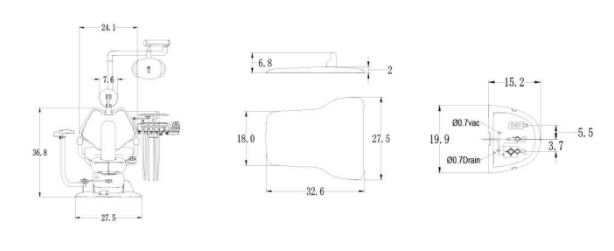

Dimensions
