Description
Operatory System
Part number |
Description |
|---|---|
A9184012 | AJ18 Beyond400 |
Standard Features
- AJ18 hydraulic chair with 3 programmable positions,
- Double articulating headrest,
- Swing up/down iron armrest,
- Cast iron chair frame.
- Iron backrest stand.
- Cast aluminum base,
- Wide backrest, upgraded fiber leather,
- 60 degrees seat rotation, chair safety switch,
- One touchpad, Foot control
- Beyond luxury dentist’s control head, Standard touchpad,
- Cast aluminium delivery head base, double pivot delivery head,
with 3 auto H.P. control, - Individual water coolant controls,
- Master handpiece air coolant adjustment,
- Asepsis handpiece tubing,
- Master on/off switch,1 doctor syringe, Wet/Dry foot control,
- Stainless steel tray with non-slip pad, Flex arm air brake switch
- Beyond 401 Post mounted utility (PMU) with silver side box,
- City water/bottled system, Water outlet and air QD,
- Swing assistant tray with touchpad,
- Solids collector.
- 2 HVE,1SE,1 syringe,
- Alumium base Junction box with air/water filters,regula tors,
master shut-off valves, - 5 ft umbilical
- Post mount LED light with sensor control, 3 level intensity
adjustment
Package Includes
Part Number |
Description |
|---|---|
A091802 | AJ18 Hydraulic Chair |
A0724015 | Beyond401 Delivery system with AJ18 Junction box |
A05025501 | Beyond Swing mount dentist's control with AJ18 Junction box |
A0402400 | Classic201/Beyond401 Swing mount cuspidor and assistant vacuum package |
A0602673 | Swing mount Amber II LED light |
A11206 | Chair adapter E |
Options
Part Number |
Description |
|---|---|
A121532 | HP Fiber optic system with 1 tubing (6 pin) |
A121533 | HP Fiber optic system with 2 tubings (6 pin) |
A120501 | ADS post mount Monitor bracket |
A120401 | Built-in scaler |
A120301 | Built-in curing light |
A121901 | Additional umbilical per foot for Beyond 300/Beyond 301 |
A0502532 | Continental dentist's control |
A080103 | D3 Doctor stool |
A080224 | N4 Assistant stool |
8018895 | Additional 4th handpiece tubing |
A121963 | Bien Air MCX Built In System without touchpad |
A121973 | Bien Air MCX Built In System with touchpad |
91800C | Comfort kit (Heading, Massage, Air lumbar) |
Packing Dimensions (L*W*H) |
Weight | |
|---|---|---|
Chair | 48.1*32.3*37.6" | 346 lbs |
Upholstery | 50.4*9.3*25" | 17.6 lbs |
Beyond Dentist's Control | 30.8* 23.1*14.1" | 44 lbs |
Swing mount assistant vacuum package | 33.9 30.8*8* | 44 lbs |
Beyond Junction box | 19.4*17.8*8.8" | 19 lbs |
Dental Light | 31.1 18.1 7.1" | 20.6 lbs |

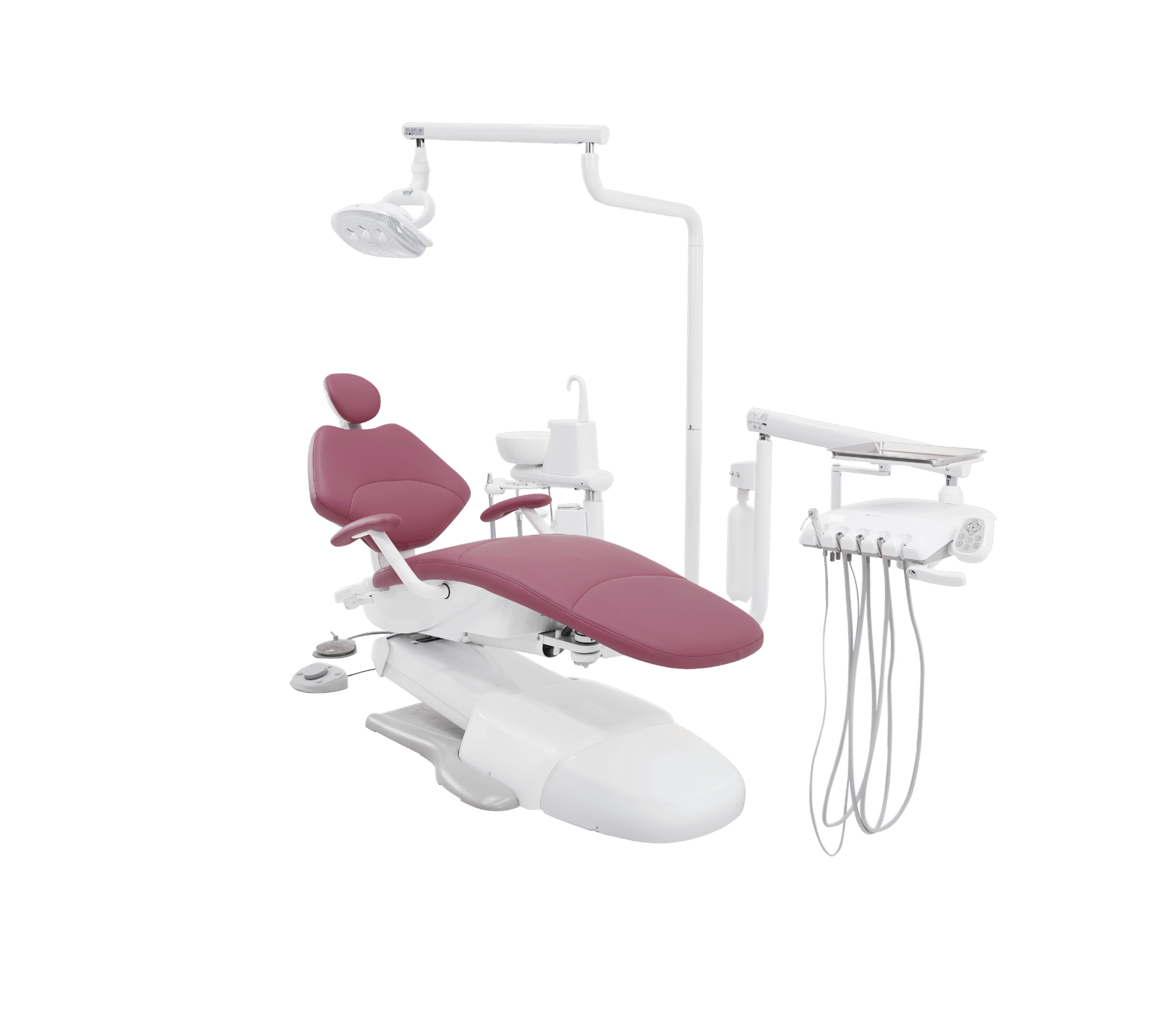

AJ18 Beyond 401
Dimensions
