$0.00
Cassette Autoclave is warranted for 30 months after date of purchase.
6-8 minutes of rapid sterilization, eliminating the storage of instruments, reducing costs; Reduces the high-temperature exposure. Sure time, extending service life, Short sterilization cycles, meet the urgent or frequent sterilization needs.

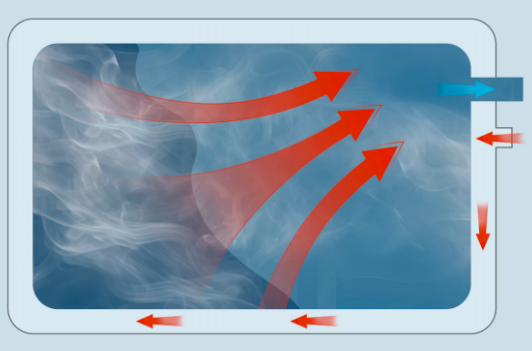

Autoclave sterilization, superior penetration, fearless wrapping devices; Multiple vacuum cycles and steam infusion, ensuring no omission of cavity instruments and complete sterilisation without any blind spots; No harmful chemicals are produced during the sterilization process, ensuring safety and environmental friendliness.
|
Sterilization Mode
|
Non-Wrapped Instruments - Hollow
|
Non-Wrapped instruments - Solid
|
Wrapped Instruments
|
Plastic/Rubber Instruments
|
|---|---|---|---|---|
Heating Time |
2 min |
2 min |
2 min |
2 min |
Pulsed Cycles/Duration |
3/3 18 S |
1/18 S |
6/18 S |
1/18 S |
Sterilization Temperature |
134 °C |
134 °C |
134 °C |
121 °C |
Sterilization Duration |
3.5/18 min |
3.5 min |
3.5/18 min |
15/30 min |
Pressure Reduction Time |
1 min |
1 min |
1 min |
1 min |
Drying Duration (set up) |
1 H |
1 H |
1 H |
1 H |
Applicable Range |
Hollow Metal Instruments |
Solid Metal Instruments |
Plastic High-Pressure Sterilization Bags/Paper Bag Wrapped Solid or Hollow Metal Instruments |
Solid Non-Wrapped Instruments Made of Plastic/Rubber Materials |
|
Size
|
650*415*190 mm
|
|---|---|
Weight |
34 KG (Excluding Water) |
Sterilization Chamber Volume |
380*180 75 mm |
Instrument Load Capacity |
(1.5M) 1000*1500 (Size1) |
Water Tank Capacity |
4L |
Rated Operating Conditions |
AC 110-120 V, 1300 W |
Printer Connection |
Bluetooth Connection |
Overall Protection Rating |
Class I |
Overall Service Life |
10 Years |
