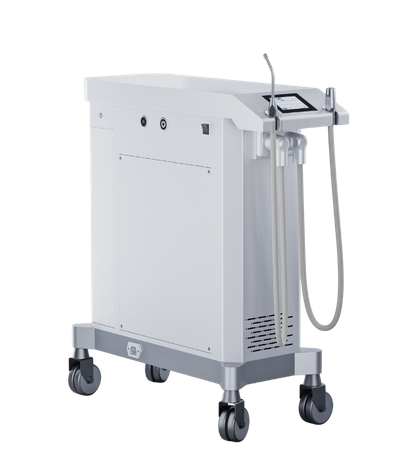

| Model | Suction 10 |
| Main Unit Dimensions | 720 mm (L) × 270 mm (W) × 820 mm (H) |
| Main Unit Net Weight | 48.5 kg |
| Input Voltage | 110 V AC |
| Permissible Voltage Fluctuation | ±10% Voltage Tolerance |
| Rated Current | 0.1 A – 5.5 A |
| Frequency | 60 Hz ± 1 Hz |
| Power Fuse | 2 × 250 V, T6.3A, 6A Fuse |
| Maximum Power Consumption | 550 VA Maximum Apparent Power |
| Waste Tank Dimensions | 350 mm (L) × 170 mm (W) × 280 mm (H) |
| Waste Tank Capacity | >10 L Waste Collection Tank Capacity |
| Suction Pump | Piston Pump |
| Ultimate Negative Pressure | ≥ 0.06 MPa Ultimate Vacuum Pressure |
| Suction Rate | High Suction: 10 L/min<br> Low Suction: 4.5 L/min |
| Operating Environment | Temperature: 5°C~40°C;<br>Humidity: 15% RH~80% RH;<br>Atmospheric Pressure: 860 hpa~1060 hPa |
| Transportation & Storage Environment | Temperature: -40°C~55°C;<br> Humidity: ~93% RH; Atmospheric Pressure: 700 hpa ~1060 hPa |
| Date of Manufacture | Refer to unit body,Individual Packaging Box, Warranty Card |
| Service Life | 10 years service life for the main unit from date of manufacture |
| Special Note | *This main unit is classified as conventional equipment (i.e., a sealed unit without ingress protection). |
