Aoralscan 3 Wireless

Name: Aoralscan 3 Wireless
Brand: SHINING 3D
Availability: InStock

Enjoy complete flexibility with the Aoralscan 3 Wireless, offering fast, precise scans without the limitations of cables. Its lightweight, ergonomic design ensures comfort for both clinician and patient. Perfect for practices aiming for mobility and efficiency.

$0.00 USD

Overview

Go Wireless

Provides a more comfortable experience for the Doctor and patient without restraints from a wired setup.

Long-lasting Battery Life

Up to 2 hours of continuous scanning for each charge, with 3 batteries included. Enjoy smooth scanning and a seamless workflow with a long battery life.

Fast and Stable

Built-in Wi-Fi 6 technology enables a seamless scan experience with fast and stable data transmission.

Long-lasting Battery Life

10 days under sleep mode.

One case scanning time: 2min*

(Maxillary + mandibular + occlusion)

Performance may vary according to diferent situation.

1 charge can be utilized for up to 60 cases.

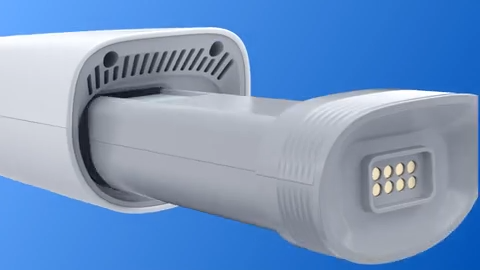

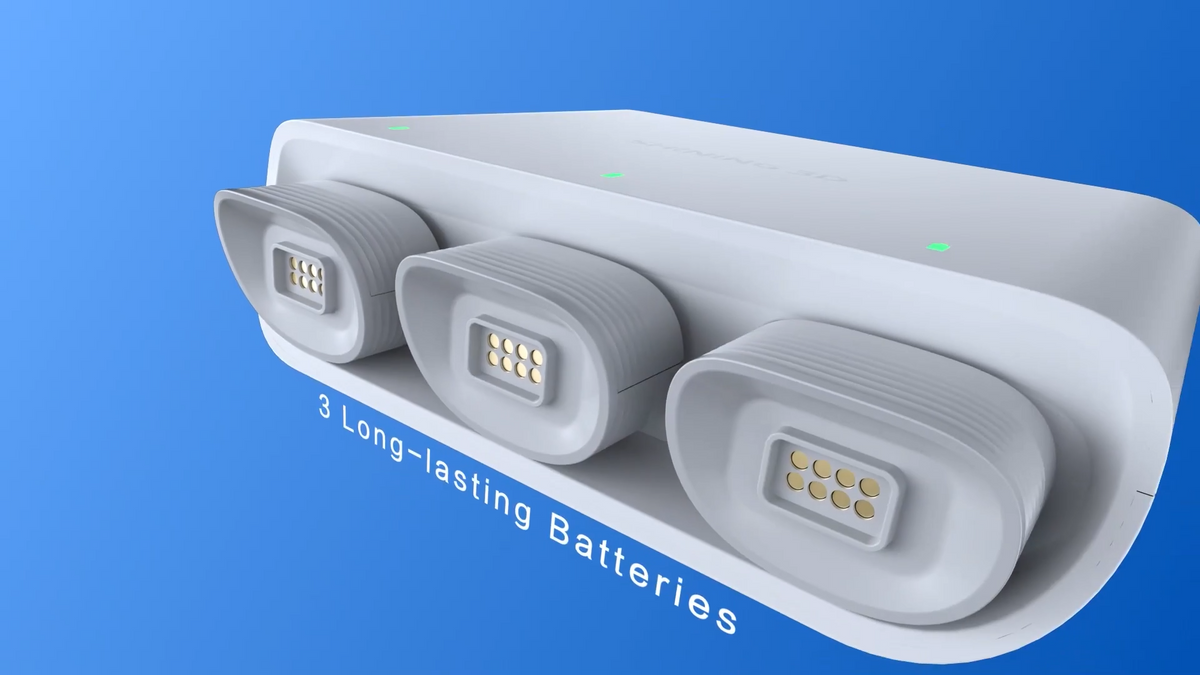

Equipped with 3 batteries and a charging hub for non-stop scanning.

· When finished scanning, you can put the Aoralscan 3 Wireless back onto the cradle to charge.

· Wired scan option is included as well.

· The scanner can adapt to multiple cradles. Pick up the device and switch between multiple chairs.

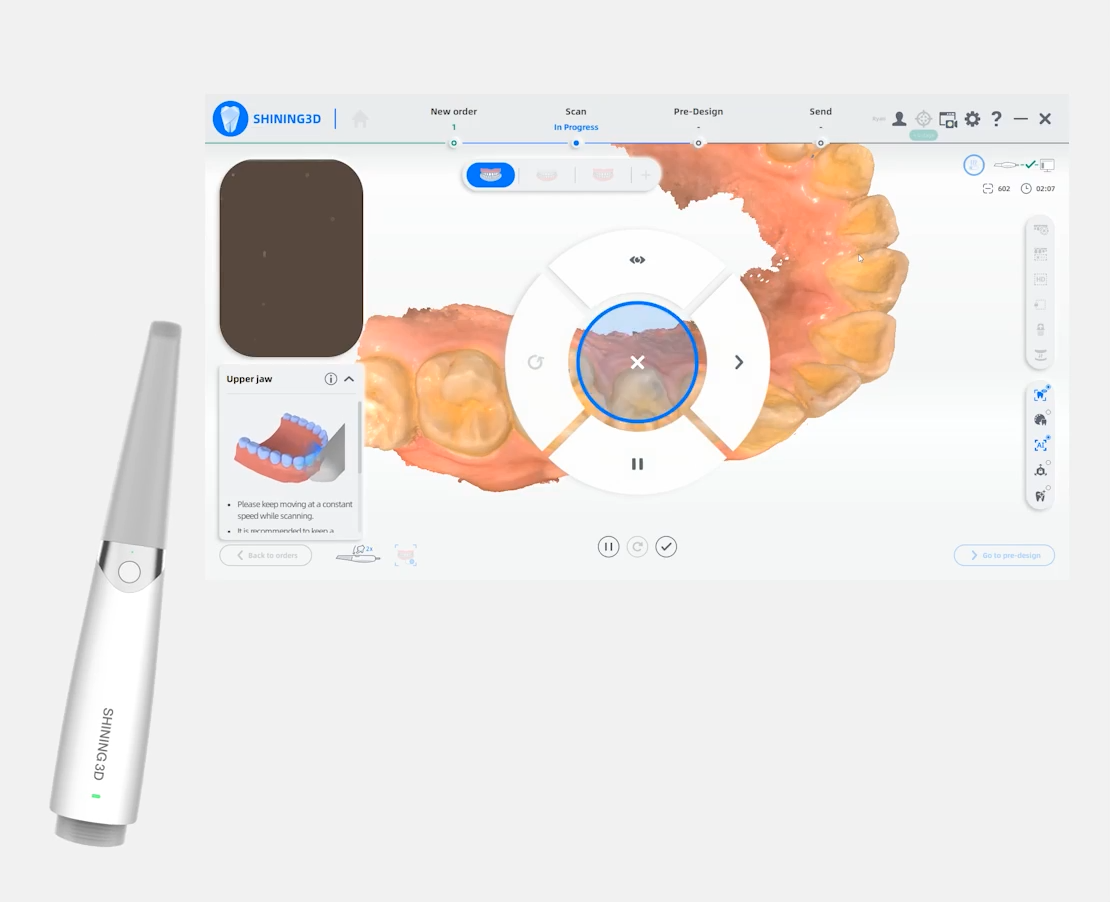

Motion Sensing

Less Contact, Much Safer

Dentists can scan with minimal contact with the computer, ensuring a safe and efficient scan experience.

AI Scan

Speed Up The Scan

Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.

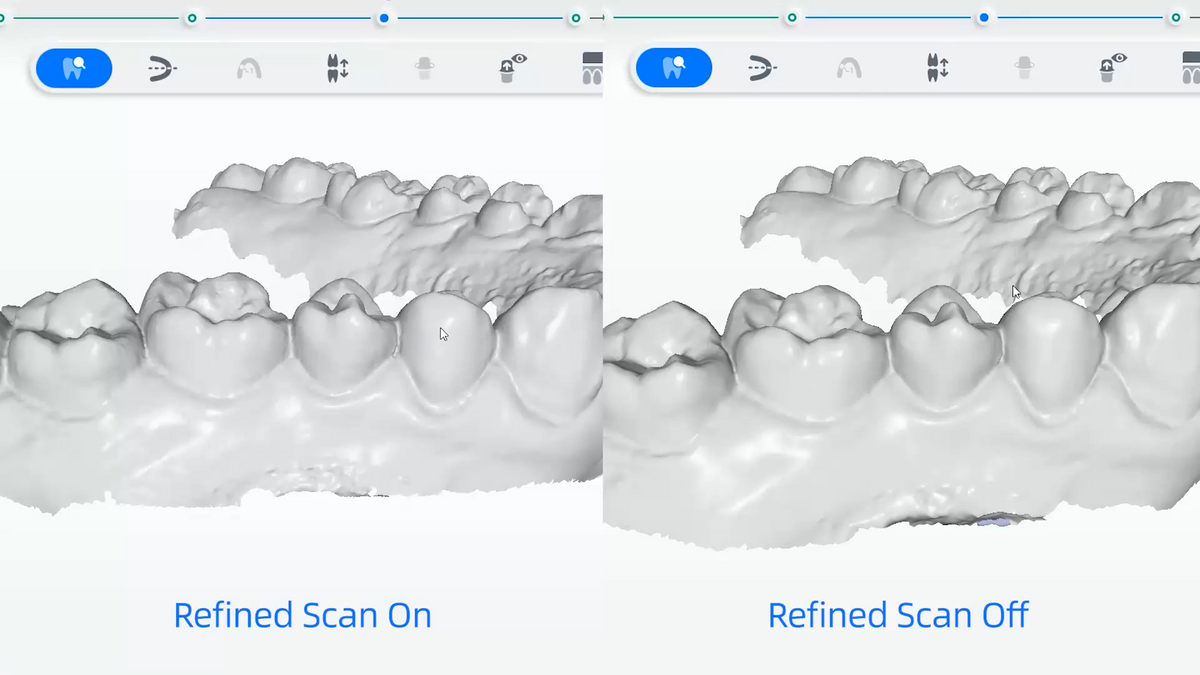

Refined Scan

Refines the restoration area to help obtain clear margin data and more detailed surface data.

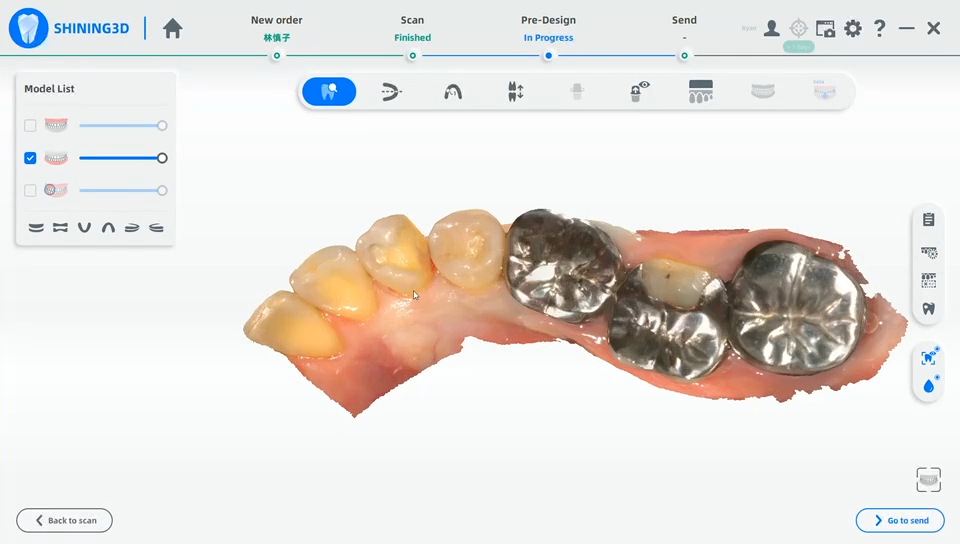

Metal Scan

Enhanced scanning algorithm for a better metal tooth scanning experience and data rendering.

Aoralscan 3 Wireless Videos

Clinical Toolkit

The clinical toolkit assists dentists to evaluate and pre-design the scanned data in their own clinic. It facilitates effective communication with dental labs to deliver quality dental work with high efficiency.

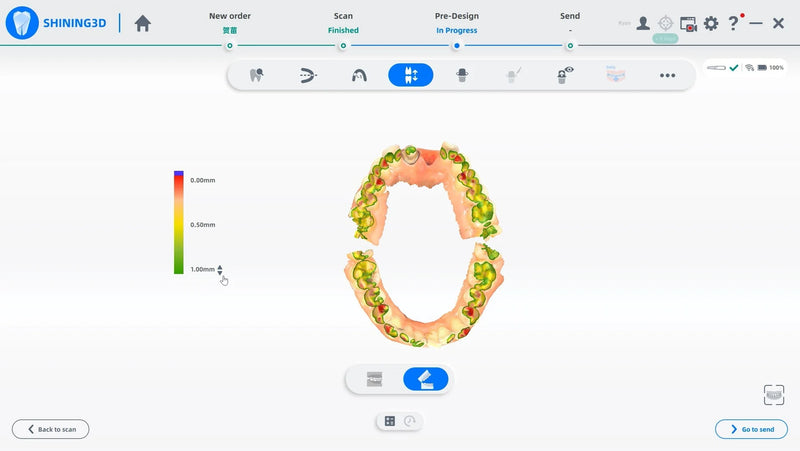

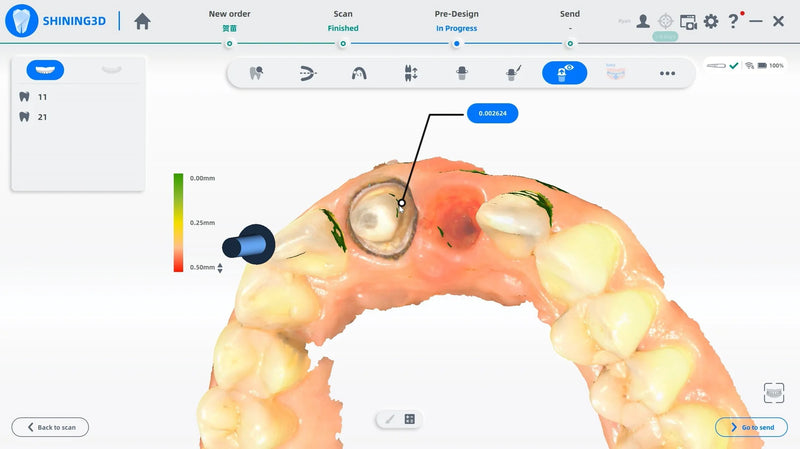

Undercut Check

During the scanning process, the undercut value can be displayed for easy judgment by the dentist

Bite Check

Ensures accurate occlusal relation ship for subsequent applications.

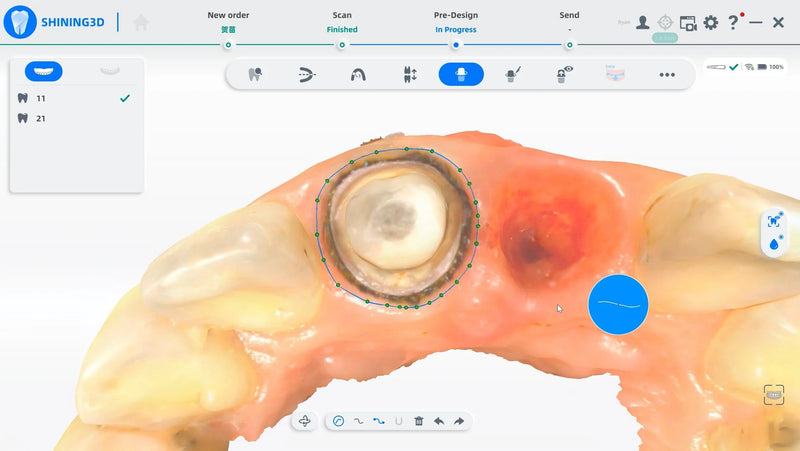

Margin Line Auto Extraction

Allows quick identification of margin lines, which helps communication between dentist and technician.

Application

The Aoralscan 3 wireless intraoral scanner can be applied for clinical indications range spans general restorations, implants and orthodontics. Whether through same-day chairside restorations or clinic-dental lab integrated treatments, it always provides a state-of-the-art user experience.

Veneer

Orthodontics

Removable Dentures

6 Unit Bridge

Pediatric Dental Care

Inlay-onlay

Aoralscan 3 Wireless Specs

Scan Field

Standard scanner tip: 16mm * 12mm; Mini scanner tip: 12mm * 9mm

Scan Tip Sterilization

Autoclave 100 times, 121°C 102.9kPa 30 mins, 134°C 205.8kPa 4 mins

Scan Principle

Non-contact scanning with the structured light

Effective Wireless Range

Same room, up to 5m

Dimension (L * W * H)

270±3(L)x50±3(W)x40±3(H)mm(includes battery, tip)

Output

STL, OBJ, PLY

Power Input

12V DC/3A

Scan Depth

-2mm to 20 mm from exit surface of tip

Scan Tip Heating

40s instant heating (Anti-fogging)

Wireless Technology

Wi-Fi 6(802.11a/n/ac/ax)

Battery Life

2 hours of continuous scanning. 10 days under sleep mode

Total Weight

330±20g (includes battery, tip)

Connector

USB 3.0

Recommended MAC Configuration

Processor

Minimum Requirement: 8-Core CPU & 10-Core GPU

Hard driver

SSD Recommended: 1T

Interface

At least one type C

RAM

16GB or higher

Operation system

Mac OS: Ventura 13 or higher

Recommended PC Configuration

CPU

Intel® Core™ i7-11700H; Intel® Core™ i7-10700F, Minimum：Intel® Core™ i7-8700F, Recommend：Intel® Core™ i7-11800H

Hard Disk Drive

Minimum：256GB SSD, Recommend：2TB SSD

Operating System

Windows 10/11 Professional (64-bit)

I/O Ports

More than 2 type-A USB 3.0 (or higher) ports

Memory

Recommend: 32GB

Graphic Card (GPU)

NVIDIA RTX 2060/2070/3060/3070/3080

Display Resolution

1920 * 1080, 60Hz or higher
