Canaview v2
he Beyes CanaView V2 is an intraoral imaging device from Beyes Dental, a Canadian manufacturer known for handpieces, curing lights, scalers, and diagnostic equipment used across general and specialty dental practices worldwide. As part of the CanaView line, the V2 is designed to give clinicians a clear, magnified view inside the oral cavity, supporting more accurate diagnosis, patient education, and case documentation. Intraoral cameras like the CanaView V2 typically capture high-resolution still images and live video feed, allowing dentists and hygienists to show patients exactly what they're seeing, cracked teeth, early decay, gum recession, or existing restorations, in real time on a chair-side monitor. This visual component often improves patient understanding and treatment acceptance, since patients can see clinical findings directly rather than relying solely on a verbal explanation.
Choose options
Key Features
An excellent communication tool that improves understanding and interaction with patients. The Canaview intraoral camera provides visual evidence that you need to educate patients and make more accurate diagnoses. Boasting a true auto-focus and intuitive camera lighting system, this dental digital photography camera requires no manual adjustments and is easily shared between different examination rooms and chairs.
Direct USB connection to computer
Complimentary Image Management
SoftwareCompatible with major imaging software: AbleDent, Apteryx, Adstra, CaptureLink, CliniView, Cleardent, DentiMax, Digora, Dexis, Eaglesoft, Owandy, ProfSuni,and more...
Super light-weight body
Responsive capture button
High resolution images with 5MP
Compatible with major imaging software: AbleDent, Apteryx, Adstra, CaptureLink, CliniView, Cleardent, DentiMax, Digora, Dexis, Eaglesoft, Owandy, ProfSuni,and more...

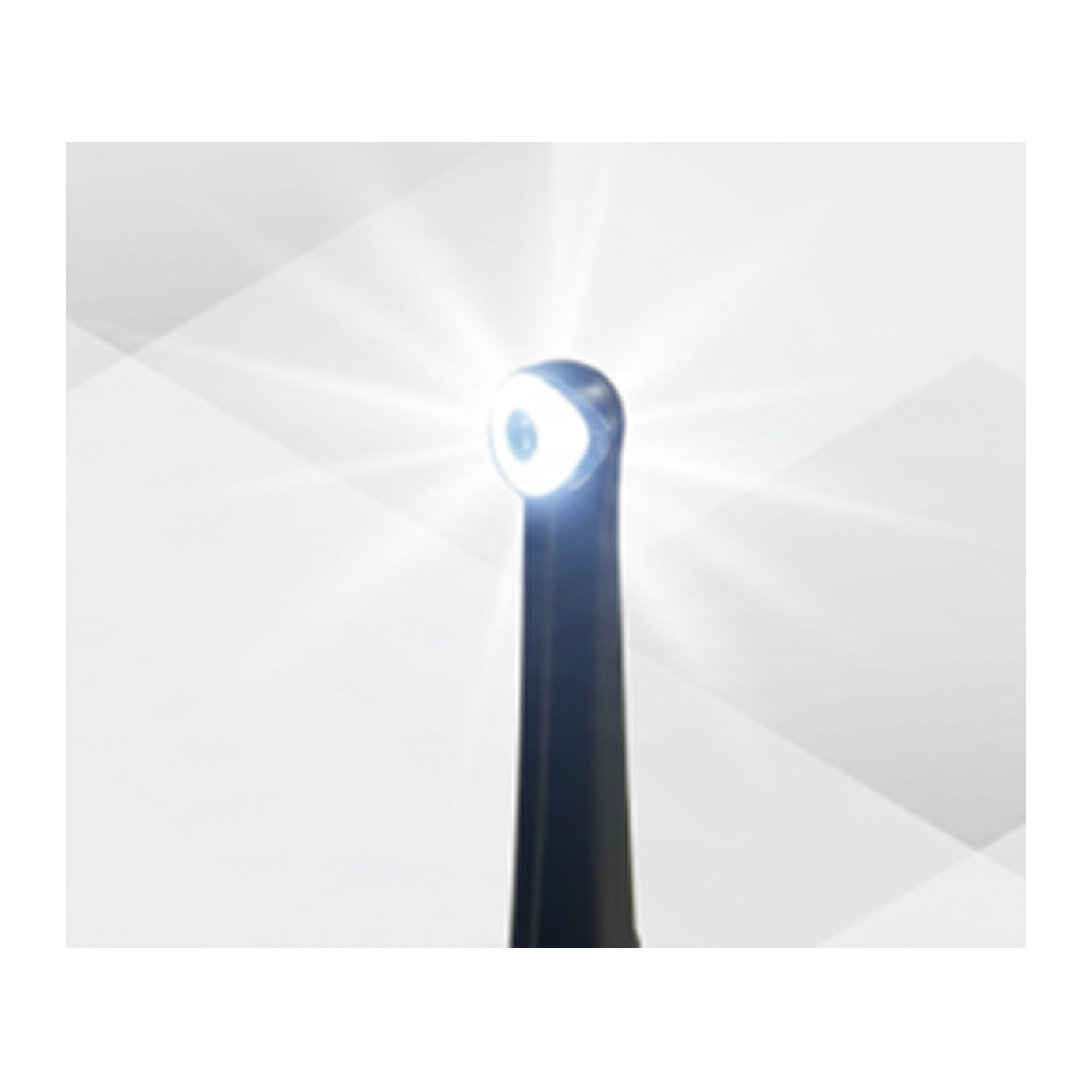

Ultra-wide and non-spherical lensInnovative anti-fog design
Key Specification
| Focus type | Auto |
| Focus range | 4mm - 60mm |
| Connection type | USB to computer |
| Image quality | 5 million pixels |
| Resolution | 1600 x 1200 |
| Camera Length | 20cm |
| Weight | 35g |
| Cable Length | 2m |
| Power | DC 5V+/-0.5V(1.5A) |
| Operating system | Windows 10/8/7/VXP/Vista (64/32 bit) |
| Warranty | 12 months |
Order Info
USDCode: EV2080
Model: Canaview V2 Intra Oral Camera
Description: 3 Zoom Options, 3 Light Intensity Options
Downloads
How to Set up
Step 1 – Download the Button Capture Software
Before plugging in the camera, we need to download and install the Canaview Capture Key Integration Software to setup the button on the device. The button on the Canaview needs to be integrated with your imaging software for Canaview device to function.
Canaview Capture Key Integration Software
• Click "Canaview Capture Key Intergration software"
• Run the .exe file
• Follow the prompt then you’ve successfully installed Canaview integration software
Step 2 – Choosing your imaging software
Once the Canaview Capture is installed and running it will appear on your taskbar in hidden icons.
Right clicking on the icon will bring up a list of imaging software.
Select your imaging software from the list of options, if you do not see the imaging software you want to use but know the corresponding capture key for your imaging software you can simply create your own custom option by selecting the "Custom Settings".
Step 3 - Plug in the Canaview Camera
Make sure the Canaview is connected to the USB cable and plug it into the computer USB port.
Step 4 – Windows Recognizes the Canaview
Once the Canaview camera is plugged, windows should recognize the hardware device as "Canaview". To check this go to device manager > Camera. It should read "Canaview", if windows recognize the camera as “USB Video Device”, please see our Troubleshoot at the end of the document.
Step 5 – Test the Canaview Camera With your Corresponding Imaging Software
The Canaview Camera is now set and ready to be used with your corresponding imaging software, please test the Camera by opening up your imaging software and set/select the video camera source. If you need help with how to access and setup the video camera with the imaging software of your choosing, please visit our website for further assistance. A partial list of software compatible with the Canaview Camera may be found below, if the software you are using is not listed, please check with the provider of the software for details on assistance for setup.
All Set!
Partial list of imaging software that has been tested to be integrated with Canaview Capture, more will be added.
Troubleshoot Canaview Camera
Integrations
Integrating Canaview with Adstra
Integrating Canaview with APIXIA
Integrating Canaview with Apteryx
Integrating Canaview with Centaur Media
Integrating Canaview with CurveHero
Integrating Canaview with Cliosoft
Integrating Canaview with Dentrix Ascend
Integrating Canaview with Dentiview
Integrating Canaview with DentCapture
Integrating Canaview with Dentimax
Integrating Canaview with Dexis 10 and 11
Integrating Canaview with Ezdent-i
Integrating Canaview with EagleSoft
Integrating Canaview with Examine Pro
Integrating Canaview with Kodak KDI (Carestream)
Integrating Canaview with Open Dental
Integrating Canaview with MacPractice
Integrating Canaview with MOGO
Integrating Canaview with Prakitika
Integrating Canaview with Prof.suni
Integrating Canaview with Romexis
Integrating Canaview with Scanora
Integrating Canaview with Schick CDR5
Integrating Canaview with Sidexis 4
Integrating Canaview with SoPro
Integrating Canaview with TigerView8
Integrating Canaview with Visix
Integrating Canaview with VixWin
Integrating Canaview with XDR
Integrating Canaview with XVCAPTURE
