Duray Intraoral sensors

Name: Duray Intraoral sensors
Brand: Beyes
Availability: InStock

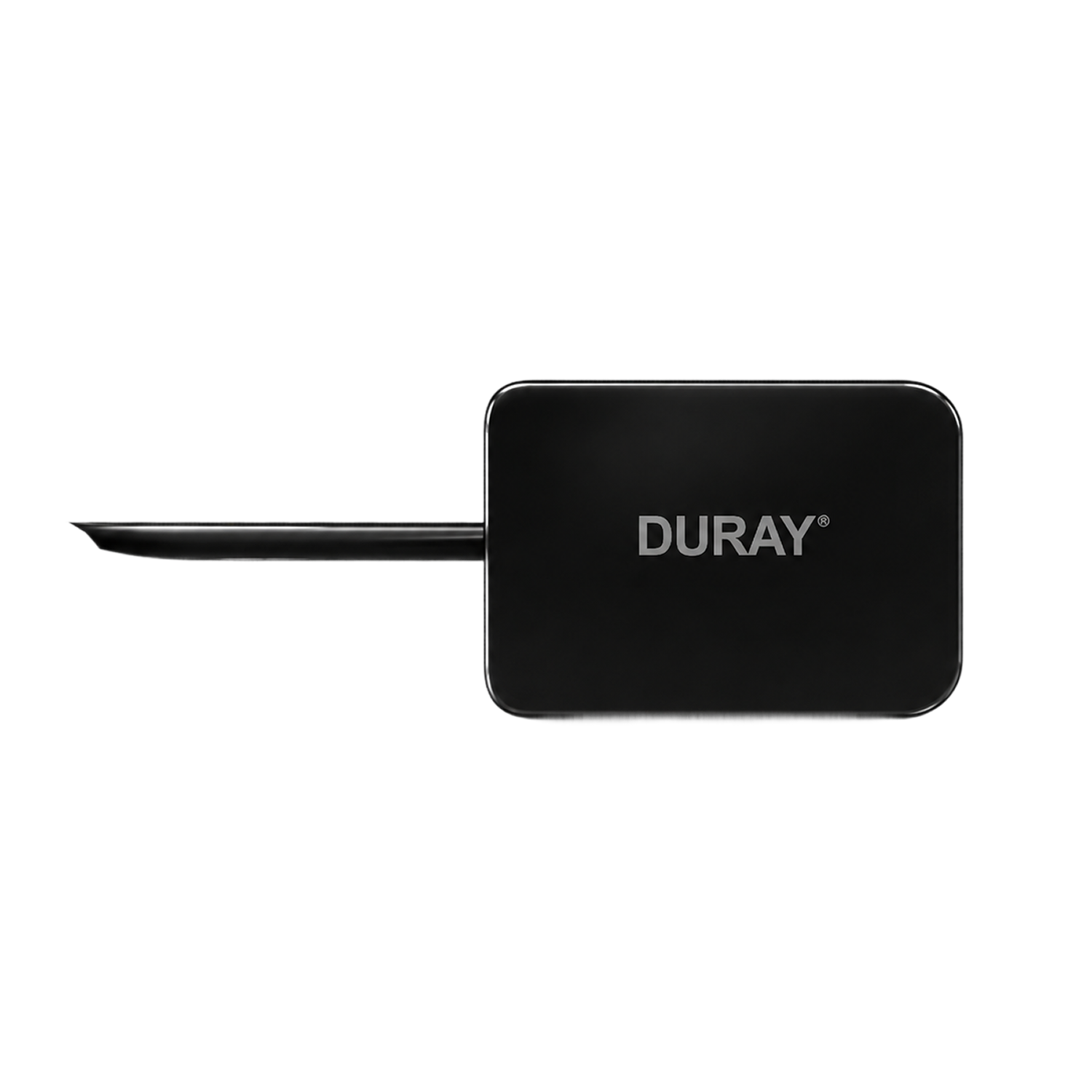

The Beyes Duray intraoral sensor delivers sharp, diagnostic-quality digital radiographs with impressive speed and reliability for everyday clinical use. Built with a robust, rounded-corner design for enhanced patient comfort, it is durable and engineered to withstand the rigors of a busy dental practice.

$0.00 USD

Key Features

Introducing Duray Intraoral sensors – a durable, reliable, and affordable digital intraoral imaging solution. With just a 4.4mm profile and a theoretical resolution of 25 lp/mm, image quality is exceptional while ensuring easy positioning and maximum comfort for the patient. Installation is simple and straightforward with a plug-and-play design, and image processing specifications can be customized to meet your practice needs for enhanced diagnosis. Integrate Duray intraoral sensors seamlessly into your practice today and experience sharper, more detailed images with simplicity.

THIN AND COMFORTABLE

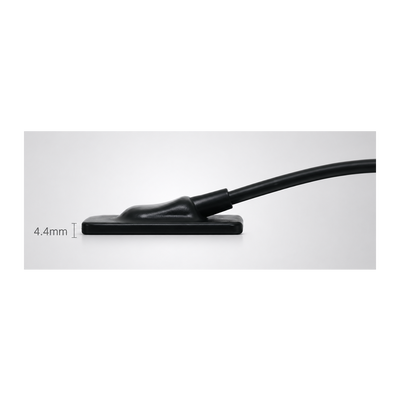

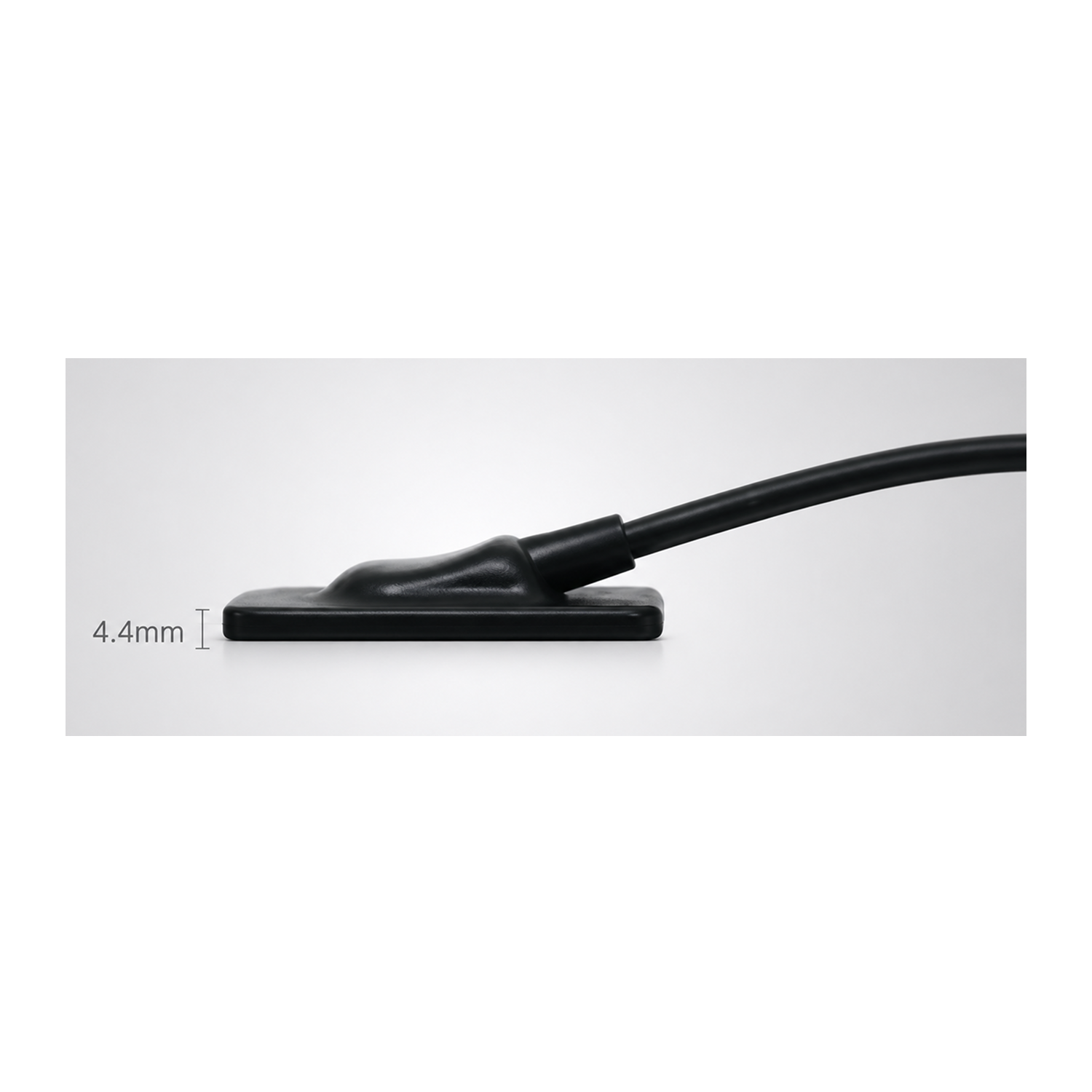

With an ultra-thin 4.4mm portfolio and ergonomically designed with rounded corners, makes it easier than ever to position for bitewing images and offers a maximum level of patient comfort.

HIGH RESOLUTION IMAGING

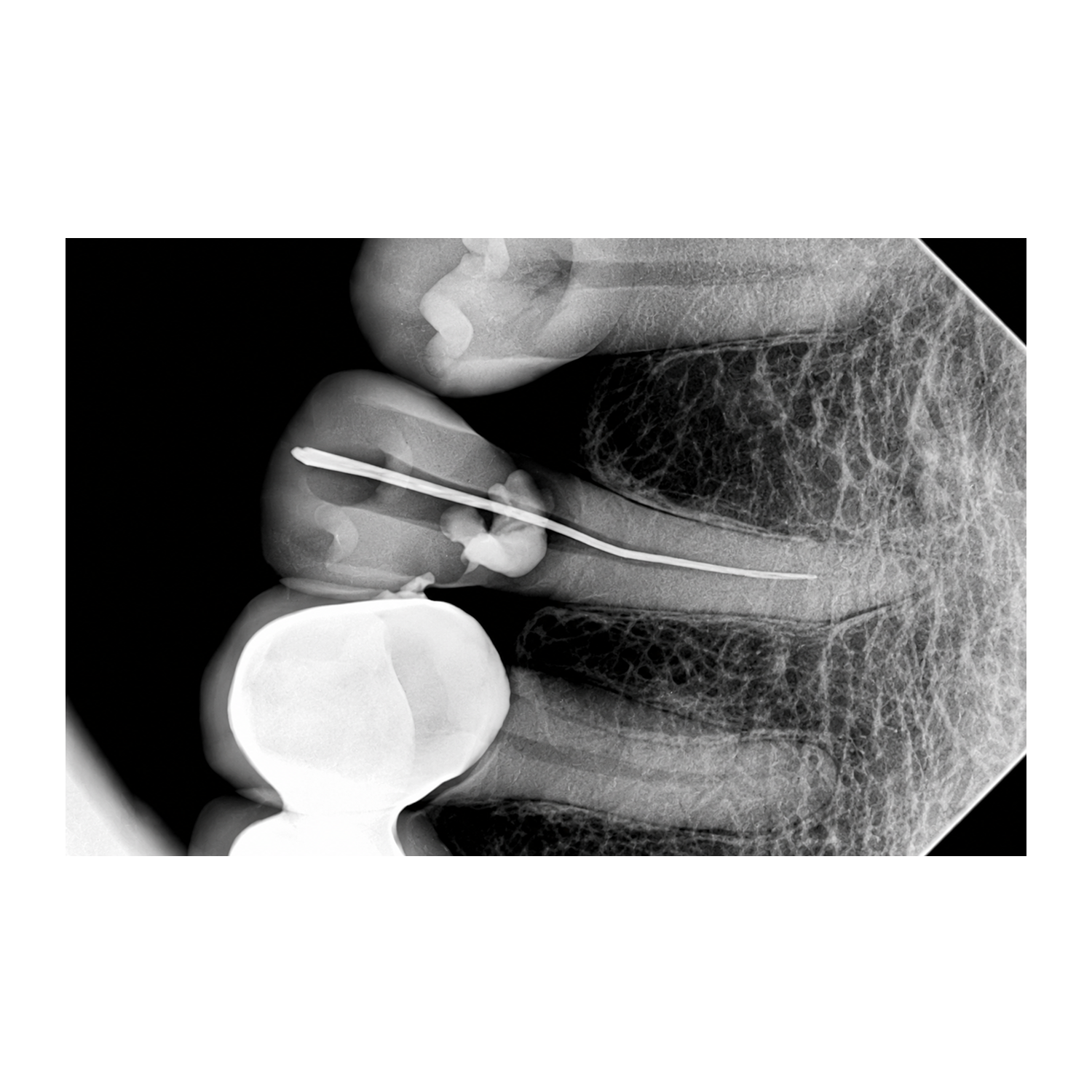

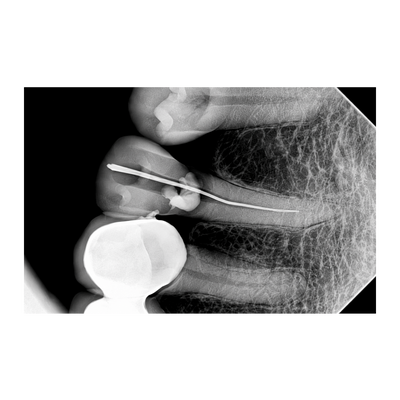

With a theoretical resolution of 25 lp/mm and through advanced CMOS technology, image quality is optimized and exceptional, and noise is reduced, producing crisp, detailed images for immediate review and diagnosis.

DURABLE AND RELIABLE

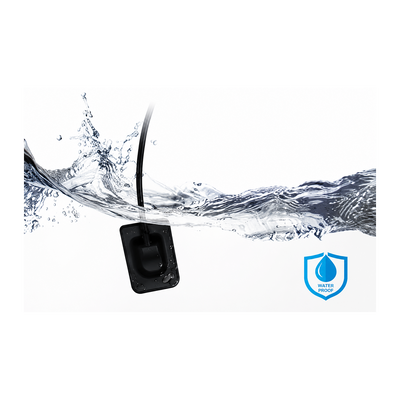

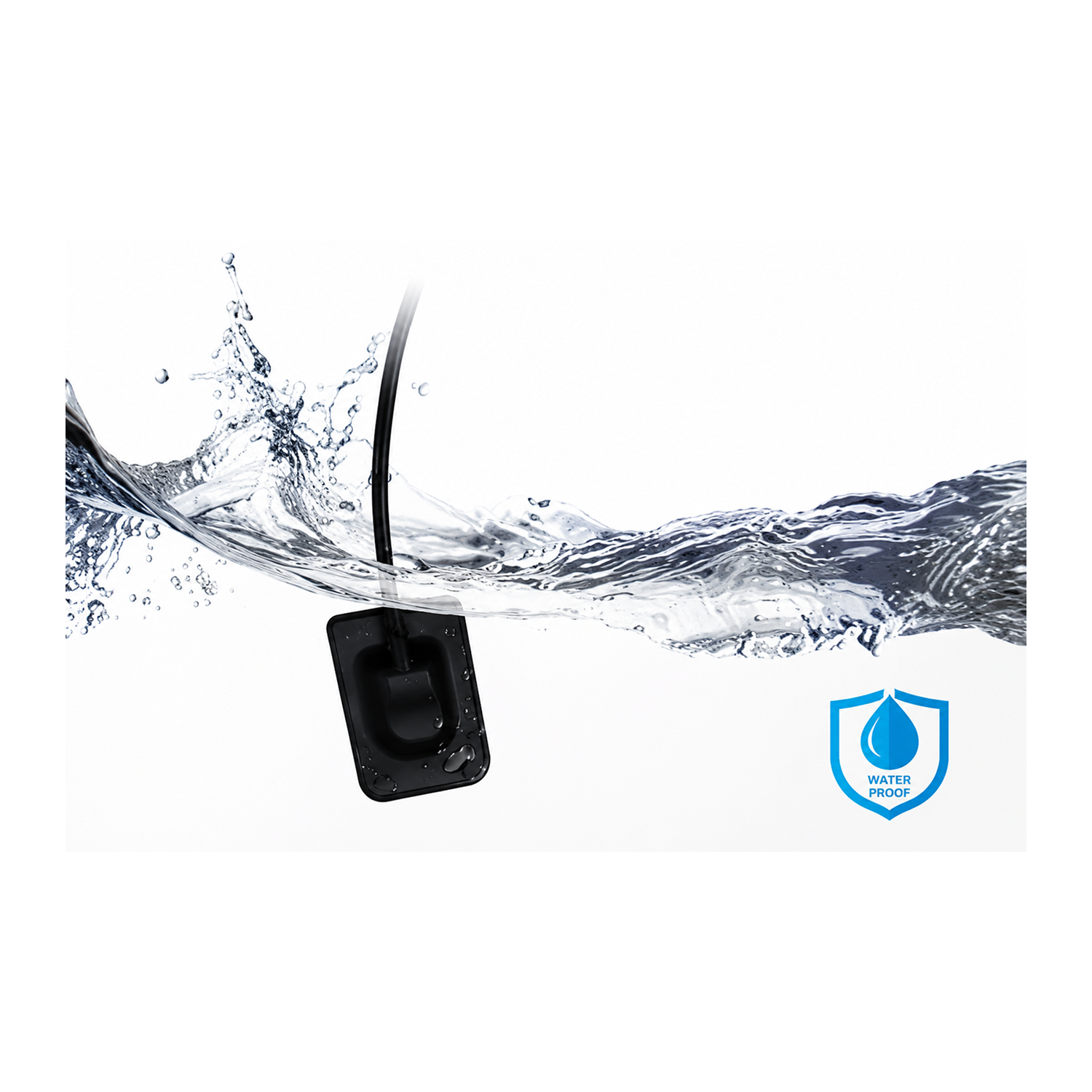

Made with premium materials and rigorously tested during production processes to ensure high-quality performance standards. Duray Sensor is waterproof with an IP68 rating and can be immersed in disinfectant liquids to prevent cross infections and enhance hygiene and safety. In addition, our sensor housing is designed to be shock-resistant to protect from shock, bites, and falls to ensure durability and long product life cycle.

EASY TO USE

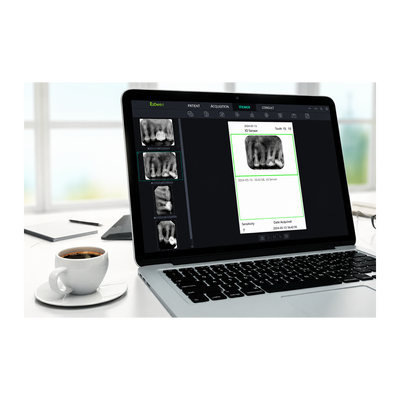

Duray Sensor provides simple and easy-to-operate software with one-click smart installation and offers plug-and-play simplicity with high-speed USB 2.0 connection. Equipped with powerful image processing functions, so you can significantly and quickly improve the quality of radiographs.

Key Specification

	DURAY D50	DURAY D51.5
Outer dimensions of the sensor (length × width × thickness)	25 × 19 × 4.4 mm	34 × 25 × 4.4 mm
Sensitive surface	24 × 18 mm (432 mm²)	33 × 24 mm (792 mm²)
Surface in pixels	1200 × 900 pixels	1650 × 1200 pixels
Weight	108g	138g
Sensor technology	CMOS	CMOS
Sensor resolution	> 20 pl/mm	> 20 pl/mm
Sensor cable length	> 3 m	> 3 m
Grey levels	> 16 bits (16384 grey levels)	16 bits (16384 grey levels)
Connection (Standard USB)	USB 2.0 High-Speed (480Mbit/s) and USB 3.0	USB 2.0 High-Speed (480Mbit/s) and USB 3.0
Physical pixel size	20μm	20μm
Measured resolution	16 lp/mm	16 lp/mm
Theoretical resolution	25 lp/mm	25 lp/mm
Warranty	24 months	24 months

	DURAY D51	DURAY D52
Outer dimensions of the sensor (length × width × thickness)	31 × 21 × 4.4 mm	37 × 27 × 4.4 mm
Sensitive surface	30 × 20 mm (600 mm²)	36 × 26 mm (936 mm²)
Surface in pixels	1500 × 1000 pixels	1800 × 1300 pixels
Weight	118g	158g
Sensor technology	CMOS	CMOS
Sensor resolution	> 20 pl/mm	> 20 pl/mm
Sensor cable length	> 3 m	> 3 m
Grey levels	> 16 bits (16384 grey levels)	16 bits (16384 grey levels)
Connection (Standard USB)	USB 2.0 High-Speed (480Mbit/s) and USB 3.0	USB 2.0 High-Speed (480Mbit/s) and USB 3.0
Physical pixel size	20μm	20μm
Measured resolution	16 lp/mm	16 lp/mm
Theoretical resolution	25 lp/mm	25 lp/mm
Warranty	24 months	24 months

Order Info

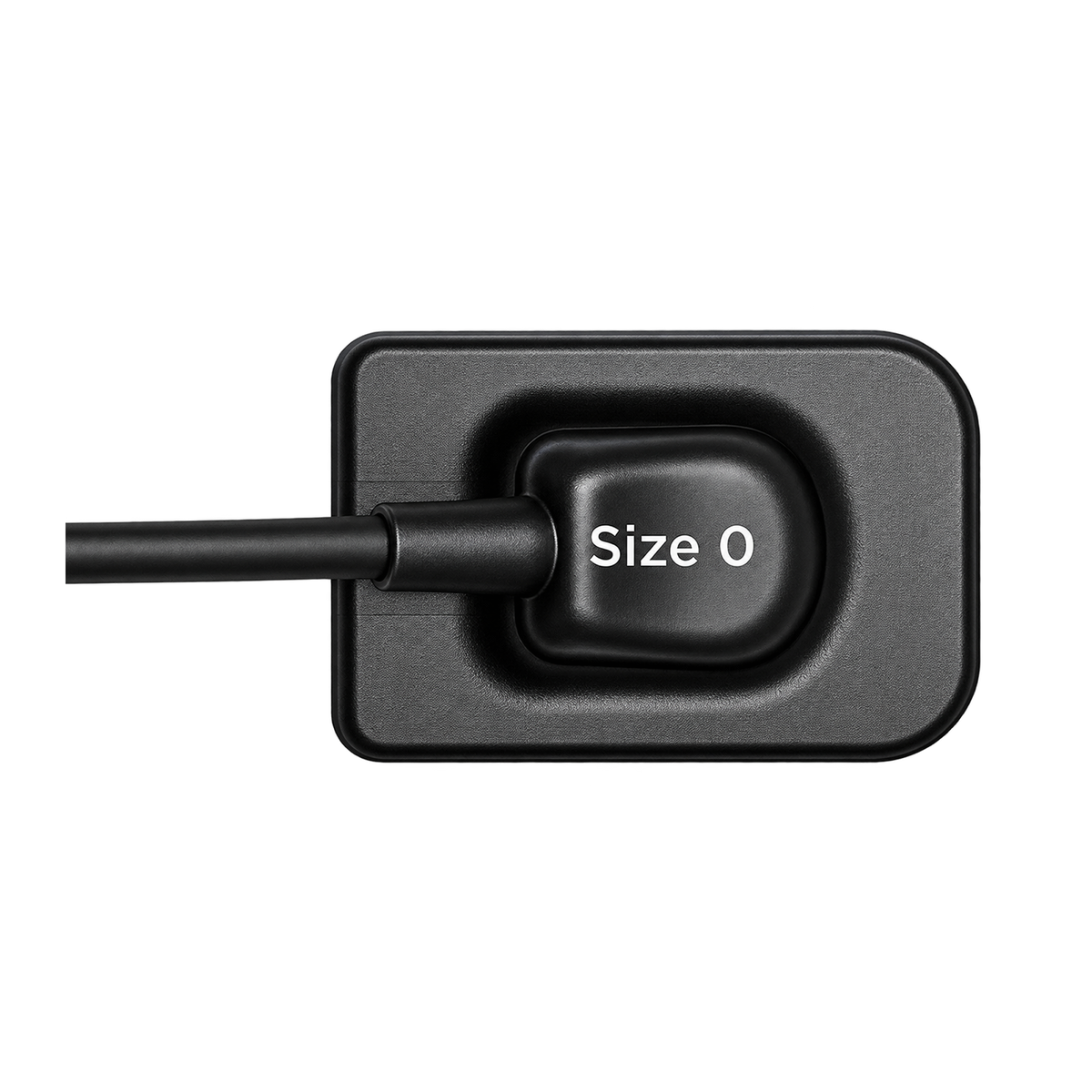

MSRP: $2,399.00 USDCode: DS0001Model: DS0, Duray Sensor Size 0 Kit

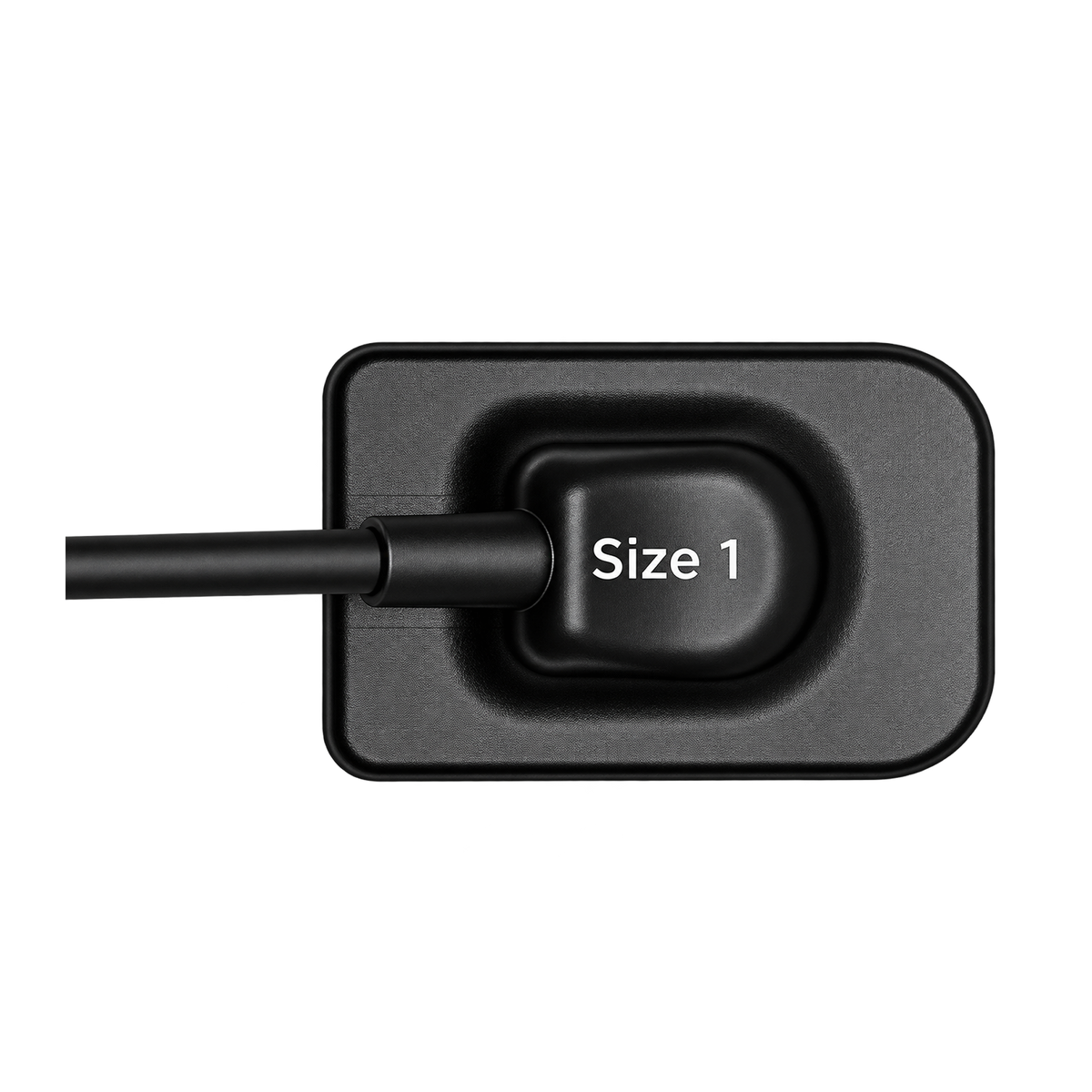

MSRP: $3,200.00 USDCode: DS1001 Model: DS1, Duray Sensor Size 1 Kit

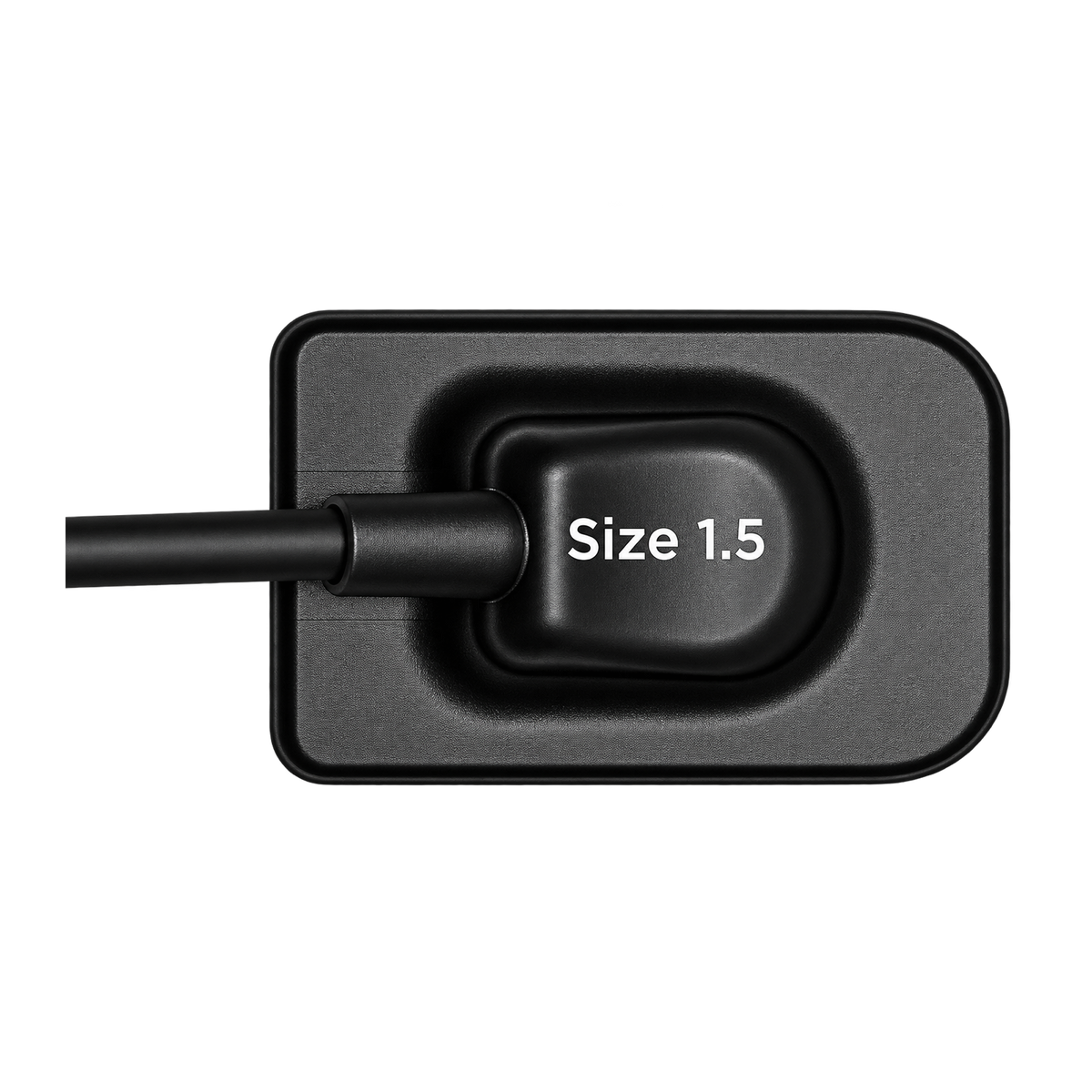

MSRP: $3,500.00 USDCode: DS1501Model: DS1.5, Duray Sensor Size 1.5 Kit

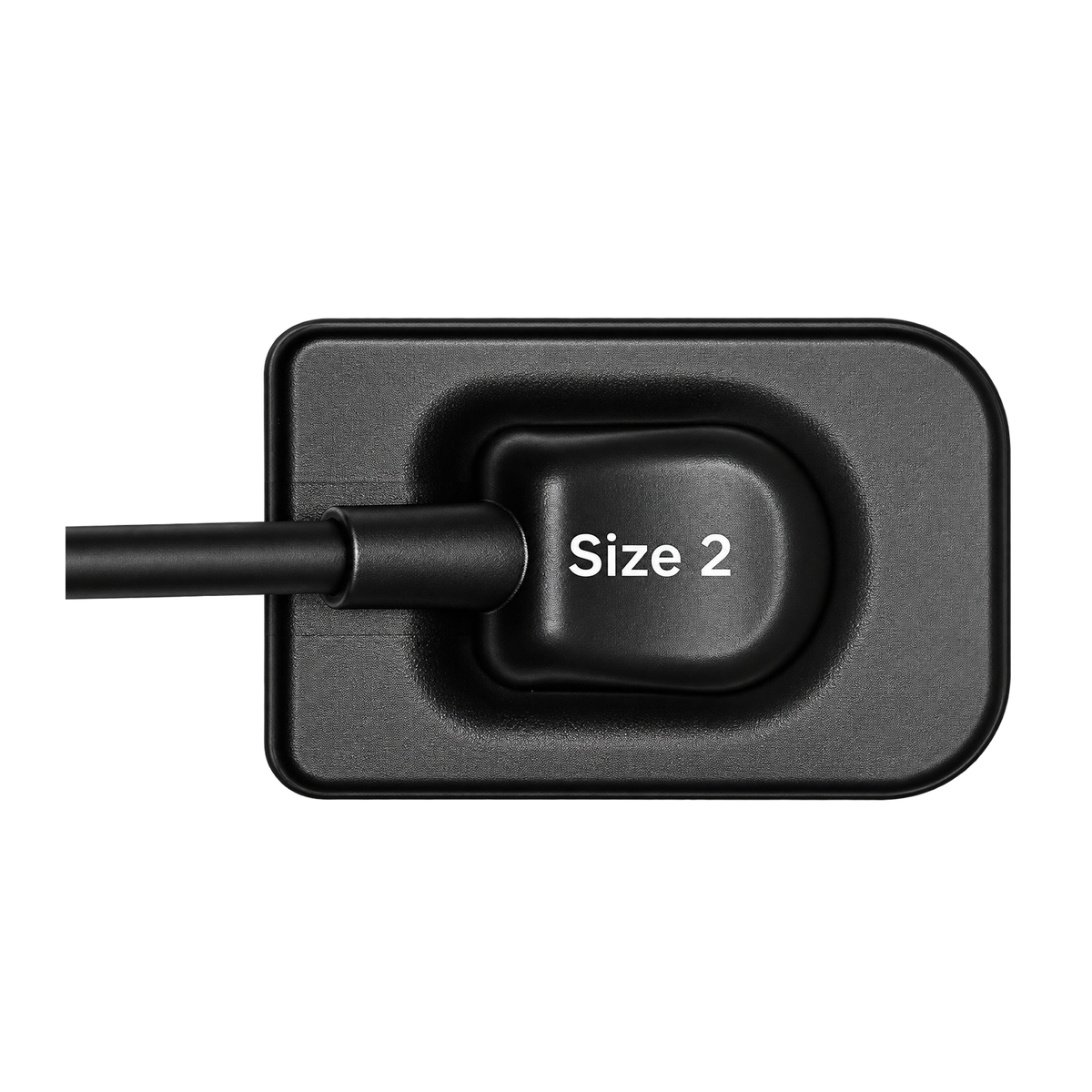

MSRP: $3,999.00 USDCode: DS2001Model: DS2, Duray Sensor Size 2 Kit

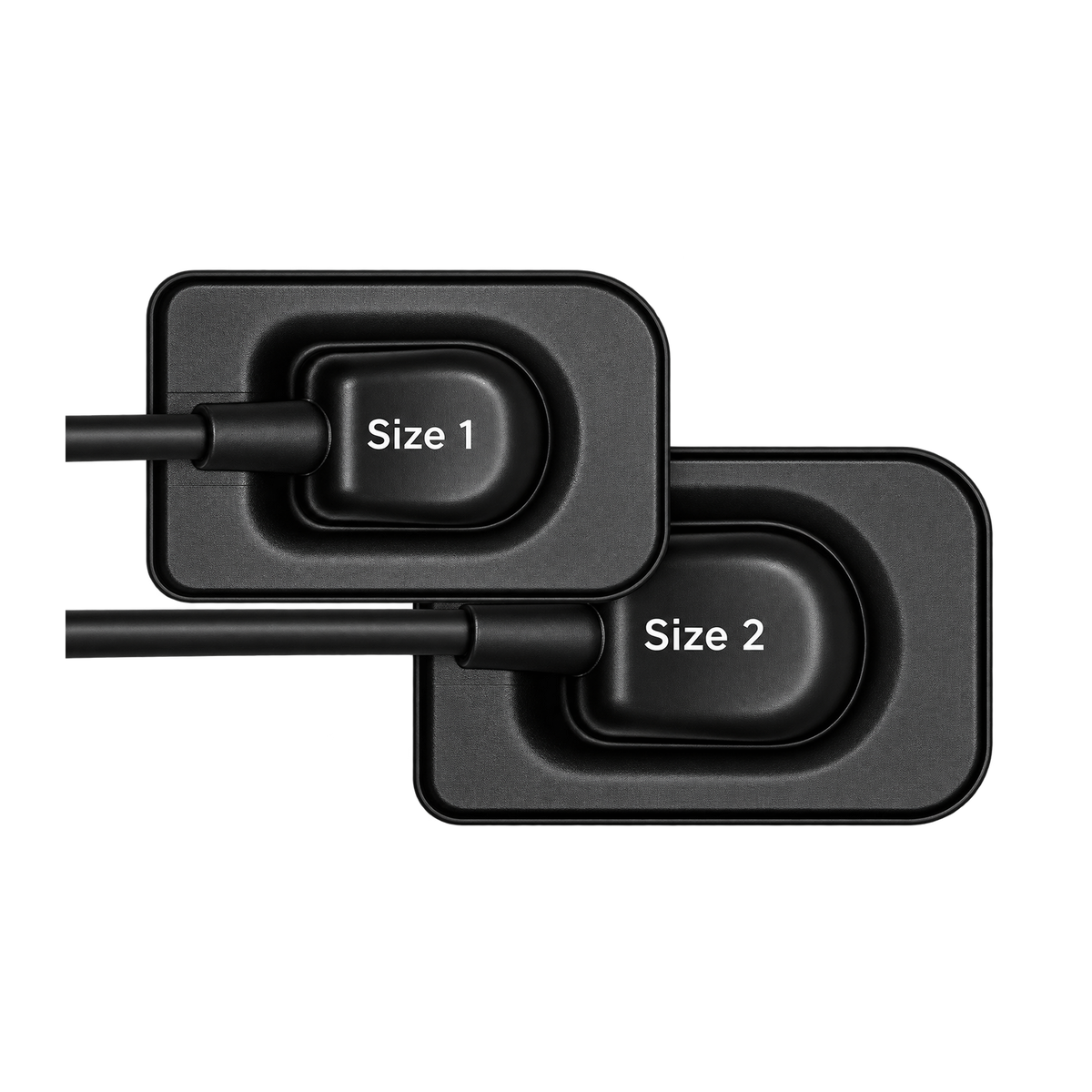

MSRP: $6,900.00 USDCode: DS3001Model: Duray Sensor Package (Includes size 1 & size 2 kits)

MSRP: $23.00 USD

Code: DS1003

Model: Sensor Sleeve, Size 0/1 (100/package), 35x200mmx3c

Code: DS1004

Model: Sensor Sleeve, Size 1.5/2 (100/package), 45x200mmx3c

MSRP: $15.50 USD

Code: DS1006

Model: Sensor Silicone Cover, Size 1

Code: DS1007

Model: Sensor Silicone Cover, Size 2

Code: DS1011

Model: Sensor Silicone Cover, Size 0

Code: DS1010

Model: Sensor Silicone Cover, Size 1.5

MSRP: $229.00 USD

Code: DS1103

Model: Universal Starter Kit

Also Available Separately: 1 x Positioning Arm Posterior, 1 x Positioning Arm Bite Wing, 1 x Positioning Arm Anterior, 12 / pk x Bite Block Large Size, 12 / pk x Bite Block Medium Size, 1 x Posterior Aiming Ring, 1 x Anterior/Bite Wing Aiming Ring

Downloads

Brochure Instructions for Use

TWAIN Install

Installing Beyes Twain and calibrating Duray sensor.

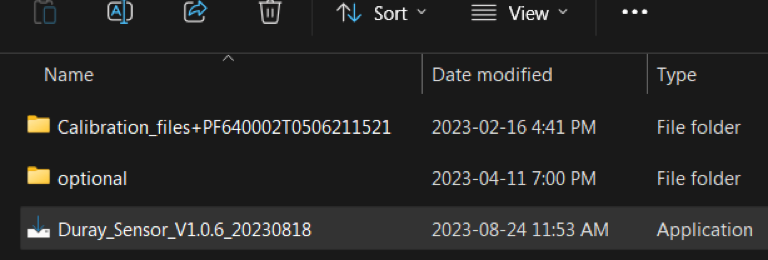

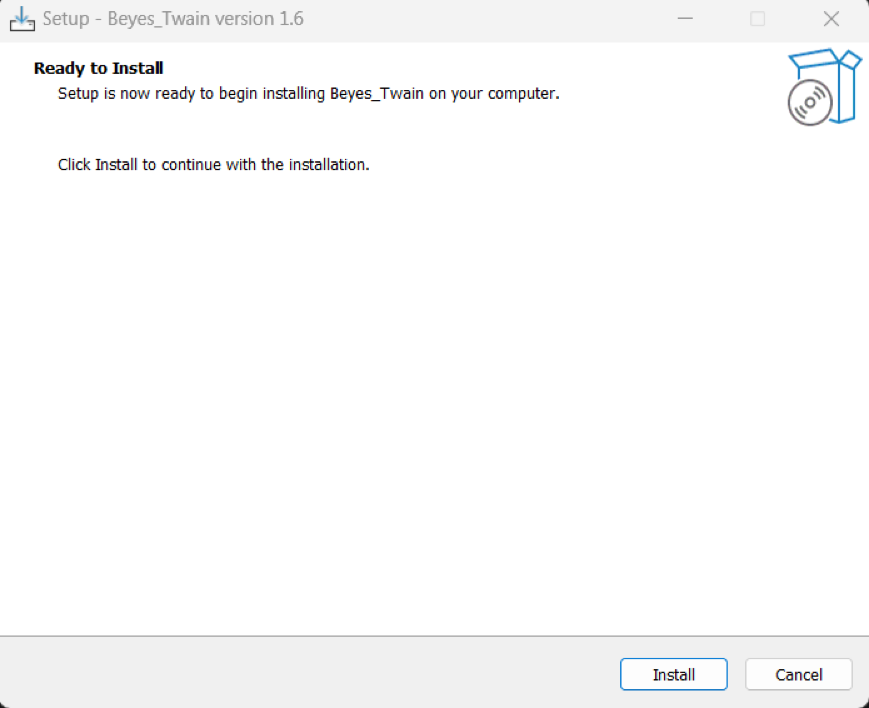

Step 1 – Installing the Twain driver. Run 'DuraySensor2024_V1.0.x.exe' to initiate the installer. Can be found within the USB drive.

Step 2 – Follow the prompt until the installation is complete.

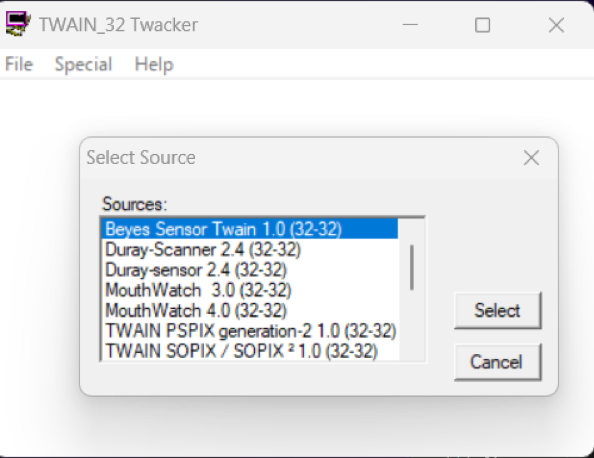

Step 3 - Change the X-ray acquisition source to Beyes Sensor Twain. Steps may differ depending on Imaging Software.

Step 4 – Plug in the Duray Sensor and hit ACQUIRE.

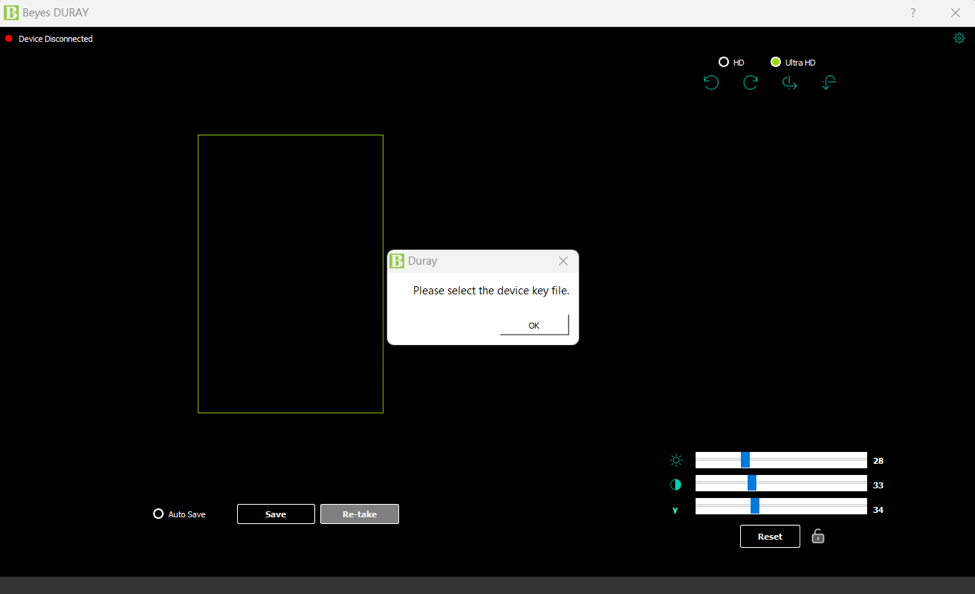

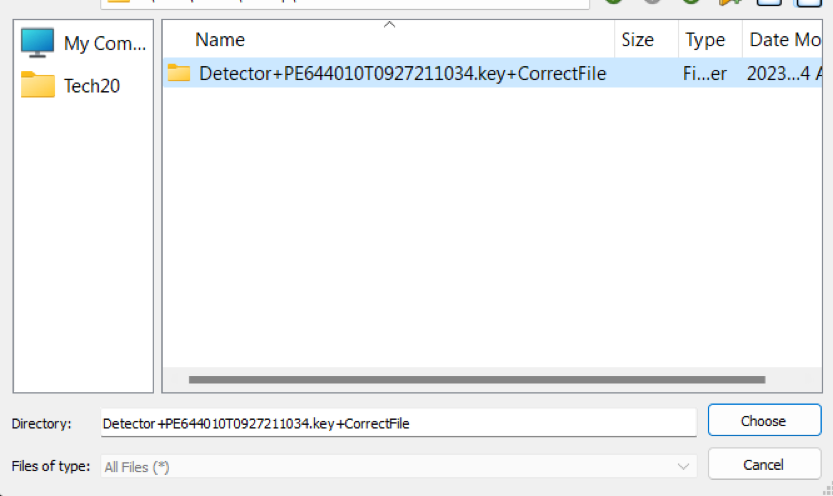

Step 5 – To select the device key file. Hit ‘OK’ and locate the calibration file corresponding to the serial number the sensor.

Step 6 - All good, sensor is connected and calibrated.

Integrations

Installing Beyes Twain and calibrating Duray sensor.

Integrating with AKITU ONE

Integrating with Beyes Duray SERVER-CLIENT

Integrating with XVCAPTURE

Integrating with ABELDent

Integrating with XRAYVISION

Integrating with ACTEON SOPRO

Integrating with CURVE HERO

Integrating with CADI

Integrating with CLEARDENT

Integrating with Dexis 9

Integrating with Dexis 10

Integrating with DTX STUDIO

Integrating with Evasoft

Integrating with Eaglesoft

Integrating with Ezdental

Integrating with Gendex Vixwin

Integrating with Opendental

Integrating with Prof Suni

Integrating with Quickvision Owandy

Integrating with Sidexis 4

Integrating with Sidexis XG

Integrating with TIGERVIEW

Integrating with TRACKER

Software Downloads

Duray Sensor Twain Driver v1.1.6 - Dec 20, 2024
