E8 (DENTAL CART)
E8 (DENTAL CART)
E8 (DENTAL CART)
E8 (DENTAL CART)
Jinme

E8 (DENTAL CART)

The Jinme E8 Dental Cart is a versatile and portable dental delivery system designed to enhance efficiency and flexibility in modern dental practices. Featuring a compact yet durable design, the E8 offers convenient mobility while accommodating essential dental instruments and equipment.

E8 (DENTAL CART)
E8 (DENTAL CART) Sale price$0.00 USD

With implant function

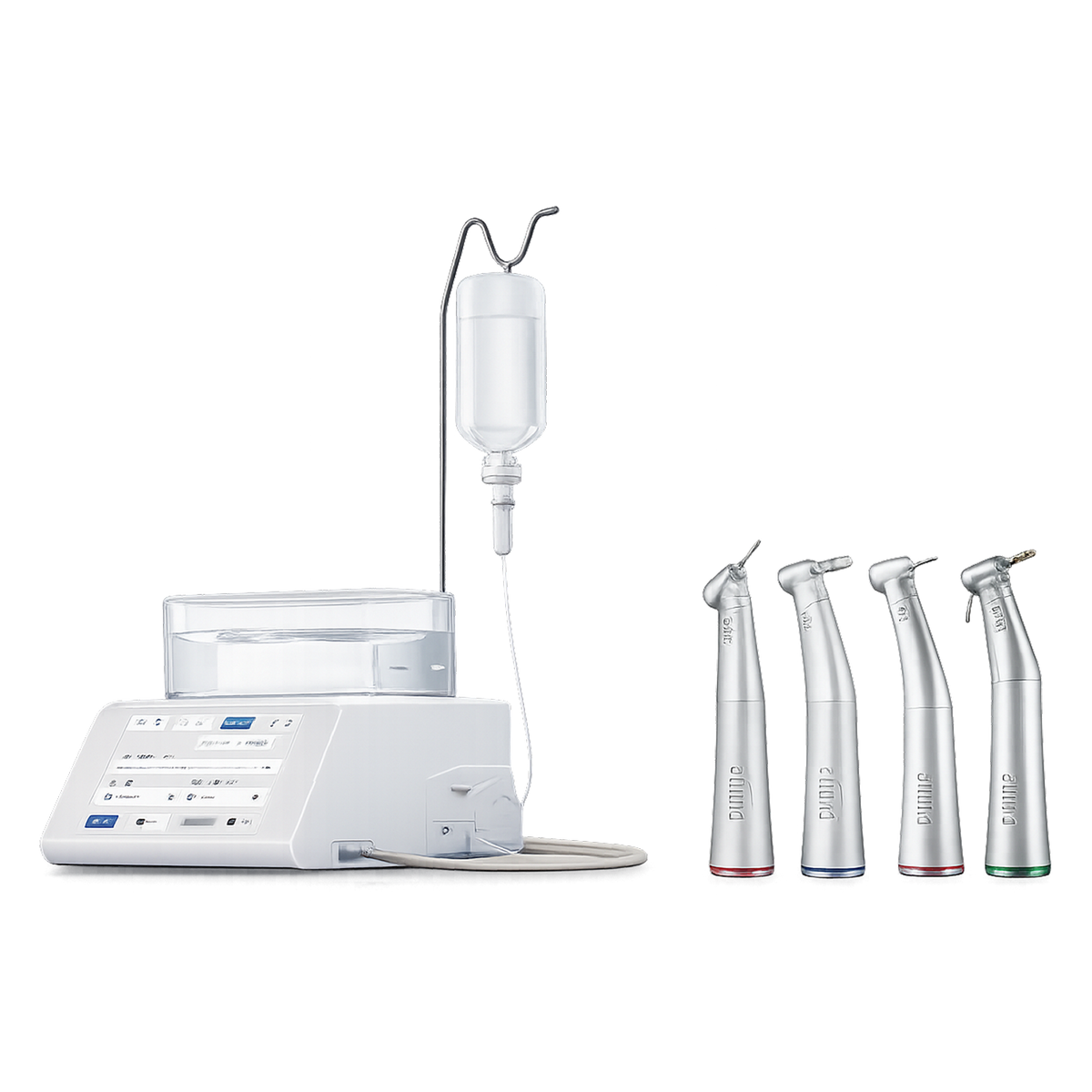

Surgical Drive System

ES90

Extract a Tooth
Restorative
Tooth Polishing
Caries Removal
Implant
Pulp Opening

Six highlights and remarkable achievements

A milestone in dental comfort therapy

More efficient electric bone-knife machine

Combined with the ultrasonic bone knife, it will present a more perfect therapeutic effect. Equipped with three bone-knife handpiece for different clinical applications, the serrated surface is specially coated for high efficiency, less heat generation, and more durable.

Direct supply of normal saline to reduce surgical infection rate

In aseptic minimally invasive tooth extraction, the method of direct supply sterilization and cooling physiological saline can reduce the infection rate, wound healing quickly and complications are light.

Meet all functions of high and low speed handpiece

Designed to support both high-speed and low-speed handpiece operations, providing versatility and efficiency during surgical procedures.

Ultra-low speed of 100 revolution, to meet precise repair and fine tuning

Motor imported from Switzerland, minimum speed up to 100rpm/min. Using imported chip drive board, brushless motor, so that the dental operation motor keeps stable, accurate, static for a long time.

Intelligent pedal to meet the requirements of surgical sense control

Flexible use of foot control, reduced hand control, can reduce cross infection during surgery. Stepless variable speed, sensitive speed control, innovative water key design, fast oil/stop water, IPX6 professional ecology-level waterproof treatment, safe and reliable.

Used in more places

No need to connect fixed water pipes or air pipes, can be carried and moved at any time

Specifications

Main system size
L260mm x W240mm x H110mm (excluding water tank)
Water tank size
L214.8mm x W109.8mm x H81mm
Input voltage
Other: 220VAC / CE: 230VAC
Range
±10%
Rated current
0.1A-0.8A
Supply frequencies
50Hz / 60Hz
Maximum power consumption
180VA
Power fuse
T2.0AH / 250V
Maximum power consumption
180VA
Cooling water flow at 100%
Above 50ml/min
Spray gas supply
Above 1.5L/min
Water hardness
Hardness of distilled/pure water < 6.5mmol/L
Recommended coolants
Distilled / Pure Water
Suspended maximum allowable load
≤ 1.5KG
Model:
Motor Head Configuration / M1

Specifications

Type
No carbon brushes, built-in water spray
Maximum torque
Other: > 1N·cm / CE: 5.5 N-cm
Rotation speed
Other: 100–40000 rpm / CE: 200–40000 rpm
Weight
72g
Connection
ISO 3964 (YY1012)
Light
LED
Autoclave
Motor head can be sterilized (with protective cap)
Noise
53dB, YY0836 / ISO14457
Size of motor
20mm
Product name
Electric motor

Support & Downloads

1:5 Maintenance video

We ensure precise-matching of gears, dentists enjoy perfectly-quiet, ultra-smooth, & long-life performance.
