HDX Eco-X
Expand your field of view for complete dental imaging
HDX Eco-X Powerful CBCT without the premium price tag. The Eco-X features a large 16×9 cm maximum FOV suitable for implantology, endodontics, bilateral TMJ, and airway studies, backed by HDX WILL's PrecisionMAR™ and Adaptive Exposure Control for radiation levels lower than a standard panoramic scan.
Choose options
3D Imaging
MAX 16×9 cm FOV, perfect for capturing dentition, sinus, or TMJ
PANO with Autofocus
2D panoramic feature with Autofocus for minimized distortion
Bitewings
Extraoral bitewing images for better patient comfort
Cephalometric X-ray (optional)
Optional cephalometric arm attachment, excellent diagnostic images for orthodontic practice
Model Scan Option
Model CBCT Scan for STL extraction
Superior Image Quality
Striking contrast and sharpness of images produced by HDX WILL’s image reconstruction technology
Minimized Metal Artifacts
PrecisionMAR (Metal Artifacts Reduction) allows for greater diagnostic accuracy by significantly reducing metal artifact
Low Dose Radiation
CBCT radiation exposure lower than standard panoramic scan* - w/AEC & Ultra low dose mode
Wide FOV ( Max 16 x 9 cm)
Wide FOV gives the flexibility to capture the dentition, TMJ, or sinus
Auto Cephalometric Landmark Tracing*
Spend more time with your patients, and less time landmark tracing with WillCeph’s Auto tracing feature *Available with Willceph software purchase

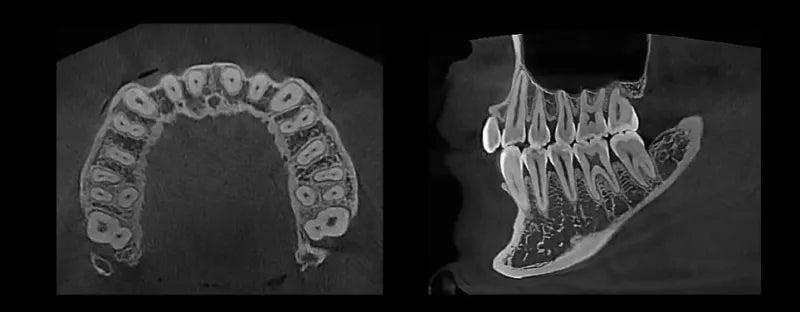

Superior Image Quality
HDX WILL’s state of the art imaging reconstruction algorithm finds the best value of each voxel and enhances image contrast and sharpness.

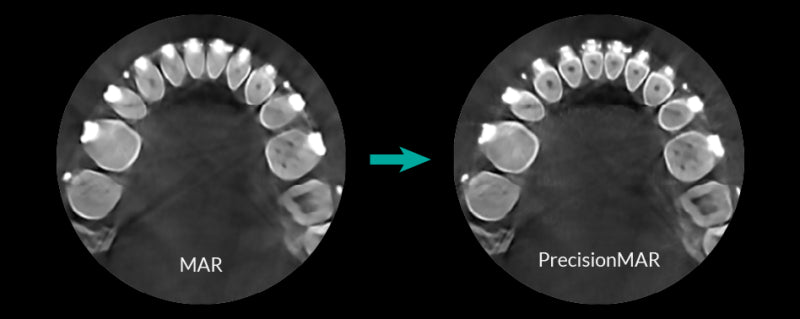

PrecisionMAR
PrecisionMAR™ offers unprecedented clarity around metal, improving diagnostics and planning.
● Minimal scatter
● Reduced shading artifact
● Clearly define bone and teeth structures around metal

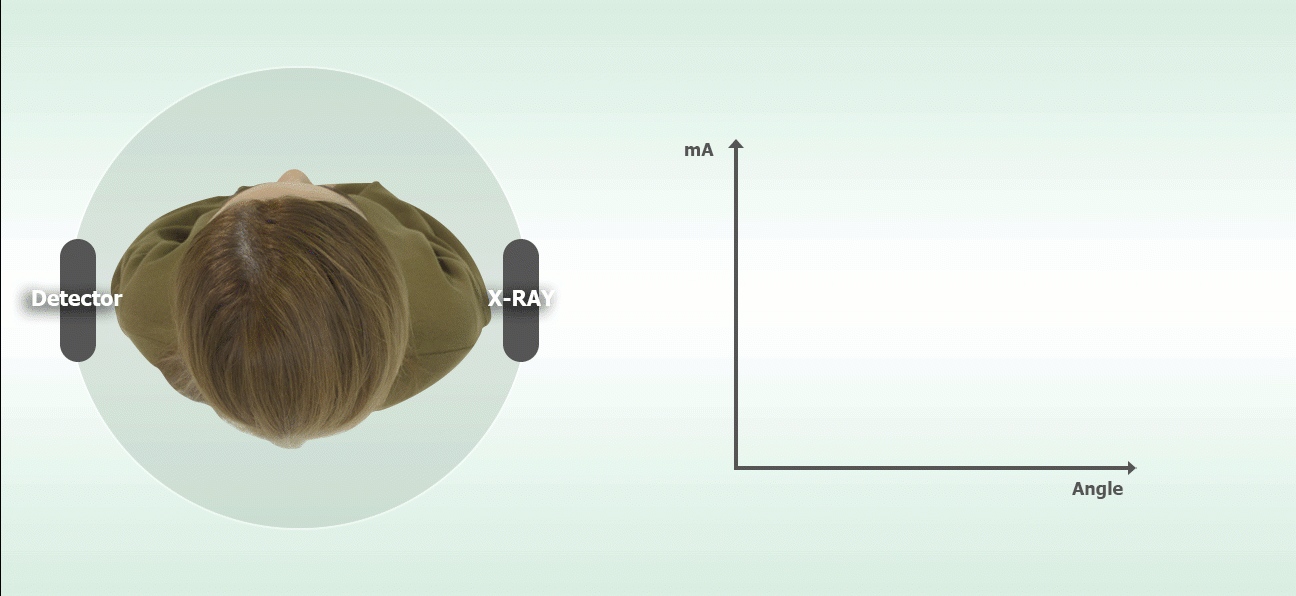

Low Dose Radiation
An additionally equipped filter & Adaptive Exposure Control(AEC) technology significantly reduces radiation exposure.
HDX WILL’s imaging reconstruction still allows superior image quality.
STANDARD PANO
16×9 cm FOV with Low Dose & AEC ON
CBCT FOV (Field of View) Size
Wide 16×9 cm FOV allows for the entire dentition, TMJ, Nose, Ear or Pediatric dental arch to be captured in one scan.
Various options are available from 3x3cm to 16x9cm FOV
16×9 cm
Dental Arch mode
16×9 cm
Nose / Ear Mode
10×8 cm
Child Mode
Dedicated 2D Panoramic X-ray
Auto Focus
Minimized distortion, Maximized ability to obtain clear images
Bitewings
Extraoral Bitewing options
TMJ
TMJ diagnostic x-ray
Low Dose Mode
Rapid scan time, Minimized dosage to patient
Auto Focus
Bitewings
TMJ
Cephalometric X-ray (Optional)
Various cephalometric x-ray options with auto landmark tracing feature*
*Auto Tracing – Available with Willceph software purchase
Eco-X Specifications
| Model | Panorama | Cephalo | CT | FOV (DxH) 16 x 9 cm | Free FOV | Model Scan |
|---|---|---|---|---|---|---|
| Eco-X | x | x | x | x | x | |
| Eco-X S | x | x (Scan type) | x | x | x | x |
| Mode | Normal | Low Dose | |||
|---|---|---|---|---|---|
| Scan Time (Adult) | CBCT | 24 s | 8 s or 12 s | ||
| PANO | Teeth | Full Arch | 14 s | 7 s | |
| Bitewings | 8 s | 6 s | |||
| Bitewing Right (or left) | 4 s | 3.2 s | |||
| TMJ | Open / Close (Capture Both) | 6 s | 3.2 s | ||
| Open / Close (Select One) | 3.2 s | 1.7 s | |||
| CEPH | Lateral Large Area | 8 s | 4 s | ||
| Lateral Small Area | 6 s | 3.2 s | |||
| Frontal(PA)/Carpus/Waters/SMV | 8 s | 4 s | |||
| Model Scan | 24s | ||||
|
Field of View (CT) (cm × cm) (Diam. × Height) |
16 × 9 or 12 × 9(Adult) 10 × 8(Child) Free FOV (Min. 3 × 3) |
|
| Voxel Size | 0.07, 0.10, 0.15, 0.20 | |
| Focal Spot (mm) | 0.5 | |
| Reconstruction Time | min. 10 s (standard recon, MAR off) | |
| Gray Scale | CT & Panorama | 16 bits |
| Scan-type Cephalo | 14 bits | |
| Tube Voltage | 60 kV to 90 kV | |
| Tube Current | 4 mA to 10 mA | |
| Patient Position | Standing (Wheelchair accessible) | |
| Detector Type | CT & Panorama | TFT: a-Si |
| Scan Type Cephalo | CMOS | |
| System Weight (Tolerance: 10 %) |
Eco-X: 178 kg / 392 lbs Eco-XS: 211 kg/ 465 lbs |
|
|
Dimensions mm × mm × mm (in × in × in) (W × D × H) (Tolerance: 5 %) |
Eco-X: 980 × 1225 × 2314 (38.6” × 48.3” × 91.1”) Eco-X S:1802 × 1225 × 2314 (71” × 48.3” × 91.1”) |
|
| Control Device |
Alignment : Touch Panel Exposure & Imaging Acquisition: Workstation |
|
| Patient Alignment |
Column: Electric motion Temple Support: Motion |
|
| Patient Position | Standing (Wheelchair accessible) | |
| Install | Standing | |

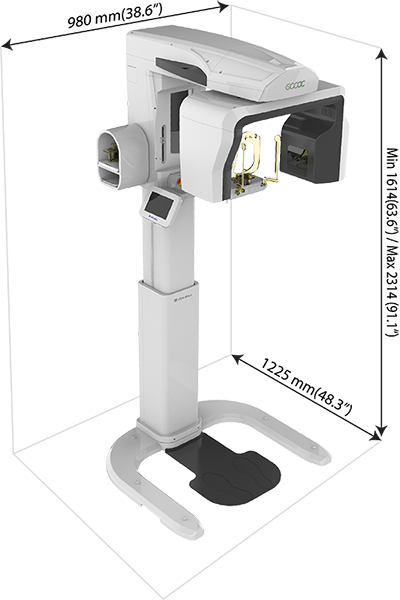

Product Dimensions
Eco-X
Eco-X S
