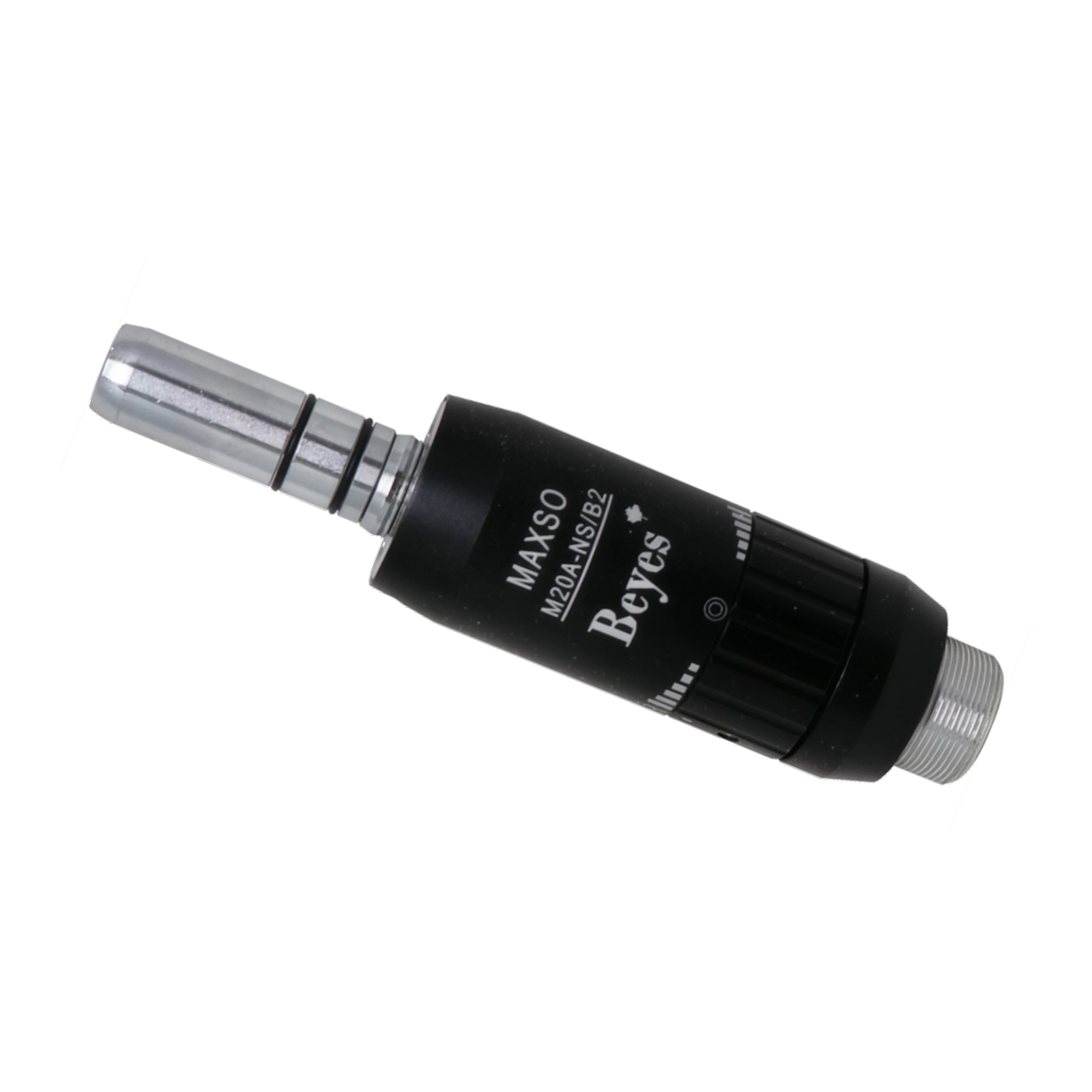

Maxso Air motor smart
The Beyes M20A Motor, available from All Practice Solutions, is part of the Maxso Smart System (No Water Spray) line and is built as a low-speed air motor with forward/reverse drive and continuous speed control across a 5,000–20,000 RPM range, giving the clinician fine control over cutting speed for a given procedure.
Choose options
Key Features
The M20A Motor offers efficient, powerful and constant torque with operational speeds up to 20,000 RPM. Its innovative fluid dynamics generate about twice as much torque compared to a conventional low speed motor in the 5,000–10,000 RPM range. The M20A Motor is comfortable to operate - it is lightweight, perfectly balanced and delivers smooth power control.
● Powerful torque even at a low speed
● Long working life
● Perfectly balanced, lightweight design
● Forward/reverse drive with continuous speed control
● Safe and easy double-lock connection
● Autoclavable for complete infection control
● Compatible with all standard ISO-type attachments
Key Specification
| Maximum speed | 5,000 rpm – 20,000 rpm |
| Air Pressure Range | 0.2-0.3 MPa |
| Exhaust Pressures Recommended | 0.07 MPa, max. *0.25 MPa |
| Recommended Air Pressure Range | 0.25 MPa |
| Water Pressure Range | 0.05-0.2 MPa |
| Usage Speed Range | 5,000-20,000 rpm |
| Air Flow (At 0.25MPa) | 46 NL/min |
| Stop Torque (At 0.25MPa) | 3.5 N cm |
Order Info
Code: MT2011
Model: M20A-NS/B2
Connection: Borden 2 Hole Connection
Description: Air Motor, No Spray, 20k
Code: MT2010
Model: M20A-NS/M4
Connection: Midwest 4 Hole Connection
Description: Air Motor, No Spray, 20k
