The Digital Solution you’ve been looking for!

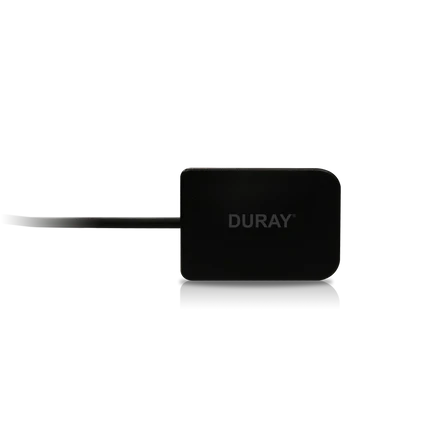

Introducing Duray Intraoral sensors – a durable, reliable, and affordable digital intraoral imaging solution. With just a 4.4mm profile and a theoretical resolution of 25 lp/mm, image quality is exceptional while ensuring easy positioning and maximum comfort for the patient. Installation is simple and straightforward with a plug-and-play design, and image processing specifications can be customized to meet your practice needs for enhanced diagnosis. Integrate Duray intraoral sensors seamlessly into your practice today and experience sharper, more detailed images with simplicity.
With an ultra-thin 4.4mm portfolio and ergonomically designed with rounded corners makes it easier than ever to position for bitewing images and offers maximum level of patient comfort.

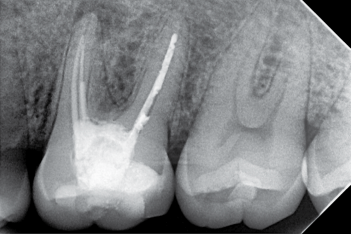

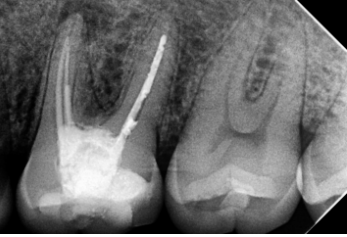

With a theoretical resolution of 25 lp/mm and through advanced CMOS technology, image quality is optimized and exceptional, and noise is reduced, producing crisp, detailed images for immediate review and diagnosis.
Made with premium materials and rigorously tested during production processes to ensure high-quality performance standards. Duray Sensor is waterproof with an IP68 rating and can be immersed in disinfectant liquids to prevent cross infections and enhance hygiene and safety. In addition, our sensor housing is designed to be shock-resistant to protect from shock, bites, and falls to ensure durability and long product life cycle.
Duray Sensor provides simple and easy-to-operate software with one-click smart installation and offers plug-and-play simplicity with high-speed USB 2.0 connection. Equipped with powerful image processing functions, so you can significantly and quickly improve the quality of radiographs.
| DURAY DS0 | DURAY DS1.5 | |
|---|---|---|
| Outer dimensions of the sensor (length x width x thickness) | 25 x 19 x 4.4 mm | 34 x 25 x 4.4 mm |
| Sensitive surface | 24 x 18 mm (432 mm2) | 33 x 24 mm (792 mm2) |
| Surface in pixels | 1200 x900 pixels | 1650 x 1200 pixels |
| Weight | 108g | 138g |
| Sensor technology | CMOS | CMOS |
| Sensor resolution | > 20 pl/mm | > 20 pl/mm |
| Sensor cable length | > 3 m | > 3 m |
| Grey levels | > 16 bits (16384 grey levels) | 16 bits (16384 grey levels) |
| Connetion (Standard USB) | USB 2.0 High-Speed (480Mbit/s) and USB 3.0. | |
| Physical pixel size | 20µm | 20µm |
| Measured resolution | 16 lp/mm | 16 lp/mm |
| Theoretical resolution | 25 lp/mm | 25 lp/mm |
| Warranty | 24 months | 24 months |
| DURAY DS1 | DURAY DS2 | |
|---|---|---|
| Outer dimensions of the sensor (length x width x thickness) | 31 x 21 x 4.4 mm | 37 x 27 x 4.4 mm |
| Sensitive surface | 30 x 20 mm (600 mm2) | 36 x 26 mm (936 mm2) |
| Surface in pixels | 1500 x1000 pixels | 1800 x 1300 pixels |
| Weight | 118g | 158g |
| Sensor technology | CMOS | CMOS |
| Sensor resolution | > 20 pl/mm | > 20 pl/mm |
| Sensor cable length | > 3 m | > 3 m |
| Grey levels | > 16 bits (16384 grey levels) | 16 bits (16384 grey levels) |
| Connetion (Standard USB) | USB 2.0 High-Speed (480Mbit/s) and USB 3.0. | |
| Physical pixel size | 20µm | 20µm |
| Measured resolution | 16 lp/mm | 16 lp/mm |
| Theoretical resolution | 25 lp/mm | 25 lp/mm |
| Warranty | 24 months | 24 months |
