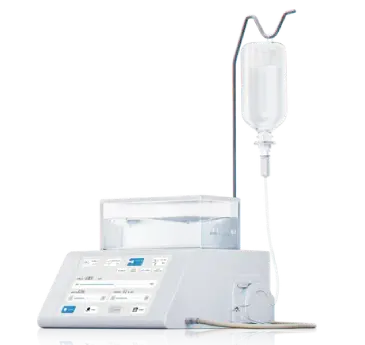

Model | ES70 |
Main system size | Length 260mm * width 240mm * height 110mm |
Input voltage | 220VAC |
Allowed voltage fluctuation | ±10％ |
Rated current | 0.1A-0.8A |
Supply frequencies | 50Hz/60Hz |
Power fuse | 2*250V-T1.6AH |
power consumption | 180VA |
Motor rated working voltage | DC32V |
Motor rotation mode | forward/reverse rotation |
Motor rotation speed | 0 r/min～40,000 r/min |
Size of motor | Ф21.7mm×height70.5mm |
Sterilization method | High temperature and high pressure steam sterilization at 134° for 5 minutes |
Hanging maximum allowed load | ≦1.5KG |

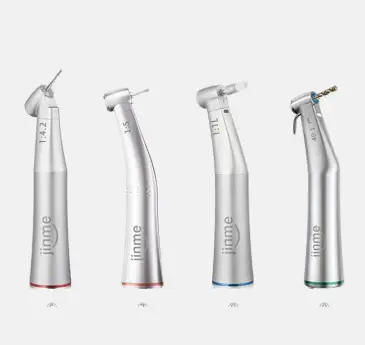

Programme | Sub-item | Corresponding connected handpiece model | Motor rotation speed |

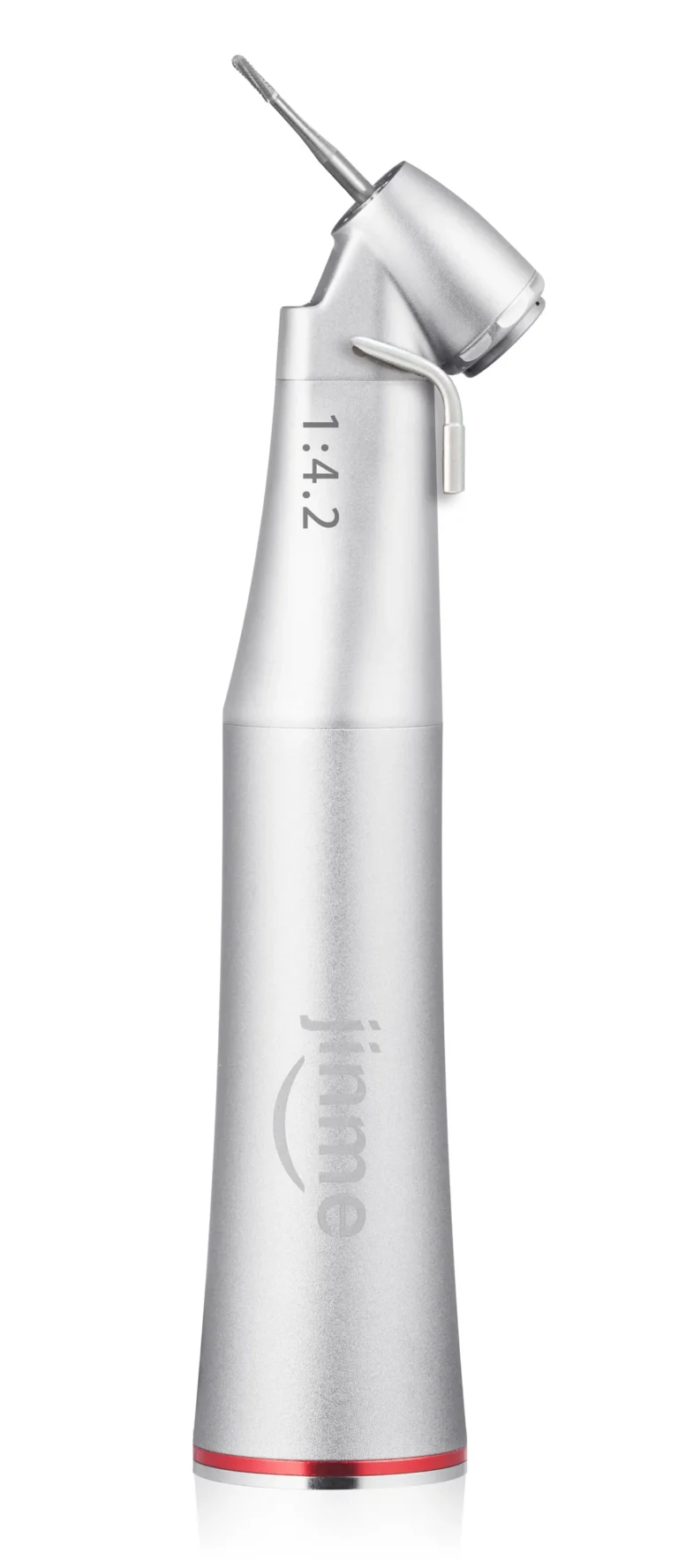

Minimally invasive tooth extraction | Aseptic tooth extraction | W142LW | 0～168000 r/min |
Electric high speed | Crown breaking Tooth preparation Pulp opening Pulp chamber repairing Denture restoration | W15LW | 0～200000 r/min |

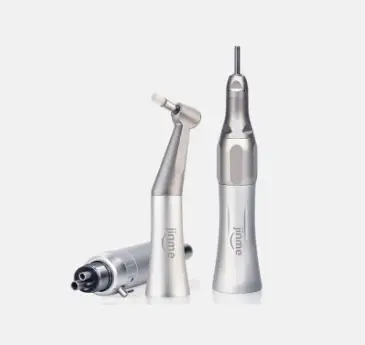

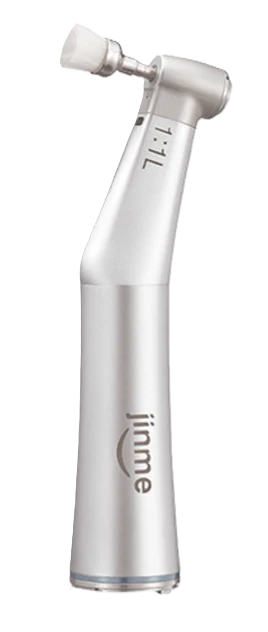

Electric low speed | Polishing Caries removal Restoration Cavity preparation | W11L | 0～40000 r/min |

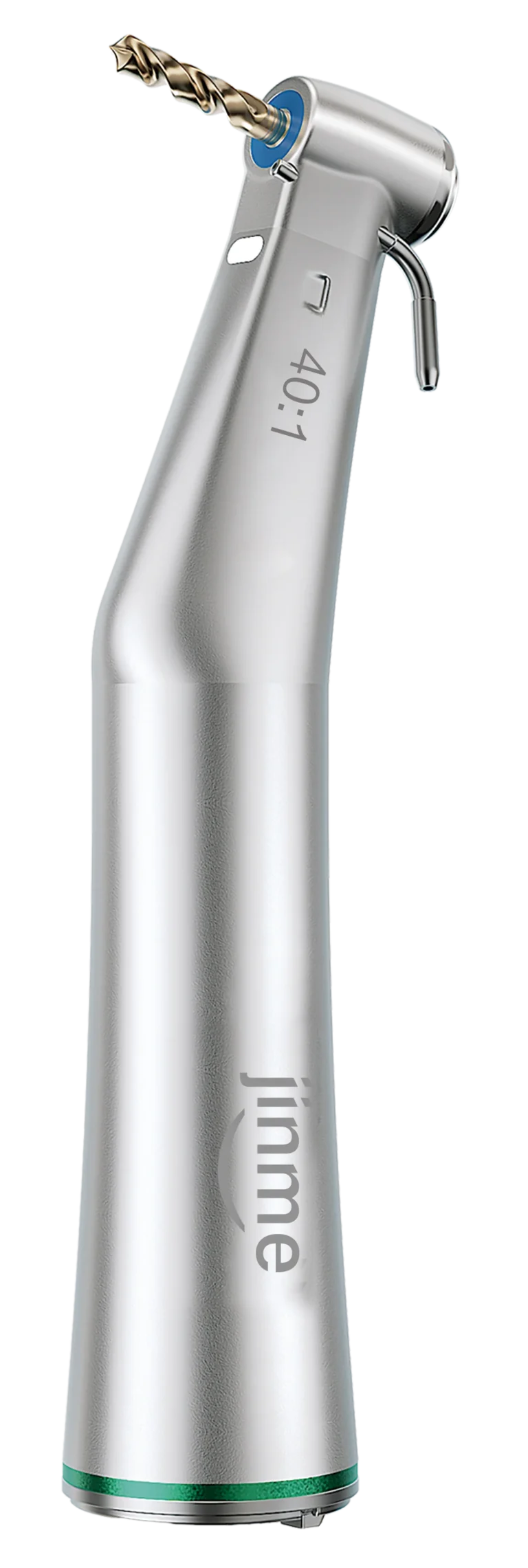

Implant | Locating Guiding Reaming Tapping Implanting | W401LW | 15 r/min 0～1000 r/min |
