Description

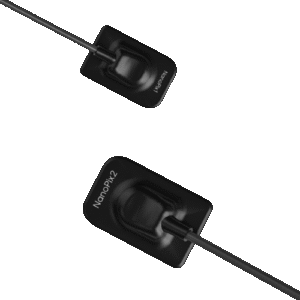

DIGITAL INTRAORAL IMAGE SENSOR
FEATURES
Image Quality
- Less graininess – Enhanced image
- Contrast resolution – Best at the penny test
- Spatial Resolution – 19-micron pixel size
Patient Comfort
- Ergonomic Design with round corners – 6.0mm radius
- Thin Sensor Plate – 5.4mm (less than 1/4″)
- Low Profile Button – 6.0mm
Designed for Durability
- Thinner Cord – Direct USB from sensor plate to computer
- Sturdier Cord Jacket – Fewer wires enables greater protection
- Protected Against Fluids / Contaminants – Sealed Cord / sensor junction
- Repair option – Cord serviceability
Ergonomic Design
- Broad Range of Acceptable Exposure – Superior electronic gain control
- Snag-Resistant Cord – No interface box or cord bulge
- Easy Cleaning – Immiscible in glutaraldehyde and other disinfectants
*Optional USB Extension cable (16ft) available
SPECIFICATIONS
Parameter |
IoDS-2401 |
IoDS-2402 |
|---|---|---|
Dimension(mm)
| 39 x 25 | 42 x 30 |
Image Size (mm) | 30 x 20 | 34 x 26 |
Image Resolution (lp/mm | 25 | 25 |
Pixel Size (μm) | 20 | 20 |
Pixel Pitch (μm) | 20 | 20 |
Total Pixels (px) | 1.5M | 2.2M |
Effective Pixels (px) | 1000 x 1500 | 1300 x 1700 |
Sensor technology | CMOS with Optical Fiber | CMOS with Optical Fiber |
Scintillator | Csl (Tl) | Csl (Tl) |
Interface | USB 2.0 high speed | USB 2.0 high speed |
Frame rate (fps) | 1.4 | 1 |
Cord Length (ft) | 6.5 | 6.5 |
